EB12D A (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1099999) FUEL TANK Parts Diagram

Generator, Made in Japan

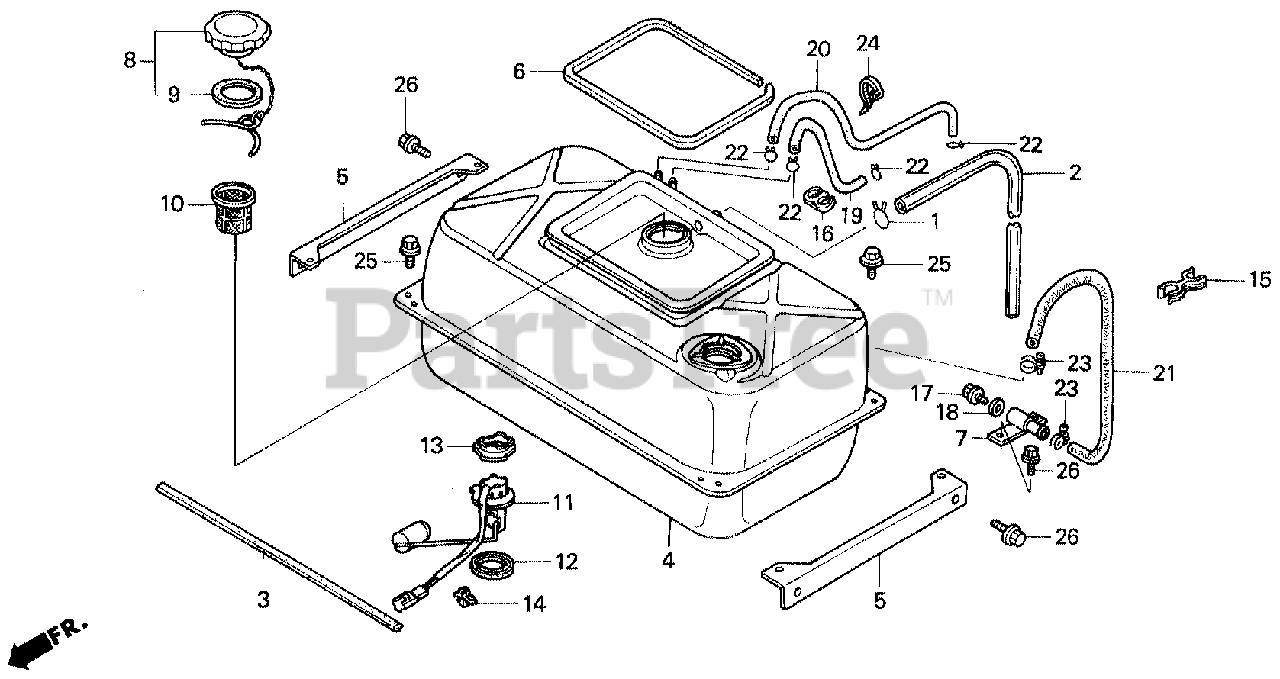

FUEL TANK Parts Diagram

  • Title
1

Honda 15772-551-000

CLIP, BREATHER TUBE

$2.99

$

In Stock, Qty 5

0

2

Honda 16855-ZC6-000

TUBE, FUEL DRIP VINYL

$60.99

$

Usually ships in 3-6 days

0

3

Honda 17503-GE2-760

RUBBER A, FUEL TANK (UPPER)

$23.99

$

Usually ships in 3-6 days

0

4

Honda 17510-ZC6-000ZA

TANK, FUEL *B132* (JOHN BLUE)

$

$

Not available

5

Honda 17515-ZC6-000

PROTECTOR, R. FUEL TANK

$51.99

$

Usually ships in 3-6 days

0

6

Honda 17529-ZC6-000

SEAL, FUEL TANK TRAY

$7.99

$

Usually ships in 3-6 days

0

7

Honda 17588-ZC6-000

PLUG, FUEL DRAIN

$53.99

$

Usually ships in 3-6 days

0

8

Honda 17620-ZC6-003

CAP, FUEL FILLER

$

$

Not available

9

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$8.49

$

In Stock, only 2 left!

0

10

Honda 17672-899-000

FILTER, FUEL

$18.99

$

In Stock, only 3 left!

0

11

Honda 37800-ZC6-003

UNIT, FUEL

$60.99

$

Usually ships in 3-6 days

0

12

Honda 37801-GA7-700

GASKET, BASE

$7.49

$

Usually ships in 3-6 days

0

13

Honda 37802-GA7-700

RETAINER, FUEL UNIT

$7.49

$

Usually ships in 3-6 days

0

14

Honda 90623-SB0-003

CLIP, WIRE HARNESS (8MM) *NH1* (BLACK)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 90655-ZC6-003

HOLDER, FUEL TUBE

$6.99

$

Usually ships in 3-6 days

0

16

Honda 90658-ZA0-930

CLIP, IGNITION WIRE

$3.49

$

Usually ships in 3-6 days

0

17

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

18

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

19

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X290)

$54.99

$

In Stock, only 1 left!

0

20

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X580)

$54.99

$

In Stock, only 1 left!

0

21

Honda 95001-75003-50M

BULK HOSE, FUEL (7.5X3000) (7.3X490)

$151.99

$

Usually ships in 3-6 days

0

22

Honda 95002-40800-08

CLIP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0

23

Honda 95002-41300-08

CLIP, TUBE (D13)

$4.49

$

Usually ships in 3-6 days

0

24

Honda 95014-62100

BAND B1, CABLE

$2.49

$

In Stock, Qty 5

0

25

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

26

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
