EB12D A (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1099999) FUEL INJECTION PUMP Parts Diagram

Generator, Made in Japan

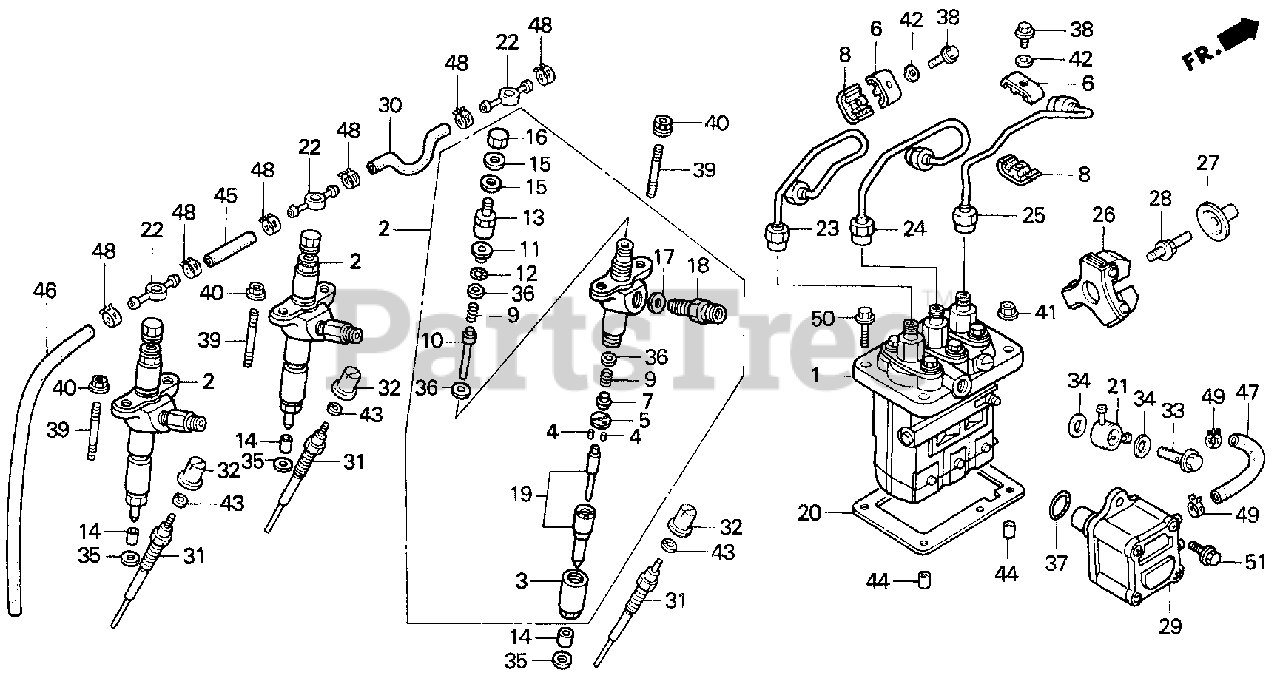

FUEL INJECTION PUMP Parts Diagram

  • Title

1

Honda 16300-ZG5-013

PUMP ASSY., FUEL INJECTION

$1379.99

$

Usually ships in 3-6 days

0

2

Honda 16410-ZG5-033

SEE PART DETAILS - PRI; NOZZLE & HOLDER ASSY.

$

$

Not available

3

Honda 16413-ZG3-003

NUT, RETAINING

$43.99

$

Usually ships in 3-6 days

0

4

Honda 16414-ZG3-003

PIN (1.78X9.3)

$4.99

$

Usually ships in 3-6 days

0

5

Honda 16415-ZG3-003

SPACER

$35.99

$

Usually ships in 3-6 days

0

6

Honda 16415-ZG5-000

HOLDER, FUEL PIPE (A)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 16416-ZG3-003

SEAT, SPRING (A)

$34.99

$

Usually ships in 3-6 days

0

8

Honda 16416-ZG5-000

HOLDER, FUEL PIPE (B)

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16417-ZG3-003

SPRING, NOZZLE

$14.99

$

Usually ships in 3-6 days

0

10

Honda 16418-ZG3-003

ROD, PUSH

$20.99

$

Usually ships in 3-6 days

0

11

Honda 16419-ZG3-003

SEAT, SPRING (B)

$34.99

$

Usually ships in 3-6 days

0

12

Honda 16421-ZG3-003

O-RING

$32.99

$

Usually ships in 3-6 days

0

13

Honda 16422-ZG3-003

NUT, CAP

$13.99

$

Usually ships in 3-6 days

0

14

Honda 16422-ZG5-000

COLLAR, NOZZLE

$7.49

$

Usually ships in 3-6 days

0

15

Honda 16423-ZG3-003

GASKET A

$1.99

$

Usually ships in 3-6 days

0

16

Honda 16424-ZG3-003

NUT

$8.99

$

Usually ships in 3-6 days

0

17

Honda 16425-ZG3-003

GASKET B

$1.99

$

Usually ships in 3-6 days

0

18

Honda 16426-ZG3-003

CONNECTOR, IN.

$37.99

$

Usually ships in 3-6 days

0

19

Honda 16431-ZG5-023

NOZZLE

$

$

Not available

20

Honda 16441-ZG5-000

GASKET A, FUEL INJECTION PUMP (0.5)

$

$

Not available

20

Honda 16442-ZG5-000

GASKET B, FUEL INJECTION PUMP (0.3)

$

$

Not available

20

Honda 16443-ZG5-000

GASKET C, FUEL INJECTION PUMP (0.1)

$

$

Not available

21

Honda 16448-ZG5-000

JOINT, INJECTION PUMP

$

$

Not available

22

Honda 16449-ZG5-000

JOINT, FUEL

$15.99

$

Usually ships in 3-6 days

0

23

Honda 16455-ZG5-000

PIPE, FUEL (A)

$

$

Not available

24

Honda 16456-ZG5-000

PIPE, FUEL (B)

$

$

Not available

25

Honda 16457-ZG5-000

PIPE, FUEL (C)

$

$

Not available

26

Honda 16510-ZG5-000

WEIGHT, GOVERNOR

$73.99

$

Usually ships in 3-6 days

0

27

Honda 16531-ZG5-013

SLIDER, GOVERNOR

$39.99

$

Usually ships in 3-6 days

0

28

Honda 16532-ZG5-000

SHAFT, GOVERNOR

$13.99

$

Usually ships in 3-6 days

0

29

Honda 16700-ZG5-023

SEE PART DETAILS - SUP; PUMP ASSY., FUEL
(Superseded to 16700-ZG5-053)

$

$

Not available

30

Honda 16851-ZG5-000

TUBE, FUEL

$

$

Not available

31

Honda 31812-ZG5-003

PLUG, GLOW

$

$

Not available

32

Honda 31815-ZG5-003

NUT, GLOW PLUG

$

$

Not available

33

Honda 90026-ZG5-000

BOLT, FUEL JOINT

$

$

Not available

34

Honda 90418-ZG3-000

WASHER, FUEL JOINT

$4.49

$

Usually ships in 3-6 days

0

35

Honda 90453-ZG3-000

GASKET, NOZZLE

$2.99

$

Usually ships in 3-6 days

0

36

Honda 90460-ZG3-003

SHIM A (0.50)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90461-ZG3-003

SHIM B (0.51)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90462-ZG3-003

SHIM C (0.52)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90463-ZG3-003

SHIM D (0.53)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90464-ZG3-003

SHIM E (0.54)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90465-ZG3-003

SHIM F (0.55)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90466-ZG3-003

SHIM G (0.56)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90467-ZG3-003

SHIM H (0.57)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90468-ZG3-003

SHIM I (0.58)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90469-ZG3-003

SHIM J (0.59)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90470-ZG3-003

SHIM K (0.60)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90471-ZG3-003

SHIM L (0.70)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90472-ZG3-003

SHIM M (0.80)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90473-ZG3-003

SHIM N (0.90)

$8.49

$

Usually ships in 3-6 days

0

37

Honda 91310-KE8-003

O-RING (21.5X2) (ARAI)

$2.99

$

In Stock, only 4 left!

0

38

Honda 92301-04018-0A

BOLT, RECESSED (4X18)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 92900-06032-0E

BOLT 2, STUD (6X32)

$3.49

$

Usually ships in 3-6 days

0

40

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

41

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

42

Honda 94103-04000

WASHER, PLAIN (4MM)

$0.99

$

In Stock, Qty 7

0

43

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 94303-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

45

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X73)

$54.99

$

In Stock, only 4 left!

0

46

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X220)

$54.99

$

In Stock, only 4 left!

0

47

Honda 95001-75003-50M

BULK HOSE, FUEL (7.5X3000) (7.3X190)

$151.99

$

Usually ships in 3-6 days

0

48

Honda 95002-40800-08

CLIP, TUBE (D8)

$2.99

$

In Stock, Qty 6

0

49

Honda 95002-41250-08

CLIP, TUBE (D12.5)

$3.49

$

Usually ships in 3-6 days

0

50

Honda 95701-08022-08

BOLT, FLANGE (8X22)

$2.99

$

In Stock, only 3 left!

0

51

Honda 96001-06018-00

BOLT, FLANGE (6X18)

$2.49

$

Usually ships in 3-6 days

0
