EB11000 K1 AN (EZGT) - Honda Generator, Made in Japan (SN: EZGT-1010001 - EZGT-9999999) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

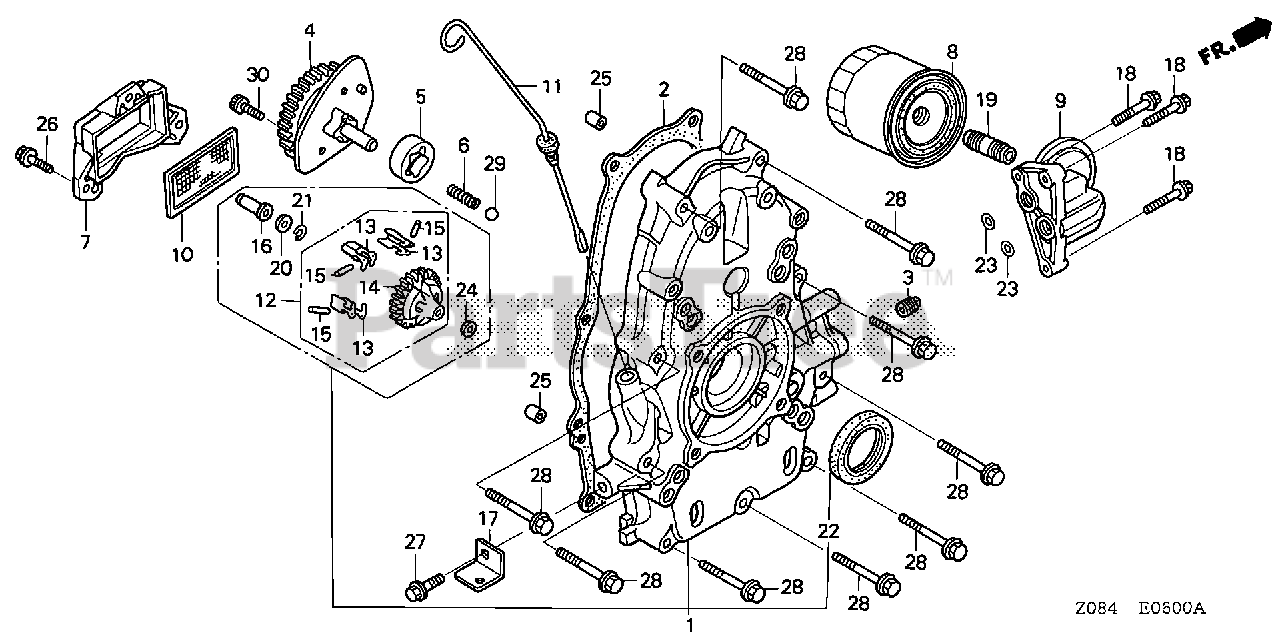

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZJ1-853

COVER ASSY., CRANKCASE

$555.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZJ1-840

GASKET, CASE COVER

$24.99

$

In Stock, only 1 left!

0

3

Honda 12105-ZA0-701

BOLT, SEALING

$9.99

$

Usually ships in 3-6 days

0

4

Honda 15120-ZJ1-010

COVER ASSY., OIL PUMP (THREE BOLTS)

$76.99

$

In Stock, only 1 left!

0

5

Honda 15124-ZJ1-003

ROTOR, OIL PUMP (OUTER)

$27.99

$

Usually ships in 3-6 days

0

6

Honda 15232-ZJ1-000

SPRING, RELIEF VALVE

$3.49

$

In Stock, only 1 left!

0

7

Honda 15348-ZJ1-840

COVER, OIL FILTER

$18.99

$

Usually ships in 3-6 days

0

8

Honda 15400-PLM-A01PE

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$14.99

$

In Stock, Qty 15

0

8

Honda 15400-P0H-305PE

SEE PART DETAILS - SUP; FILTER, OIL (SOLD INDIVIDUALLY)

$

$

Not available

8

Honda 15400-ZJ1-004

SEE PART DETAILS - SUP; FILTER, OIL (TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$14.99

$

In Stock, Qty 15

0

9

Honda 15411-ZJ1-840

BASE, OIL FILTER

$159.99

$

Usually ships in 3-6 days

0

10

Honda 15427-ZJ1-000

SCREEN, OIL FILTER

$14.99

$

Usually ships in 3-6 days

0

11

Honda 15655-ZJ1-861

SEE PART DETAILS - PRI; DIPSTICK, OIL

$16.99

$

In Stock, only 1 left!

0

12

Honda 16510-ZJ1-840

GOVERNOR ASSY.

$30.99

$

Usually ships in 3-6 days

0

13

Honda 16511-ZJ1-840

WEIGHT, GOVERNOR

$6.99

$

Usually ships in 3-6 days

0

14

Honda 16512-ZJ1-840

HOLDER, GOVERNOR WEIGHT

$

$

Not available

15

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

16

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

17

Honda 32104-ZJ1-D00

BRACKET, WIRE HARNESS CLIP (B)

$6.49

$

Usually ships in 3-6 days

0

18

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, Qty 8

0

19

Honda 90018-PN3-000

HOLDER, OIL FILTER

$9.99

$

In Stock, only 1 left!

0

20

Honda 90473-147-000

WASHER (6X16)

$1.99

$

In Stock, only 1 left!

0

21

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

22

Honda 91202-ZJ1-841

OIL SEAL (38X58X9)

$11.99

$

In Stock, Qty 7

0

23

Honda 91302-ZE9-003

O-RING (11.8X2.4)

$3.49

$

Usually ships in 3-6 days

0

24

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

25

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

26

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 6

0

27

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

28

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0

29

Honda 96211-12000

BALL, STEEL (#12) (3/8)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 96600-06016-00

BOLT, SOCKET (6X16)

$2.49

$

Usually ships in 3-6 days

0
