EB11000 K1 A (EZGT) - Honda Generator, Made in Japan (SN: EZGT-1000001 - EZGT-1009999) FRAME Parts Diagram

Generator, Made in Japan

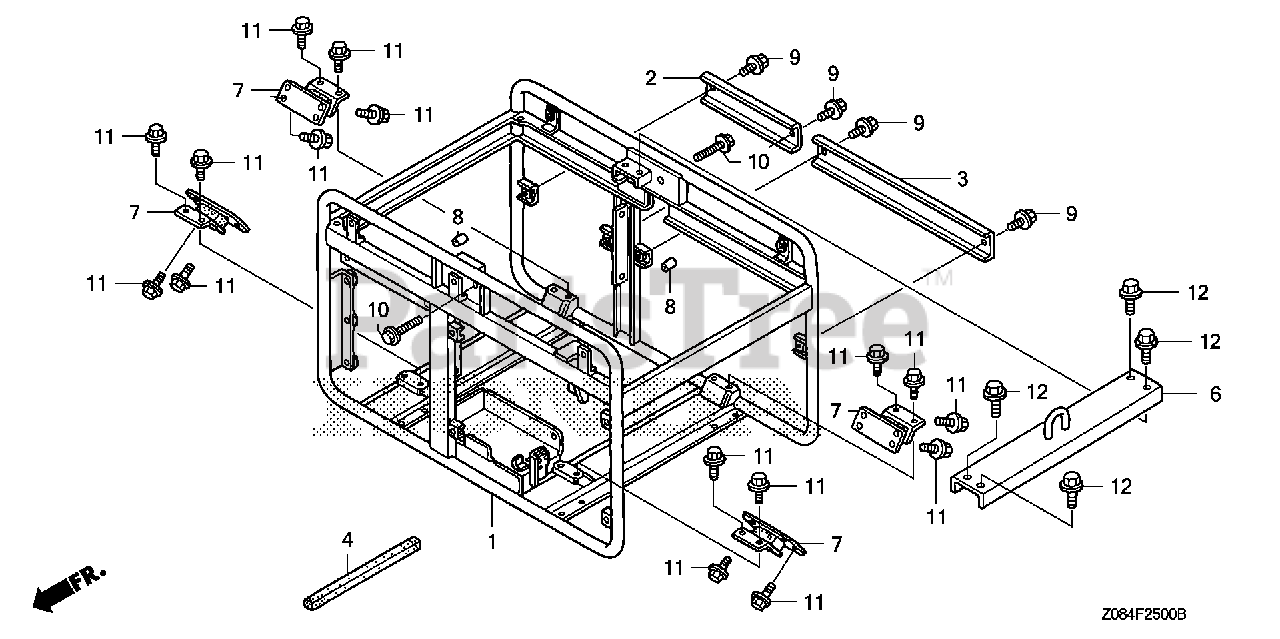

FRAME Parts Diagram

  • Title

1

Honda 50310-Z08-E31ZA

FRAME *NH105* (MAT BLACK)

$1807.99

$

Usually ships in 3-6 days

0

2

Honda 50316-Z08-E31ZA

CHANNEL, RR. *NH105* (A) (MAT BLACK)

$59.99

$

Usually ships in 3-6 days

0

3

Honda 50317-Z08-E31ZA

CHANNEL, RR. *NH105* (B) (MAT BLACK)

$79.99

$

Usually ships in 3-6 days

0

4

Honda 63147-Z08-E31

SEAL, COVER (UPPER)

$7.49

$

Usually ships in 3-6 days

0

6

Honda 63570-Z08-E31ZA

BEAM *NH105* (MAT BLACK)

$247.99

$

Usually ships in 3-6 days

0

7

Honda 68327-ZC6-000

RUBBER, GENERATOR (LOWER)

$97.99

$

Usually ships in 3-6 days

0

8

Honda 91551-Z08-E31

COLLAR, SPACER

$2.99

$

Usually ships in 3-6 days

0

9

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

10

Honda 90101-Z08-003

BOLT, FLANGE (6X30)

Note: Use from Frame SN 1000036.

$1.99

$

Usually ships in 3-6 days

0

10

Honda 95701-06030-08

BOLT, FLANGE (6X30)

Note: Use up to Frame SN 1000035.

$2.99

$

Usually ships in 3-6 days

0

11

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

12

Honda 95701-12025-07

BOLT, FLANGE (12X25)

$3.49

$

Usually ships in 3-6 days

0
