EB11000 K1 A (EZGT) - Honda Generator, Made in Japan (SN: EZGT-1000001 - EZGT-1009999) CYLINDER Parts Diagram

Generator, Made in Japan

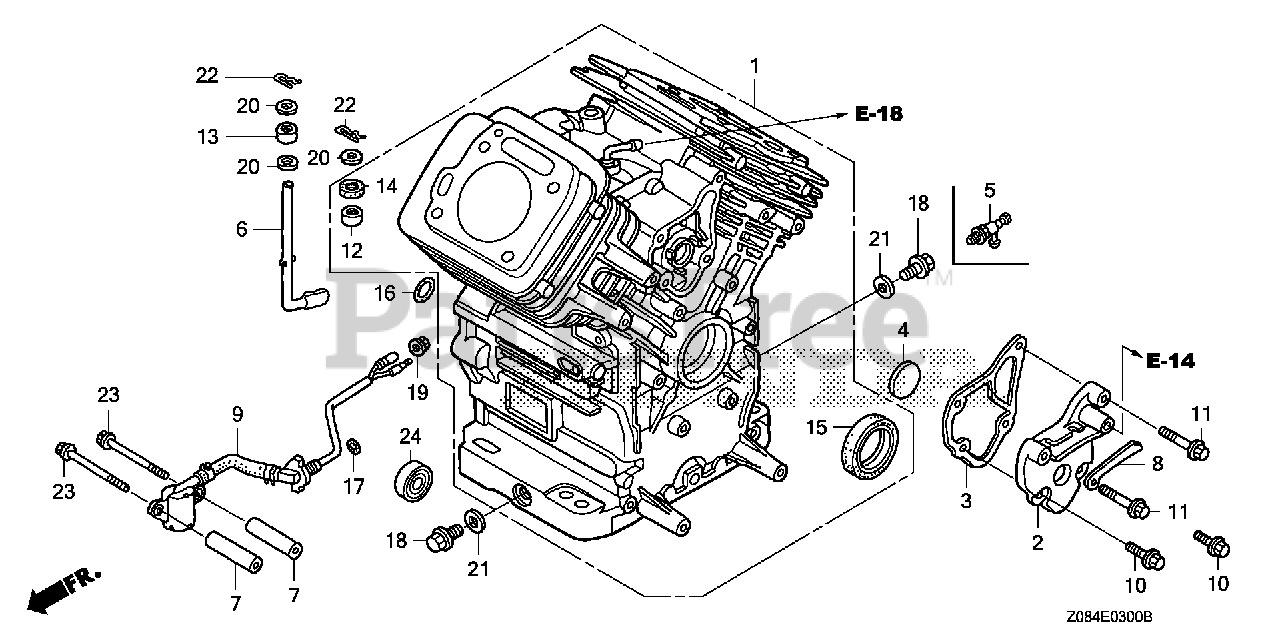

CYLINDER Parts Diagram

  • Title
1

Honda 12000-ZJ1-416

CYLINDER ASSY.

$1894.99

$

Usually ships in 3-6 days

0

2

Honda 12356-ZJ1-000

COVER, BREATHER

$31.99

$

Usually ships in 3-6 days

0

3

Honda 12358-ZJ1-000

GASKET, BREATHER COVER

$11.99

$

In Stock, only 1 left!

0

4

Honda 12372-ZE2-300

VALVE, BREATHER

$3.99

$

In Stock, Qty 5

0

5

Honda 15558-ZJ1-010AH

VALVE, DRAIN (14X1.5)

Note: (Optional).

$29.99

$

Usually ships in 3-6 days

0

6

Honda 16541-ZJ1-840

SHAFT, GOVERNOR ARM

$44.99

$

Usually ships in 3-6 days

0

7

Honda 25523-VD6-010

COLLAR, FILTER SETTING

$8.99

$

Usually ships in 3-6 days

0

8

Honda 31511-ZJ1-000

CLAMP, WIRE

$4.49

$

Usually ships in 3-6 days

0

9

Honda 35480-ZJ1-842

SWITCH ASSY., OIL LEVEL

$61.99

$

Usually ships in 3-6 days

0

10

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90031-ZE1-000

BOLT, FLANGE (6X32) (CT200)

$3.99

$

In Stock, only 2 left!

0

12

Honda 91001-ZJ1-841

BEARING, NEEDLE (8X12.7X11.1)

$8.99

$

Usually ships in 3-6 days

0

13

Honda 91002-ZJ1-841

BEARING, NEEDLE (8X12X10)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

15

Honda 91201-ZJ1-841

OIL SEAL (38X58X9)

$11.99

$

In Stock, only 1 left!

0

16

Honda 91302-MB6-830

O-RING (13X3.0)

$2.49

$

In Stock, only 1 left!

0

17

Honda 91353-671-003

O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 20+

0

17

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

18

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

$5.99

$

Usually ships in 3-6 days

0

19

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

20

Honda 94102-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 9

0

21

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

22

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

23

Honda 95701-06075-09

BOLT, FLANGE (6X75)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 96140-60030-10

BEARING, RADIAL BALL (6003)

$19.99

$

Usually ships in 3-6 days

0
