EB11000 K1 A (EZGT) - Honda Generator, Made in Japan (SN: EZGT-1000001 - EZGT-1009999) CONTROL BOX Parts Diagram

Generator, Made in Japan

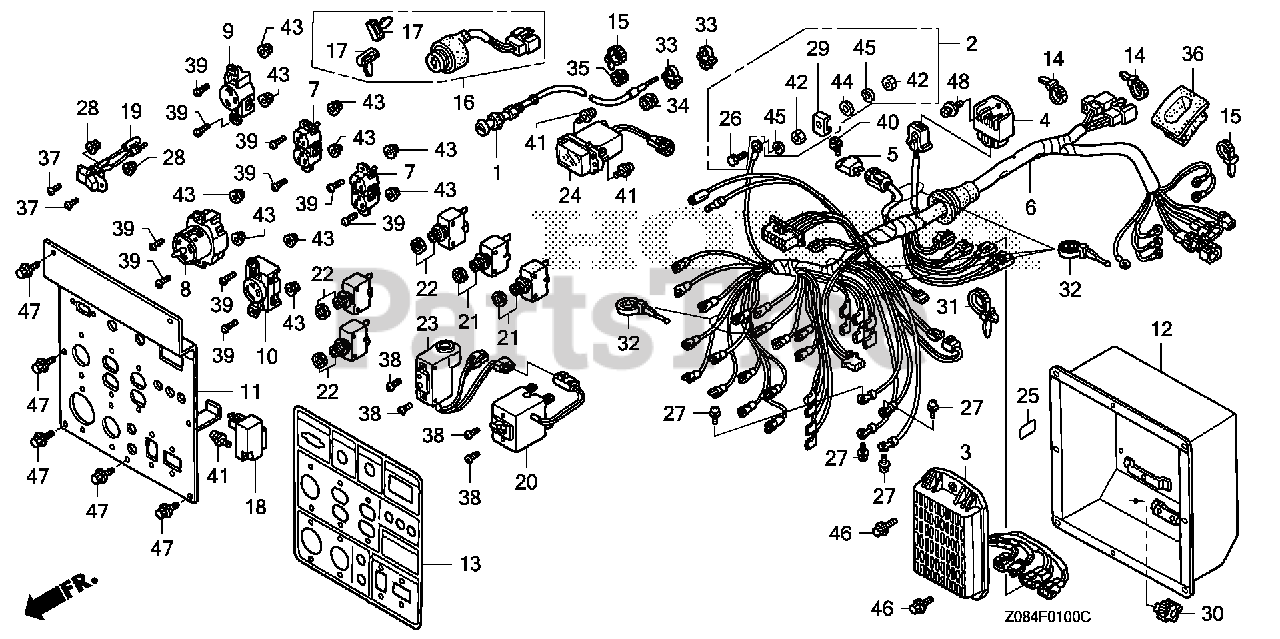

CONTROL BOX Parts Diagram

  • Title

1

Honda 17950-Z08-E31

CABLE, CHOKE

$32.99

$

Usually ships in 3-6 days

0

2

Honda 31428-899-840

TERMINAL SET, GROUND

$24.99

$

Usually ships in 3-6 days

0

3

Honda 31700-Z08-E31

A.V.R. ASSY.

$1236.99

$

Usually ships in 3-6 days

0

4

Honda 31710-ZS9-A02

SEE PART DETAILS - PRI; RECTIFIER ASSY.

$26.99

$

In Stock, only 1 left!

0

5

Honda 31720-ZA8-013

SEE PART DETAILS - PRI; DIODE, D.C.
(Superseded to 31720-ZA8-V00)

$48.99

$

Usually ships in 3-6 days

0

6

Honda 32150-Z08-E31

WIRE HARNESS ASSY., CONTROL

$534.99

$

Usually ships in 3-6 days

0

7

Honda 32330-ZA1-631

RECEPTACLE (20A/125V) (MATSUSHITA)
(Superseded to 32330-Z03-C31)

$52.99

$

In Stock, only 1 left!

0

8

Honda 32331-ZC6-630

RECEPTACLE (50A/125-250V)

$145.99

$

Usually ships in 3-6 days

0

9

Honda 32332-880-710

RECEPTACLE (30A/125V)
(Superseded to 32332-ZB4-630)

$48.99

$

In Stock, only 1 left!

0

10

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$

$

Not available

11

Honda 32345-Z08-E31ZA

PANEL, CONTROL *NH105* (MAT BLACK)

$321.99

$

Usually ships in 3-6 days

0

12

Honda 32350-Z08-E31ZA

COVER, CONTROL BOX *NH105* (MAT BLACK)

$417.99

$

Usually ships in 3-6 days

0

13

Honda 32366-Z08-E31

MARK, PANEL

$219.99

$

Usually ships in 3-6 days

0

14

Honda 32901-Z08-E31

TIE, CABLE

$1.99

$

Usually ships in 3-6 days

0

15

Honda 32903-ZC8-N01

TIE, CABLE (C)

Note: Use up to Frame SN 1000035.

$1.99

$

Usually ships in 3-6 days

0

15

Honda 32903-ZC8-N01

TIE, CABLE (C)

Note: Use from Frame SN 1000036.

$1.99

$

Usually ships in 3-6 days

0

16

Honda 35100-ZA0-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

$119.99

$

Usually ships in 3-6 days

0

17

Honda 35111-880-013

KEY (HONDALOCK)

$11.99

$

In Stock, only 3 left!

0

18

Honda 36210-ZB4-014

SEE PART DETAILS - PRI; THROTTLE UNIT, AUTO (SAWAFUJI)

$267.99

$

Usually ships in 3-6 days

0

19

Honda 36214-ZB4-013

SEE PART DETAILS - PRI; SWITCH, AUTO THROTTLE
(Superseded to 36214-ZB4-023)

$42.99

$

Usually ships in 3-6 days

0

20

Honda 38220-Z08-E31

BREAKER, CIRCUIT (41A)

$243.99

$

Usually ships in 3-6 days

0

21

Honda 38240-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (20A)
(Superseded to 38240-ZC6-E31)

$83.99

$

Usually ships in 3-6 days

0

21

Honda 38240-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$83.99

$

Usually ships in 3-6 days

0

22

Honda 38241-ZC6-E31

PROTECTOR, CIRCUIT (30A)

$83.99

$

Usually ships in 3-6 days

0

23

Honda 38540-ZC2-E31

RELAY ASSY. (GFCI)

$397.99

$

In Stock, only 1 left!

0

24

Honda 39700-ZC6-003

METER ASSY., HOUR

$344.99

$

Usually ships in 3-6 days

0

25

Honda 87534-ZB3-740

MARK, GRAND

$2.49

$

Usually ships in 3-6 days

0

26

Honda 90011-899-840

BOLT, HEX. (6X28)

$4.99

$

Usually ships in 3-6 days

0

27

Honda 90103-Z08-E30

SCREW-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 90201-ZB4-003

NUT, FLANGE (3MM)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

In Stock, only 1 left!

0

30

Honda 90659-735-921

CLIP, CORD

$3.49

$

Usually ships in 3-6 days

0

31

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$6.49

$

Usually ships in 3-6 days

0

32

Honda 90672-ZB7-811

TIE, CABLE (NATURAL 154X3.4)

$4.99

$

Usually ships in 3-6 days

0

33

Honda 90682-ZE1-000

CLIP, CORD

$3.49

$

Usually ships in 3-6 days

0

34

Honda 90852-898-000

RUBBER, CONTROL BOX

$5.49

$

In Stock, only 2 left!

0

35

Honda 91651-Z08-E31

GROMMET, CHOKE CABLE

$4.99

$

Usually ships in 3-6 days

0

36

Honda 91652-Z08-E31

GROMMET, CONTROL WIRE HARNESS

$17.99

$

Usually ships in 3-6 days

0

37

Honda 93500-03006-0G

SCREW, PAN (3X6)

$0.99

$

In Stock, only 3 left!

0

38

Honda 93500-04006-0G

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 6

0

39

Honda 93500-04012-0G

SCREW, PAN (4X12)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 93893-05012-08

SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 93893-05016-08

SCREW-WASHER (5X16)

$1.99

$

Usually ships in 3-6 days

0

42

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

43

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

44

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

45

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

46

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

47

Honda 96001-06012-07

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

48

Honda 90104-Z08-E31

BOLT-WASHER (6X15)

$2.49

$

Usually ships in 3-6 days

0
