EB11000 K1 A/A (EZGT) - Honda Generator, Made in Japan (SN: EZGT-1010001 - EZGT-9999999) CONTROL Parts Diagram

Generator, Made in Japan

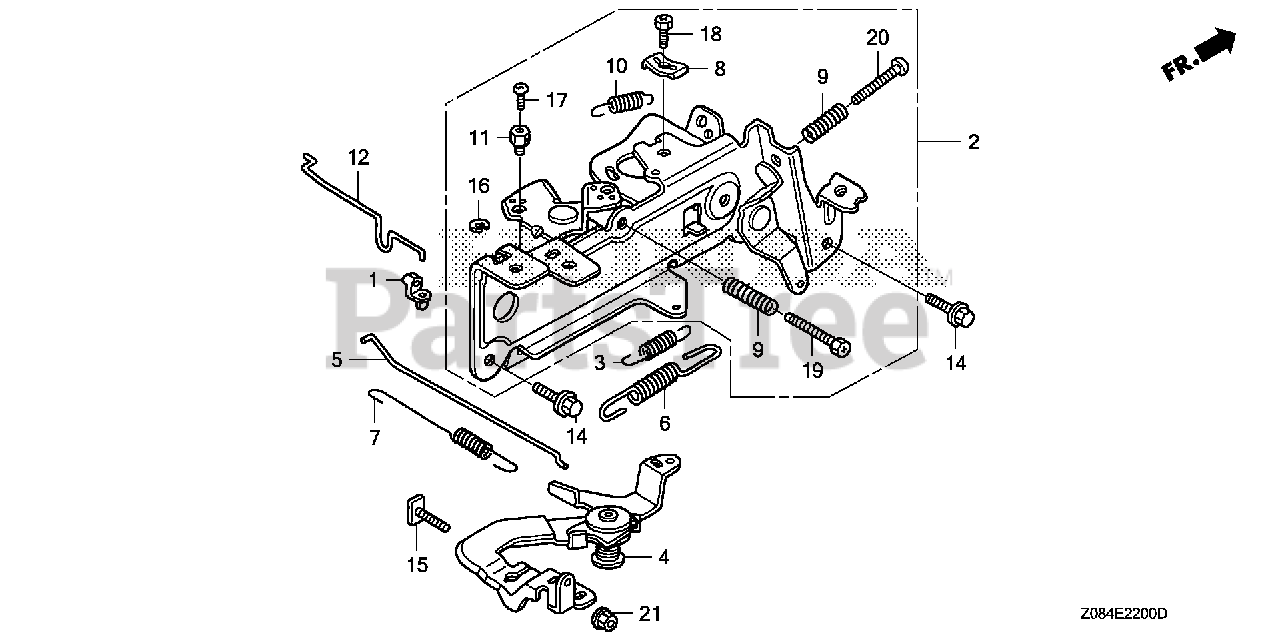

CONTROL Parts Diagram

  • Title

1

Honda 16263-883-W10

JOINT, ROD

$1.49

$

Usually ships in 3-6 days

0

2

Honda 16500-ZJ1-900

CONTROL ASSY. (AUTO THROTTLE)

$101.99

$

Usually ships in 3-6 days

0

3

Honda 16534-ZJ1-840

SPRING, STARTER

$2.49

$

In Stock, only 2 left!

0

4

Honda 16550-ZJ1-842

SEE PART DETAILS - PRI; ARM, GOVERNOR

$38.99

$

Usually ships in 3-6 days

0

5

Honda 16555-ZJ1-840

ROD, GOVERNOR

$4.99

$

In Stock, only 2 left!

0

6

Honda 16561-ZJ1-850

SPRING, GOVERNOR (MANUAL)

$4.99

$

In Stock, only 1 left!

0

7

Honda 16562-ZJ1-840

SPRING, THROTTLE RETURN

$3.99

$

In Stock, only 2 left!

0

8

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

Usually ships in 3-6 days

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

10

Honda 16592-ZJ1-000

SPRING, CABLE RETURN

$2.49

$

In Stock, only 2 left!

0

11

Honda 16594-883-010

HOLDER, WIRE

$8.99

$

In Stock, only 3 left!

0

12

Honda 16611-ZJ1-840

ROD, CHOKE CONTROL

$7.49

$

Usually ships in 3-6 days

0

14

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

15

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90605-230-000

CIRCLIP (5MM)

$3.99

$

In Stock, only 3 left!

0

17

Honda 92301-04006-0H

BOLT, RECESSED (4X6)

$0.99

$

In Stock, Qty 6

0

18

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 92301-05025-0A

BOLT, RECESSED (5X25)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 93500-05035-0A

SCREW, PAN (5X35)

$1.49

$

In Stock, only 3 left!

0

21

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
