EB11000 A (EZCQ) - Honda Generator, Made in Japan (SN: EZCQ-3000001 - EZCQ-9999999) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

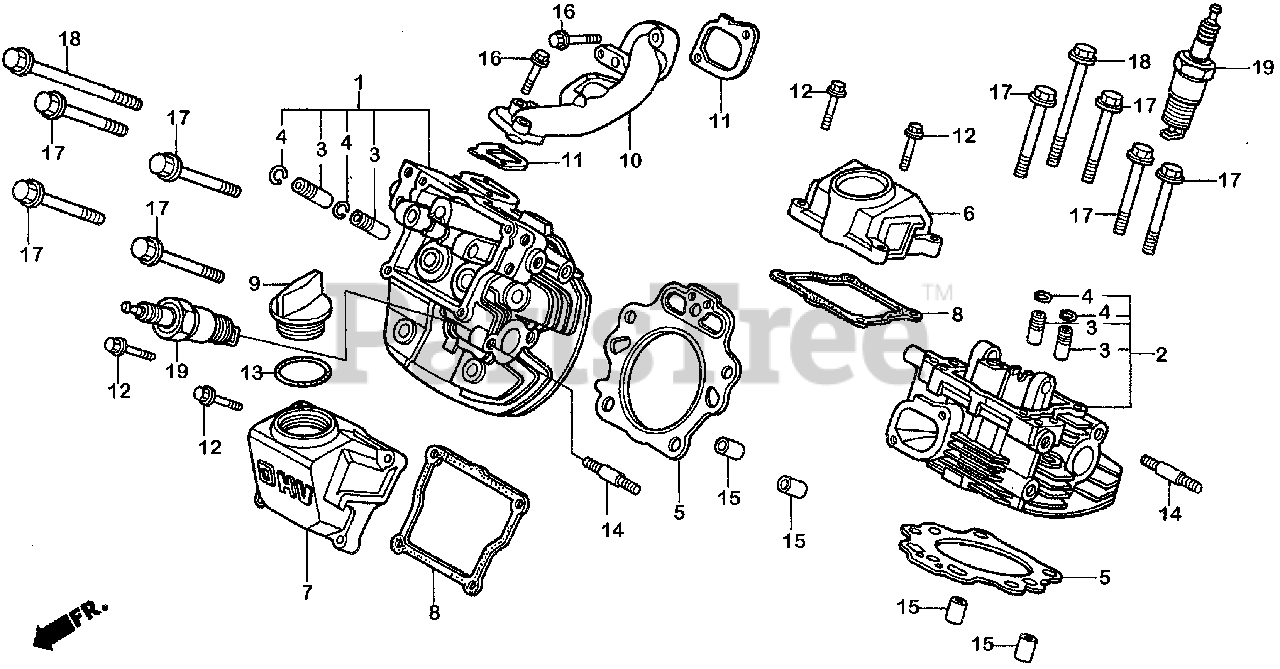

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12210-ZJ1-405

CYLINDER HEAD, R.

$

$

Not available

2

Honda 12220-ZJ1-U80

SEE PART DETAILS - PRI; CYLINDER HEAD (#2)

$372.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE2-305

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 2089563).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZJ1-003

GASKET, CYLINDER HEAD

$20.99

$

In Stock, only 1 left!

0

6

Honda 12311-ZJ1-000

COVER, HEAD (NOT AVAILABLE)

$

$

Not available

7

Honda 12314-ZJ1-000

COVER, HEAD FILLER (NOT AVAILABLE)

$

$

Not available

8

Honda 12391-ZJ1-000

GASKET, HEAD COVER

$13.99

$

In Stock, only 4 left!

0

9

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

$13.99

$

Usually ships in 3-6 days

0

10

Honda 17101-ZJ1-000

MANIFOLD, IN.

$

$

Not available

11

Honda 17151-ZJ1-003

GASKET, IN. MANIFOLD

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90121-ZJ1-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25) (CT200)
(Superseded to 90121-952-000)

$2.99

$

In Stock, Qty 20+

0

12

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

13

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$4.99

$

Usually ships in 3-6 days

0

14

Honda 92900-08025-0B

BOLT, STUD (8X25)

$2.99

$

In Stock, Qty 6

0

15

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.49

$

Usually ships in 3-6 days

0

16

Honda 95701-06032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2105856).

$2.49

$

In Stock, Qty 5

0

17

Honda 95701-10075-00

BOLT, FLANGE (10X75)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 95701-10130-00

BOLT, FLANGE (10X130)

$4.99

$

Usually ships in 3-6 days

0

19

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.49

$

In Stock, Qty 20+

0
