EB11000 A (EZCQ) - Honda Generator, Made in Japan (SN: EZCQ-3000001 - EZCQ-9999999) CYLINDER Parts Diagram

Generator, Made in Japan

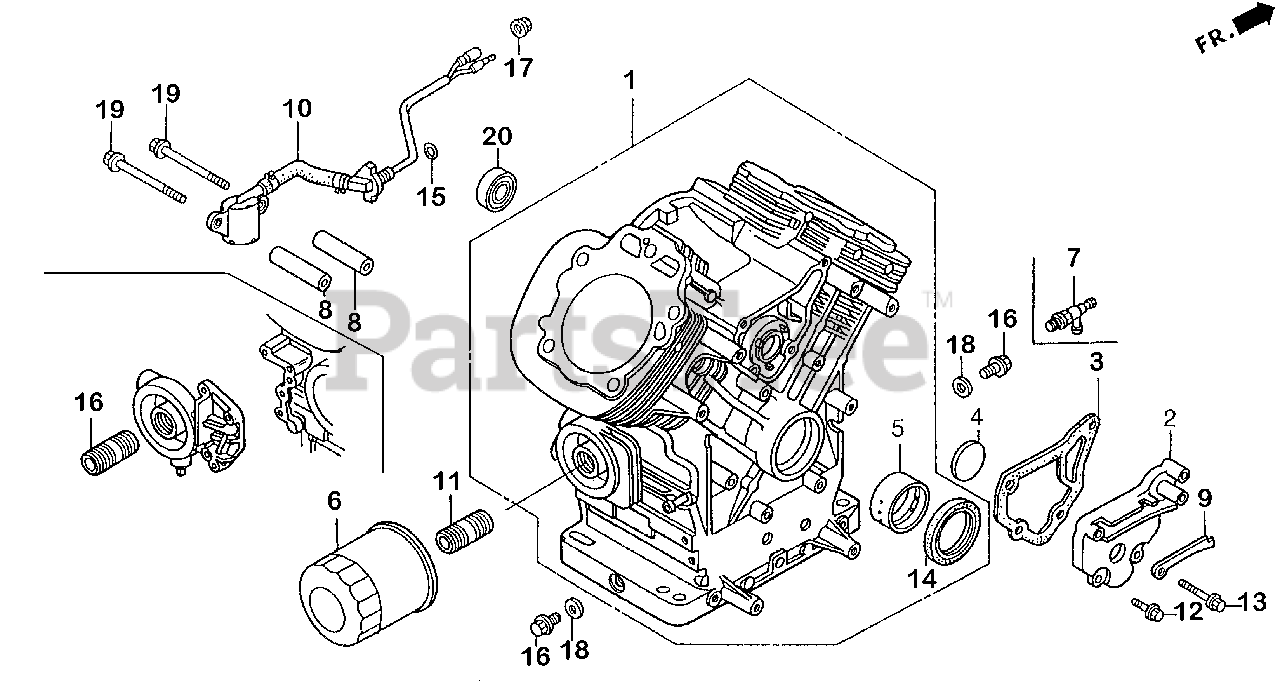

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZJ1-810

CYLINDER ASSY.

$

$

Not available

2

Honda 12356-ZJ1-000

COVER, BREATHER (Honda Code 4208955).

$31.99

$

Usually ships in 3-6 days

0

3

Honda 12358-ZJ1-000

GASKET, BREATHER COVER (Honda Code 4265278).

$11.99

$

In Stock, only 1 left!

0

4

Honda 12372-ZE2-300

VALVE, BREATHER (Honda Code 2061620).

$3.99

$

In Stock, Qty 6

0

5

Honda 13321-ZJ1-000

BEARING A, MAIN (BLUE) (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

$

$

Not available

5

Honda 13322-ZJ1-000

BEARING B, MAIN (BLACK) (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

$

$

Not available

5

Honda 13323-ZJ1-000

BEARING C, MAIN (BROWN) (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

$

$

Not available

6

Honda 15400-PLM-A01PE

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$13.99

$

In Stock, Qty 11

0

6

Honda 15400-PLM-A02PE

FILTER, OIL

$13.99

$

In Stock, Qty 11

0

6

Honda 15400-P0H-305

SEE PART DETAILS - SUP; FILTER, OIL (SOLD IN MULTIPLES OF 30)

$12.99

$

In Stock, Qty 17

0

6

Honda 15400-ZJ1-004

SEE PART DETAILS - SUP; FILTER, OIL (Honda Code 6836290). (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$13.99

$

In Stock, Qty 11

0

7

Honda 15558-ZJ1-010AH

VALVE, DRAIN (14X1.5) (Honda Code 4506622).

Note: (Optional).

$29.99

$

Usually ships in 3-6 days

0

8

Honda 25523-VD6-010

COLLAR, FILTER SETTING

$8.99

$

Usually ships in 3-6 days

0

9

Honda 31511-ZJ1-000

CLAMP, WIRE (Honda Code 4210217).

$4.49

$

Usually ships in 3-6 days

0

10

Honda 35480-ZJ1-812

SWITCH ASSY., OIL LEVEL

$

$

Not available

11

Honda 90018-PN3-000

HOLDER, OIL FILTER (Honda Code 3509528).

$9.99

$

In Stock, only 1 left!

0

12

Honda 90029-888-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90031-ZE1-000

BOLT, FLANGE (6X32) (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0

14

Honda 91201-ZJ1-003

OIL SEAL (38X58X11)

$12.99

$

In Stock, only 2 left!

0

15

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 17

0

16

Honda 92800-14000

BOLT, DRAIN PLUG (14MM) (Honda Code 0171777).

$5.99

$

Usually ships in 3-6 days

0

17

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94109-14000

WASHER, DRAIN PLUG (14MM) (Honda Code 0171876).

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-06075-09

BOLT, FLANGE (6X75)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 96140-60030-10

BEARING, RADIAL BALL (6003) (Honda Code 4210571).

$19.99

$

Usually ships in 3-6 days

0
