EB10000 AN (EBVC) - Honda Generator, Made in China (SN: EBVC-1500001 - EBVC-9999999) GENERATOR Parts Diagram

Generator, Made in China

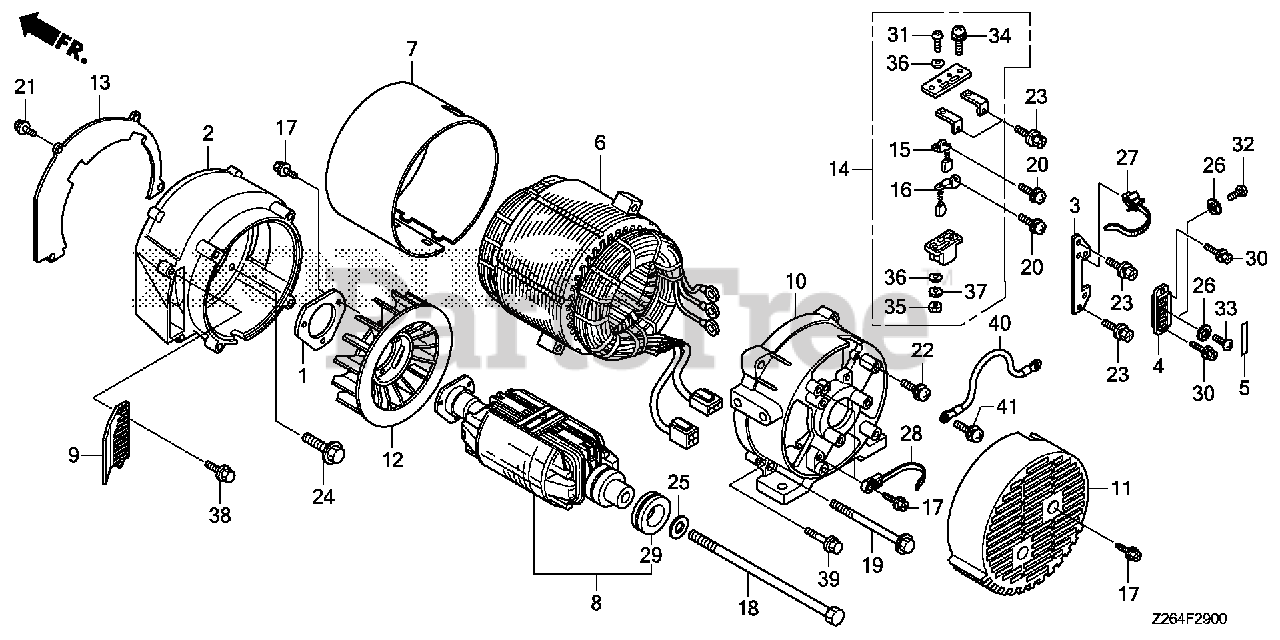

GENERATOR Parts Diagram

  • Title

1

Honda 19513-Z26-S61

PLATE, COOLING FAN

$9.49

$

Usually ships in 3-6 days

0

2

Honda 31109-Z26-003

HOUSING, FR.

$784.99

$

Usually ships in 3-6 days

0

3

Honda 31117-Z26-E81

BRACKET, A.C. OUT TERMINAL

$48.99

$

Usually ships in 3-6 days

0

4

Honda 31118-880-000

TERMINAL, A.C. OUT

$68.99

$

Usually ships in 3-6 days

0

5

Honda 31119-Z26-E81

MARK

$4.99

$

Usually ships in 3-6 days

0

6

Honda 31120-Z26-C32

STATOR ASSY.

$1387.99

$

Usually ships in 3-6 days

0

7

Honda 31127-Z26-S61

COVER, BAND

$25.99

$

Usually ships in 3-6 days

0

8

Honda 31130-Z26-S61

ROTOR

$1685.99

$

Usually ships in 3-6 days

0

9

Honda 31168-Z26-E80

DUCT, GENERATOR

$10.99

$

Usually ships in 3-6 days

0

10

Honda 31171-Z26-S61

HOUSING, RR.

$597.99

$

Usually ships in 3-6 days

0

11

Honda 31186-Z26-S61

COVER, GENERATOR END

$106.99

$

Usually ships in 3-6 days

0

12

Honda 31191-Z26-S61

FAN, GENERATOR COOLING

$154.99

$

Usually ships in 3-6 days

0

13

Honda 31235-Z26-S61

BRACKET, FR.

$463.99

$

Usually ships in 3-6 days

0

14

Honda 31295-Z08-E31

BRUSH ASSY.

$117.99

$

Usually ships in 3-6 days

0

15

Honda 31296-ZC6-003

BRUSH (A)

$33.99

$

Usually ships in 3-6 days

0

16

Honda 31297-ZC6-003

BRUSH (B)

$33.99

$

Usually ships in 3-6 days

0

17

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90101-Z26-000

BOLT, HEX. (10X278)

$15.99

$

Usually ships in 3-6 days

0

19

Honda 90101-Z26-S61

BOLT, FLANGE (8X170)

$9.49

$

Usually ships in 3-6 days

0

20

Honda 90102-Z08-E30

SCREW-WASHER (4X8)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90102-Z26-003

BOLT, FLANGE (5X12)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90103-Z08-E30

SCREW-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90104-Z08-E31

BOLT-WASHER (6X15)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 90105-Z26-000

BOLT, HEX. (3/8-16UNCX25)

$6.99

$

Usually ships in 3-6 days

0

25

Honda 90504-ZA0-000

WASHER (10.5MM)

$6.49

$

Usually ships in 3-6 days

0

26

Honda 90506-ZA0-003

WASHER, SPRING (6MM)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK)

$9.99

$

Usually ships in 3-6 days

0

28

Honda 90673-ZB4-003

TIE, CABLE

$5.99

$

Usually ships in 3-6 days

0

29

Honda 91051-ZC6-003

BEARING ASSY. (6306NCX)

$76.99

$

Usually ships in 3-6 days

0

30

Honda 93403-05020-08

BOLT-WASHER (5X20)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 93500-04016-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X16)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 93500-06008-3J

SCREW, PAN (6X8)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 93500-06012-3J

SCREW, PAN (6X12)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 93893-05010-18

SCREW-WASHER (5X10) (NOT AVAILABLE)

$

$

Not available

35

Honda 94002-04080-0S

NUT, HEX. (4MM) (NOT AVAILABLE)

$

$

Not available

36

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM) (Honda Code 0331462).

$1.49

$

Usually ships in 3-6 days

0

37

Honda 94111-04800

WASHER, SPRING (4MM) (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

38

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

39

Honda 95701-06045-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X45) (Honda Code 2552537).

$2.99

$

In Stock, only 3 left!

0

40

Honda 31169-Z26-C30

WIRE, GROUND

$17.99

$

Usually ships in 3-6 days

0

41

Honda 90103-Z08-E30

SCREW-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0
