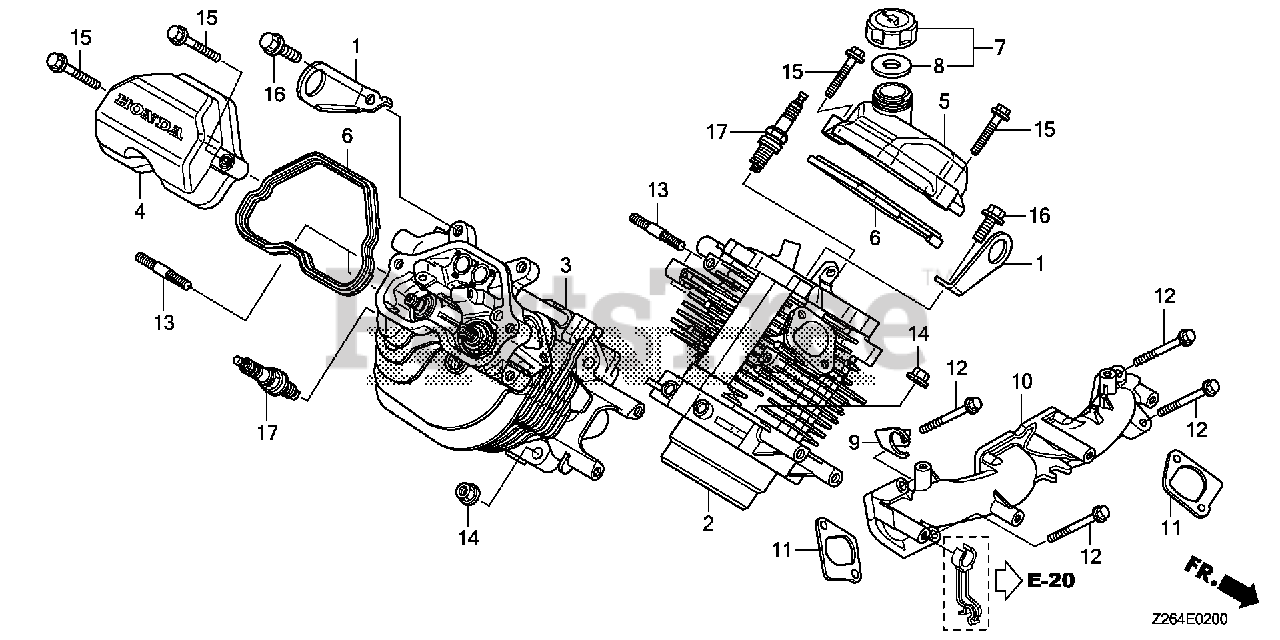

EB10000 AN (EBVC) - Honda Generator, Made in China (SN: EBVC-1500001 - EBVC-9999999) CYLINDER HEAD Parts Diagram

Generator, Made in China

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 11911-Z6L-000

HANGER, ENGINE

$1.99

$

Usually ships in 3-6 days

0

2

Honda 12110-ZEA-000

CYLINDER HEAD (#1)

$515.99

$

Usually ships in 3-6 days

0

3

Honda 12120-ZEA-000

CYLINDER HEAD (#2)

$391.99

$

Usually ships in 3-6 days

0

4

Honda 12311-Z6L-000

COVER, CYLINDER HEAD

$36.99

$

Usually ships in 3-6 days

0

5

Honda 12311-Z6L-800

COVER, CYLINDER HEAD

$38.99

$

Usually ships in 3-6 days

0

6

Honda 12312-Z6L-000

GASKET, HEAD COVER

$10.99

$

In Stock, Qty 6

0

7

Honda 15600-Z6L-000

CAP ASSY., OIL FILLER

$6.99

$

Usually ships in 3-6 days

0

8

Honda 15625-Z6L-000

GASKET, OIL FILLER CAP

$3.49

$

Usually ships in 3-6 days

0

9

Honda 16722-Z6L-010

STAY, FUEL TUBE GROMMET

$3.99

$

Usually ships in 3-6 days

0

10

Honda 17101-ZCN-000

MANIFOLD, IN.

$220.99

$

Usually ships in 3-6 days

0

11

Honda 17151-Z6L-010

GASKET, IN. MANIFOLD

$4.49

$

In Stock, only 4 left!

0

12

Honda 90006-Z6L-000

BOLT, FLANGE (8X55)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 92900-08022-0E

BOLT, STUD (8X22)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

Usually ships in 3-6 days

0

15

Honda 95701-06030-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X30) (Honda Code 2401222).

$2.49

$

In Stock, only 4 left!

0

16

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 7

0

17

Honda 98079-5587G

SPARK PLUG (ZFR5F)

$3.49

$

In Stock, Qty 20+

0
