EB10000 AN (EBVC) - Honda Generator, Made in China (SN: EBVC-1500001 - EBVC-9999999) CAMSHAFT Parts Diagram

Generator, Made in China

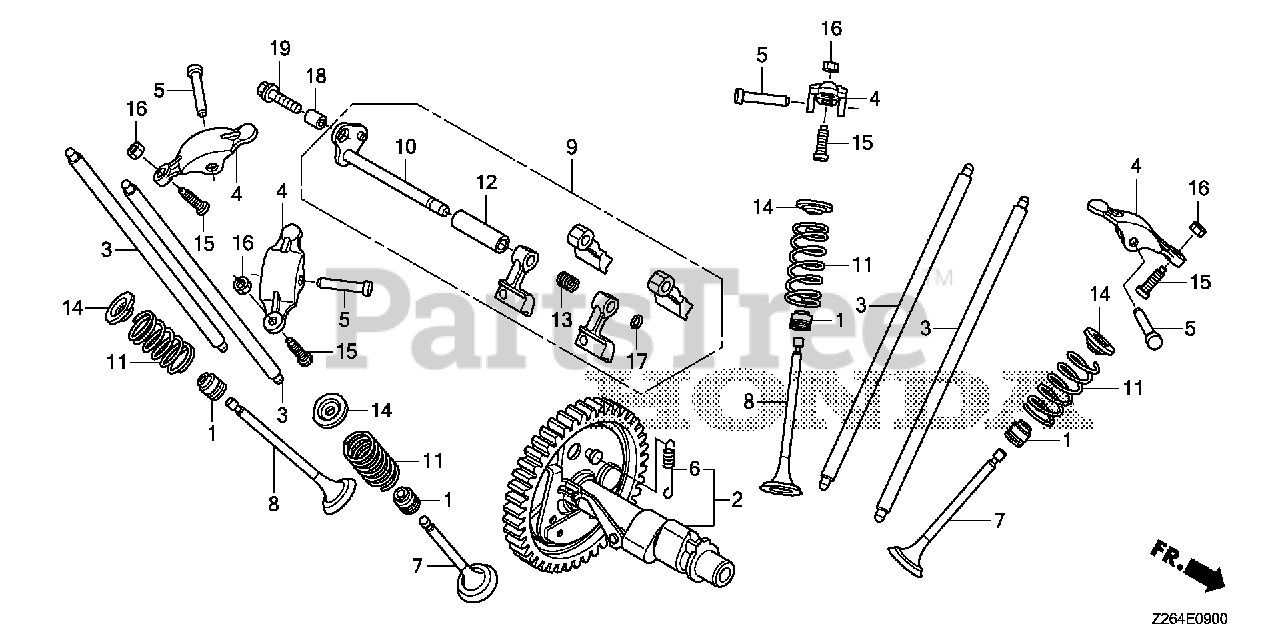

CAMSHAFT Parts Diagram

  • Title

1

Honda 12208-Z6L-003

SEAL, VALVE STEM

$5.49

$

In Stock, Qty 15

0

2

Honda 14100-ZEA-000

CAMSHAFT ASSY.

$348.99

$

In Stock, only 1 left!

0

3

Honda 14410-Z6L-000

ROD, PUSH

$15.99

$

In Stock, only 4 left!

0

4

Honda 14431-ZDW-000

ARM, VALVE ROCKER

$9.99

$

In Stock, Qty 12

0

5

Honda 14461-Z6L-000

SHAFT, ROCKER ARM

$2.49

$

In Stock, Qty 20+

0

6

Honda 14568-Z6L-000

SPRING, WEIGHT RETURN

$2.49

$

Usually ships in 3-6 days

0

7

Honda 14711-Z6L-000

VALVE, IN.

$23.99

$

Usually ships in 3-6 days

0

8

Honda 14721-Z6L-000

VALVE, EX.

$39.99

$

Usually ships in 3-6 days

0

9

Honda 14730-Z6L-000

LIFTER ASSY., VALVE

$100.99

$

Usually ships in 3-6 days

0

10

Honda 14735-Z6L-000

SHAFT, VALVE LIFTER

$24.99

$

Usually ships in 3-6 days

0

11

Honda 14751-Z6L-000

SPRING, VALVE

$3.99

$

Usually ships in 3-6 days

0

12

Honda 14763-Z6L-000

COLLAR, VALVE LIFTER

$3.99

$

Usually ships in 3-6 days

0

13

Honda 14764-Z6L-000

SPRING, VALVE LIFTER

$2.49

$

Usually ships in 3-6 days

0

14

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (Honda Code 1426980).
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 14

0

14

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 14

0

15

Honda 90012-Z6L-000

SCREW, TAPPET ADJUSTING

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90206-Z6L-000

NUT, TAPPET ADJUSTING

$1.49

$

In Stock, Qty 5

0

17

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

18

Honda 90707-Z6L-000

PIN, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 95701-06022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2105823).

$2.49

$

In Stock, only 1 left!

0
