EB10000 AH1 (EBVC) - Honda Generator, Made in China (SN: EBVC-1000001 - EBVC-1499999) BREATHER HEATER KIT Parts Diagram

Generator, Made in China

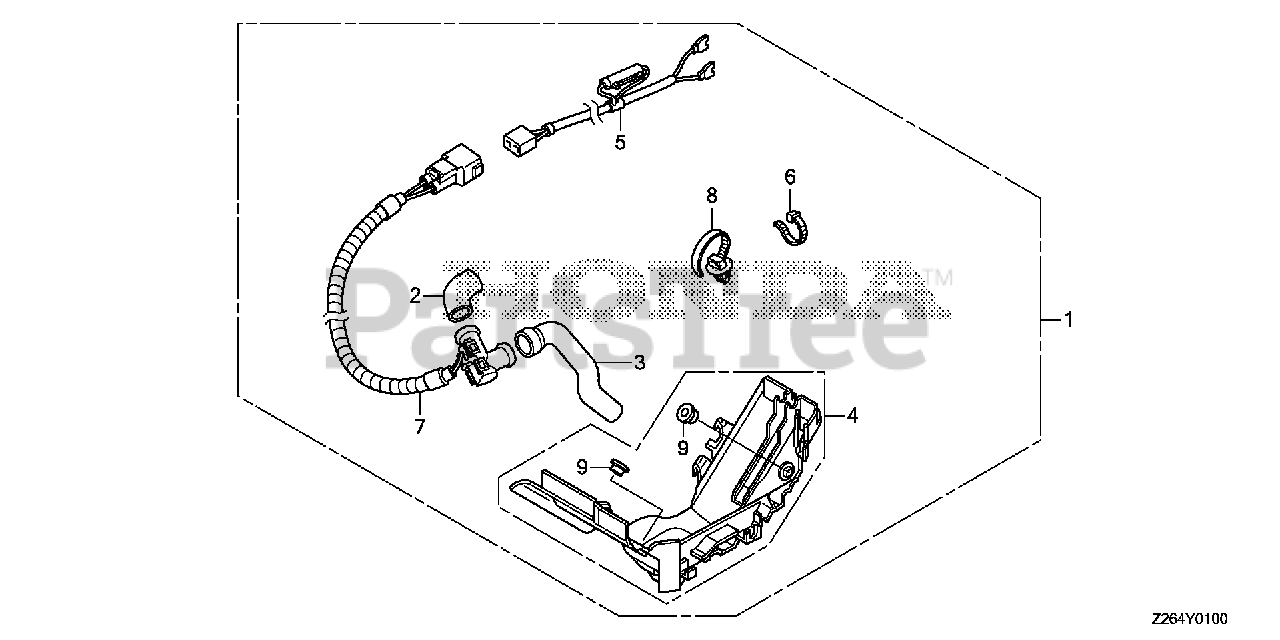

BREATHER HEATER KIT Parts Diagram

  • Title

1

Honda 06390-Z26-C30

HEATER KIT, BREATHER
(Superseded to 06390-Z26-C31)

Note: (Optional).

$

$

Not available

2

Honda 15721-ZCL-D30

TUBE, BREATHER

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

3

Honda 15722-ZCL-D30

TUBE B, BREATHER

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

4

Honda 19631-ZCL-D30

SHROUD (UPPER)

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

5

Honda 32198-Z26-C30

SUB-WIRE ASSY.

Note: (Optional).

$33.99

$

Usually ships in 3-6 days

0

6

Honda 32903-Z22-000

TIE, CABLE (C)

Note: (Optional).

$2.49

$

In Stock, only 1 left!

0

7

Honda 39310-ZCL-003

HEATER ASSY., BREATHER (L)

Note: (Optional).

$157.99

$

Usually ships in 3-6 days

0

8

Honda 91540-S30-003

CLIP, HARNESS BAND (151.5MM) (NATURAL)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 19619-Z0A-300

COLLAR, FAN COVER

Note: (Optional).

$2.49

$

In Stock, only 2 left!

0
