EB10000 AH1/A (EBVC) - Honda Generator, Made in China (SN: EBVC-1500001 - EBVC-9999999) FUEL PUMP Parts Diagram

Generator, Made in China

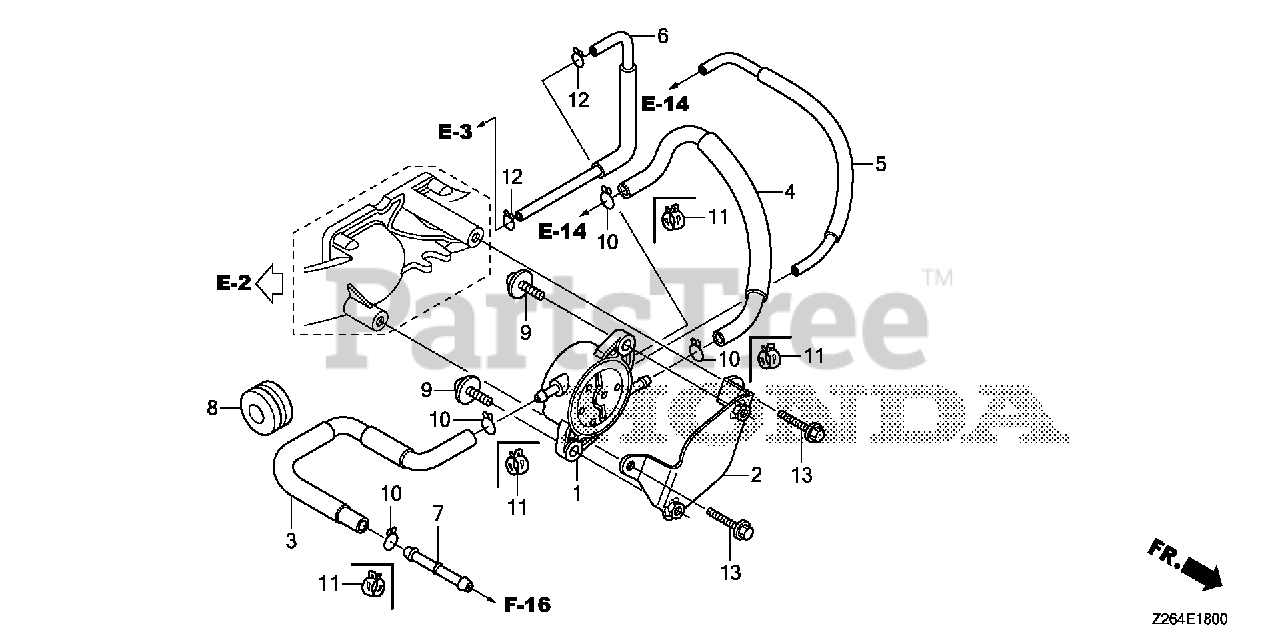

FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-Z6L-003

PUMP ASSY., FUEL (MSDS)

$53.99

$

In Stock, only 4 left!

0

2

Honda 16711-Z6L-000

STAY, FUEL PUMP

$10.99

$

Usually ships in 3-6 days

0

3

Honda 16850-Z6L-020

SEE PART DETAILS - PRI; TUBE A, FUEL (FKM)

$20.99

$

Usually ships in 3-6 days

0

4

Honda 16860-Z6L-000

TUBE B, FUEL (FKM)
(Superseded to 16860-Z6L-010)

$20.99

$

Usually ships in 3-6 days

0

5

Honda 16870-Z6L-000

TUBE, PURGE

$21.99

$

Usually ships in 3-6 days

0

6

Honda 16882-Z6L-000

TUBE, DIAPHRAGM

$3.49

$

Usually ships in 3-6 days

0

7

Honda 17721-ZY3-000

JOINT, FUEL RETURN

$7.49

$

Usually ships in 3-6 days

0

8

Honda 80152-958-680

RUBBER, RR. FENDER

$7.49

$

Usually ships in 3-6 days

0

9

Honda 93894-06016-00

SCREW-WASHER (6X16) (Honda Code 6227201).

$0.99

$

Usually ships in 3-6 days

0

11

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

$2.49

$

In Stock, Qty 5

0

13

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 8

0
