EB10000 AH (EBVC) - Honda Generator, Made in China (SN: EBVC-1000001 - EBVC-9999999) FUEL TANK Parts Diagram

Generator, Made in China

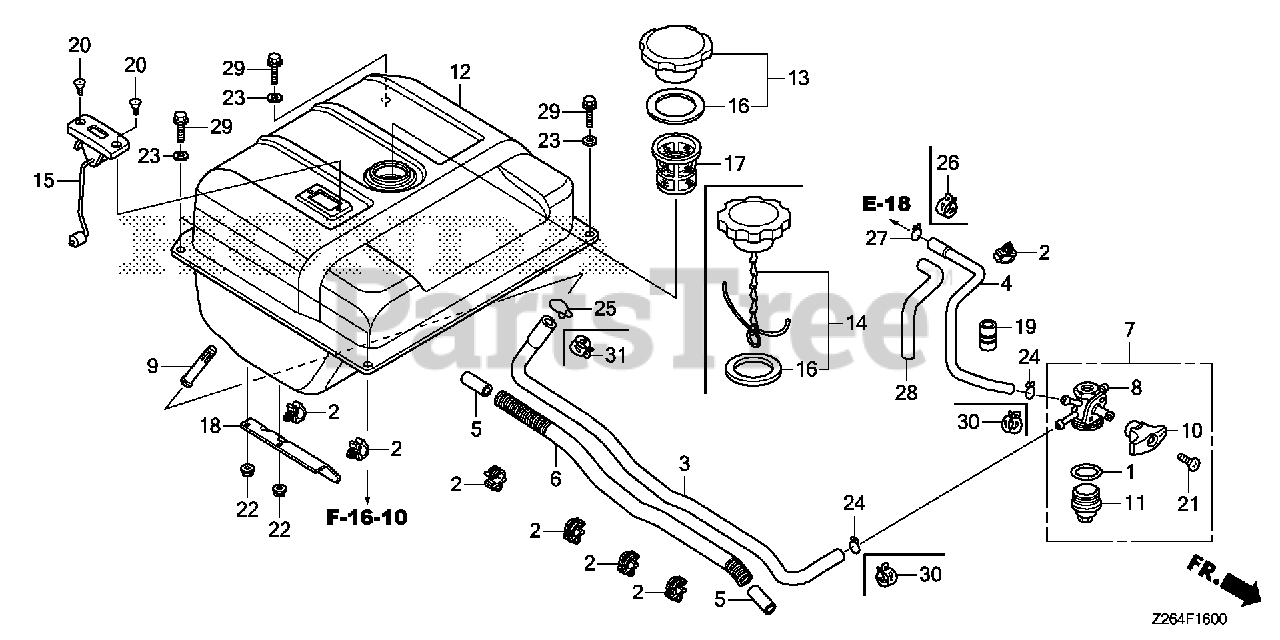

FUEL TANK Parts Diagram

  • Title

1

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, Qty 8

0

2

Honda 16731-ZE2-003

CLIP, TUBE

$2.99

$

In Stock, only 2 left!

0

3

Honda 16852-Z26-C31

TUBE, FUEL TANK (FKM)
(Superseded to 16852-Z26-C32)

$33.99

$

Usually ships in 3-6 days

0

4

Honda 16853-Z26-C31

TUBE, FUEL PETCOCK (FKM)
(Superseded to 16853-Z26-C32)

$

$

Not available

5

Honda 16854-Z26-000

RUBBER, SUPPORTER

$6.49

$

Usually ships in 3-6 days

0

6

Honda 16865-Z26-000

PROTECTOR, TUBE

$12.99

$

Usually ships in 3-6 days

0

7

Honda 16950-Z26-003

PETCOCK ASSY.

$113.99

$

Usually ships in 3-6 days

0

8

Honda 16951-Z26-003

BODY, PETCOCK

$64.99

$

Usually ships in 3-6 days

0

9

Honda 16952-ZA0-000

FILTER, FUEL

$16.99

$

In Stock, only 1 left!

0

10

Honda 16953-Z03-003

LEVER, PETCOCK

$10.99

$

In Stock, Qty 11

0

11

Honda 16967-MA2-771

CUP, FUEL STRAINER

$33.99

$

Usually ships in 3-6 days

0

12

Honda 17510-Z26-C30ZA

TANK, FUEL *R280* (POWER RED)

$456.99

$

Usually ships in 3-6 days

0

14

Honda 17620-Z30-S31

CAP, FUEL FILLER
(Superseded to 17620-Z30-S32)

$44.99

$

In Stock, only 3 left!

0

15

Honda 17630-Z26-E80

METER ASSY., FUEL
(Superseded to 17630-Z26-E81)

$

$

Not available

15

Honda 17630-Z26-E81

METER ASSY., FUEL
(Superseded to 17630-Z26-E82)

$23.99

$

Usually ships in 3-6 days

0

16

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$7.99

$

In Stock, only 2 left!

0

17

Honda 17670-Z26-C30

FILTER, FUEL

$17.99

$

Usually ships in 3-6 days

0

18

Honda 17719-Z26-000

HOLDER, FUEL TUBE

$13.99

$

Usually ships in 3-6 days

0

19

Honda 90854-ZB3-000

RUBBER, FUEL (9X15X20)

$4.49

$

In Stock, only 1 left!

0

20

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, only 3 left!

0

21

Honda 93700-04018-0G

SCREW, OVAL (4X18)

$0.99

$

In Stock, Qty 5

0

22

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

23

Honda 94103-06700

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

26

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.49

$

In Stock, Qty 8

0

28

Honda 95003-25003-10M

BULK HOSE, VINYL (9X11X3000) (9X11X120)

$21.99

$

Usually ships in 3-6 days

0

29

Honda 95701-06016-07

BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 6

0

31

Honda 95002-41050-08

CLAMP, TUBE (D10.5)

$3.49

$

In Stock, Qty 7

0
