EB10000 AH (EBVC) - Honda Generator, Made in China (SN: EBVC-1000001 - EBVC-9999999) CONTROL BOX Parts Diagram

Generator, Made in China

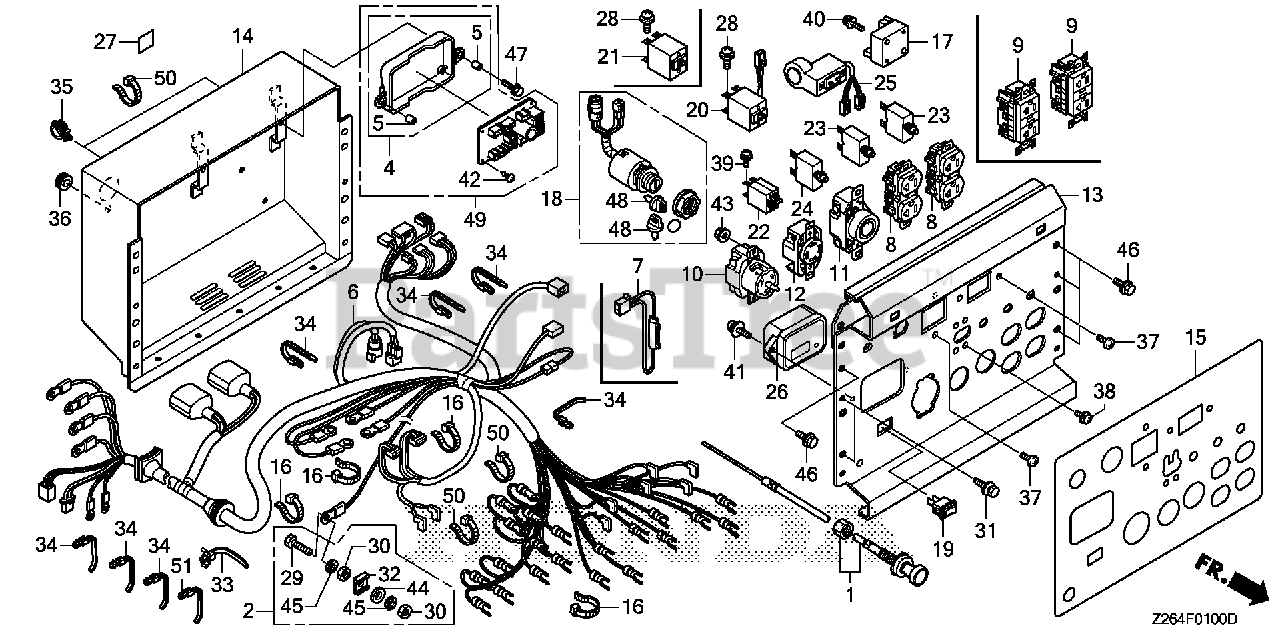

CONTROL BOX Parts Diagram

  • Title

1

Honda 17950-Z26-E81

CABLE, CHOKE

$19.99

$

Usually ships in 3-6 days

0

2

Honda 31428-Z22-000

TERMINAL SET, GROUND

$9.49

$

In Stock, only 1 left!

0

4

Honda 31705-Z26-300

CASE, AUTOMATIC VOLTAGE REGULATOR

$22.99

$

Usually ships in 3-6 days

0

5

Honda 31706-Z26-300

COLLAR, AUTOMATIC VOLTAGE REGULATOR CASE

$4.49

$

Usually ships in 3-6 days

0

6

Honda 32150-Z26-V30

WIRE HARNESS ASSY., CONTROL

$636.99

$

Usually ships in 3-6 days

0

9

Honda 32330-Z23-G12

SEE PART DETAILS - PRI; RECEPTACLE (20A-125V) (GFCI)

$

$

Not available

10

Honda 32331-ZC6-630

RECEPTACLE (50A/125-250V)

$145.99

$

Usually ships in 3-6 days

0

11

Honda 32332-Z22-E31

RECEPTACLE (30A-125V)

$93.99

$

In Stock, only 1 left!

0

12

Honda 32334-Z22-A31

RECEPTACLE (30A-125/250V)

$111.99

$

In Stock, only 1 left!

0

13

Honda 32345-Z26-V30ZA

PANEL, CONTROL *NH105* (MAT BLACK)

$281.99

$

Usually ships in 3-6 days

0

14

Honda 32350-Z26-E80ZA

COVER, CONTROL BOX *NH105* (MAT BLACK)

$402.99

$

Usually ships in 3-6 days

0

15

Honda 32366-Z26-V30

MARK, PANEL (A1)

$221.99

$

Usually ships in 3-6 days

0

16

Honda 32903-Z22-000

TIE, CABLE (C)

$2.49

$

In Stock, only 1 left!

0

17

Honda 34140-Z26-C31

CONTROL UNIT, IDLE

$247.99

$

Usually ships in 3-6 days

0

18

Honda 35100-Z26-003

SWITCH ASSY., COMBINATION
(Superseded to 35100-Z26-013)

$120.99

$

Usually ships in 3-6 days

0

19

Honda 35340-Z22-E31

SWITCH ASSY., IDLE CONTROL

$41.99

$

Usually ships in 3-6 days

0

20

Honda 38220-Z26-C31

BREAKER, CIRCUIT (41A)

$305.99

$

Usually ships in 3-6 days

0

22

Honda 38221-Z26-C31

BREAKER, CIRCUIT (30A)

$282.99

$

Usually ships in 3-6 days

0

23

Honda 38240-Z22-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$92.99

$

In Stock, only 1 left!

0

24

Honda 38241-Z22-E31

PROTECTOR, CIRCUIT (30A)

$92.99

$

Usually ships in 3-6 days

0

25

Honda 38540-ZC2-E31

SEE PART DETAILS - PRI; RELAY ASSY. (GFCI)

$397.99

$

In Stock, only 1 left!

0

26

Honda 39700-Z26-003

MONITOR ASSY., MULTI

$681.99

$

Usually ships in 3-6 days

0

27

Honda 87117-Z26-E80

MARK, FUSE

$3.99

$

Usually ships in 3-6 days

0

28

Honda 90103-Z08-E30

SCREW-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 90111-Z22-000

BOLT, HEX. (6X28)

$3.49

$

In Stock, only 1 left!

0

30

Honda 90112-Z22-000

NUT, HEX. (6MM)

$1.49

$

In Stock, only 1 left!

0

31

Honda 90148-SE0-003

BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN)

$11.99

$

Usually ships in 3-6 days

0

32

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

In Stock, only 1 left!

0

33

Honda 90672-Z22-003

CABLE, STRAP

$3.99

$

Usually ships in 3-6 days

0

34

Honda 90672-ZB4-000

TIE, CABLE

$3.99

$

Usually ships in 3-6 days

0

35

Honda 90684-ZA0-601

CLIP, HARNESS

$4.99

$

Usually ships in 3-6 days

0

36

Honda 91651-Z26-E80

GROMMET, CHOKE CABLE

$4.99

$

Usually ships in 3-6 days

0

37

Honda 93500-04006-0G

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 6

0

38

Honda 93892-03006-17

SCREW-WASHER (3X6)

$0.99

$

Usually ships in 3-6 days

0

39

Honda 93892-04008-00

SCREW-WASHER (4X8)

$0.99

$

Usually ships in 3-6 days

0

40

Honda 93893-05014-08

SCREW-WASHER (5X14)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 93893-06016-08

SCREW-WASHER (6X16)

$1.99

$

Usually ships in 3-6 days

0

42

Honda 93911-24120

SCREW, TAPPING (4X10) (PO)

$1.49

$

Usually ships in 3-6 days

0

43

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

44

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

45

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

46

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

47

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 9

0

48

Honda 35110-ZV5-V50

KEY ASSY., COMBINATION SWITCH (W05)

$5.99

$

In Stock, only 1 left!

0

49

Honda 31720-Z26-C30

CASE ASSY., AUTOMATIC VOLTAGE REGULATOR

$403.99

$

Usually ships in 3-6 days

0

51

Honda 90672-ZB4-000

TIE, CABLE

$3.99

$

Usually ships in 3-6 days

0
