EB10000 AG (EBVC) - Honda Generator, Made in China (SN: EBVC-1500001 - EBVC-9999999) FRAME PIPE Parts Diagram

Generator, Made in China

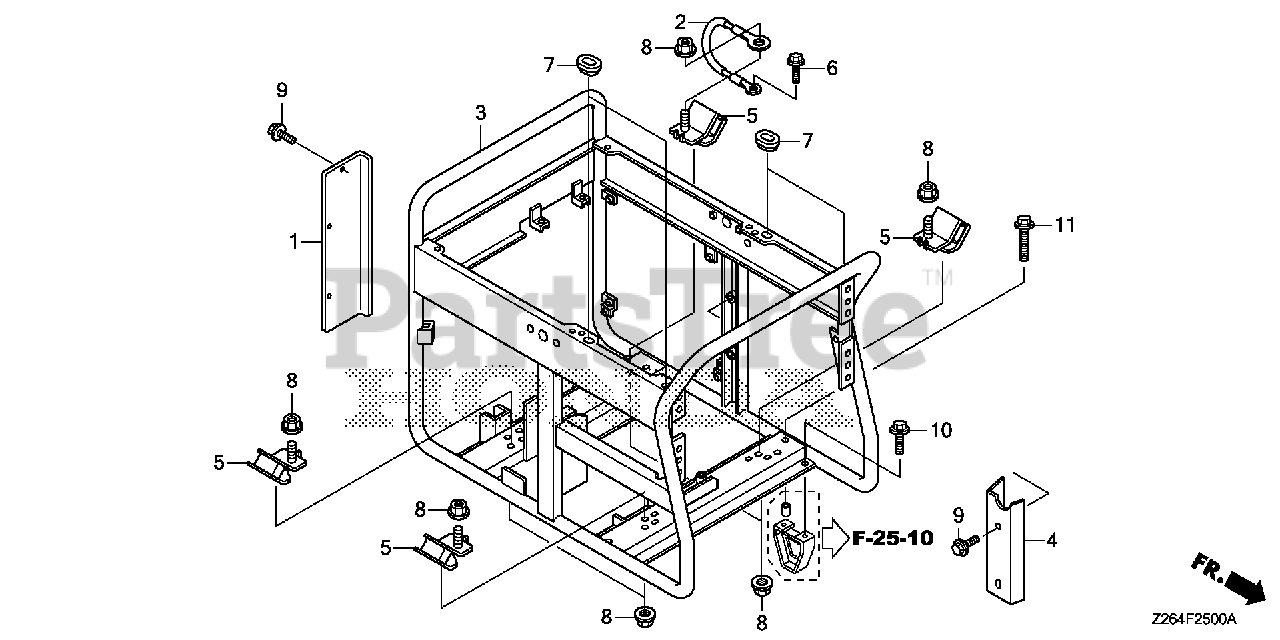

FRAME PIPE Parts Diagram

  • Title
1

Honda 17358-Z26-F30ZA

GUARD B, CANISTER *NH105* (MAT BLACK)

$106.99

$

Usually ships in 3-6 days

0

2

Honda 32610-Z26-C40

CABLE, SUB-GROUND

$6.99

$

Usually ships in 3-6 days

0

3

Honda 50310-Z26-305ZA

FRAME *NH105* (COO)(FOR U.S.A.) (MAT BLACK)

$

$

Not available

4

Honda 63332-Z26-F30

SHROUD, SIDE FRAME

$40.99

$

Usually ships in 3-6 days

0

5

Honda 68325-Z26-E80

RUBBER (LOWER)

$70.99

$

Usually ships in 3-6 days

0

6

Honda 90148-SE0-003

BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 91651-Z26-000

GROMMET, COVER

$4.49

$

Usually ships in 3-6 days

0

8

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 6

0

9

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

10

Honda 95701-08020-07

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 95701-08045-07

BOLT, FLANGE (8X45)

$2.99

$

Usually ships in 3-6 days

0
