EB 854 - Shindaiwa Backpack Blower (SN: T14211001001 - T14211999999) CYLINDER HEAD Parts Diagram

Backpack Blower

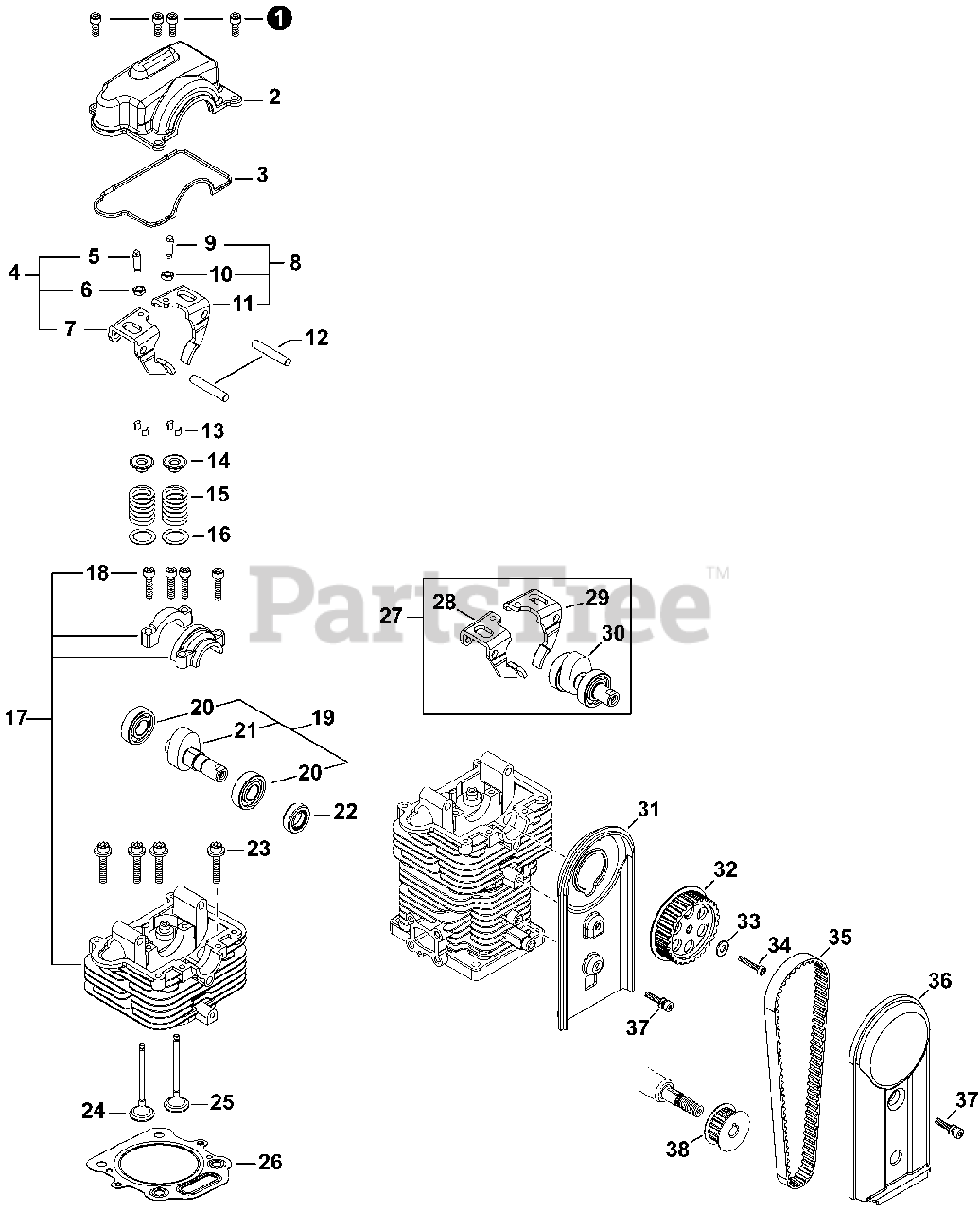

CYLINDER HEAD Parts Diagram

  • Title
1

Echo 90010505016

BOLT 5×16

$1.49

$

In Stock, Qty 6

0

2

Echo A137000010

COVER, VALVE

$15.99

$

Usually ships in 2-4 days

0

3

Echo V109000070

GASKET, VALVE COVER

$7.49

$

In Stock, only 1 left!

0

4

Echo A610000011

CAM FOLLOWER ASSY, LEFT

Note: Includes items 5-7

$27.99

$

Usually ships in 2-4 days

0

5

Echo A613000000

SCREW, ADJUSTER

$1.99

$

Usually ships in 2-4 days

0

6

Echo V263000230

NUT, ADJUSTER LOCK 5

$0.99

$

Usually ships in 2-4 days

0

7

Echo A610000021

FOLLOWER, CAM LEFT

$33.99

$

Usually ships in 2-4 days

0

8

Echo A610000031

CAM FOLLOWER ASSY, RIGHT

Note: Includes items 9-11

$27.99

$

Usually ships in 2-4 days

0

9

Echo A613000000

SCREW, ADJUSTER

$1.99

$

Usually ships in 2-4 days

0

10

Echo V263000230

NUT, ADJUSTER LOCK 5

$0.99

$

Usually ships in 2-4 days

0

11

Echo A610000041

FOLLOWER, CAM RIGHT

$21.99

$

Usually ships in 2-4 days

0

12

Echo V624000060

SHAFT, CAM FOLLOWER 6

$1.99

$

Usually ships in 2-4 days

0

13

Echo A605000010

KEEPER, VALVE

$2.49

$

Usually ships in 2-4 days

0

14

Echo A606000030

RETAINER, VALVE

$36.99

$

Usually ships in 2-4 days

0

15

Echo A604000000

SPRING, VALVE

$3.49

$

Usually ships in 2-4 days

0

16

Echo V393000000

WASHER, VALVE 13

$0.99

$

Usually ships in 2-4 days

0

17

Echo P021029630

HEAD ASSY, CYLINDER

Note: Includes item 18

$152.99

$

Usually ships in 2-4 days

0

18

Echo 90010505022

BOLT M5×22

$1.49

$

Usually ships in 2-4 days

0

19

Echo A621000000

CAMSHAFT ASSY

Note: Includes items 20-21

$67.99

$

Usually ships in 2-4 days

0

20

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, Qty 6

0

21

Echo A621000010

CAMSHAFT

$44.99

$

Usually ships in 2-4 days

0

22

Echo V505000020

SEAL, OIL 12

$6.49

$

In Stock, only 2 left!

0

23

Echo V204000400

BOLT, FLANGE M6×35

$1.99

$

Usually ships in 2-4 days

0

24

Echo A603000020

VALVE, INTAKE

$15.99

$

In Stock, only 2 left!

0

25

Echo A603000030

VALVE, EXHAUST

$19.99

$

In Stock, only 3 left!

0

26

Echo V101000000

GASKET, CYLINDER HEAD

$18.99

$

In Stock, only 4 left!

0

27

Echo P021029551

CAM KIT

Note: Includes items 28-30

$120.99

$

Usually ships in 2-4 days

0

28

Echo A610000021

FOLLOWER, CAM LEFT

$33.99

$

Usually ships in 2-4 days

0

29

Echo A610000041

FOLLOWER, CAM RIGHT

$21.99

$

Usually ships in 2-4 days

0

30

Echo A621000000

CAMSHAFT ASSY

$67.99

$

Usually ships in 2-4 days

0

31

Echo C589000750

CASE, BELT

$6.49

$

Usually ships in 2-4 days

0

32

Echo V176000070

PULLEY, CAM

$24.99

$

Usually ships in 2-4 days

0

33

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

34

Echo 90010505014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0

35

$48.99

$

In Stock, only 1 left!

0

36

Echo C589000760

COVER, BELT

$6.49

$

Usually ships in 2-4 days

0

37

Echo V203000700

BOLT M5×12

$0.99

$

In Stock, Qty 20+

0

38

Echo V176000080

PULLEY, CRANK

$10.99

$

Usually ships in 2-4 days

0
