EB 8510 - Shindaiwa Backpack Blower Throttle Lever Parts Diagram

Backpack Blower

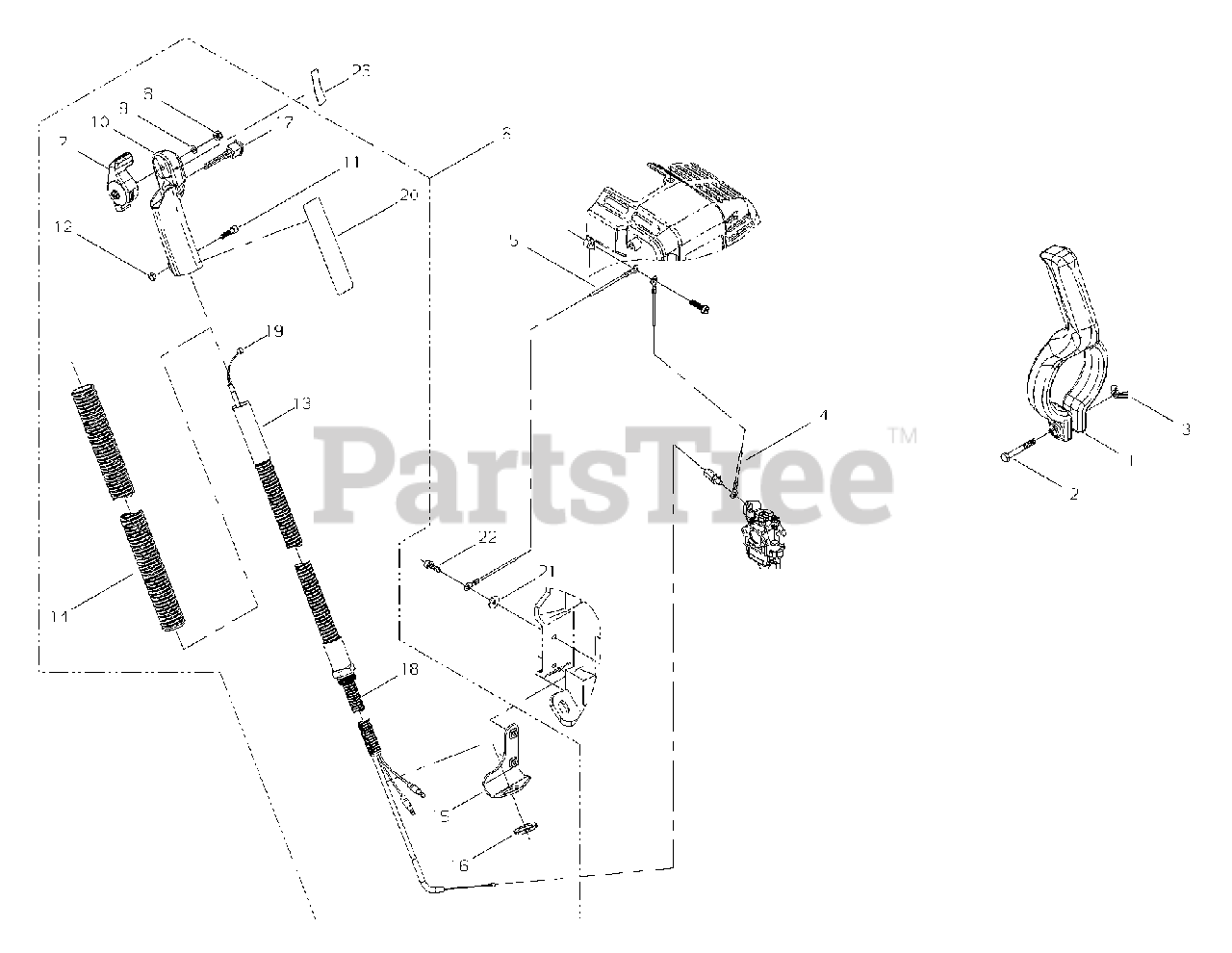

Throttle Lever Parts Diagram

  • Title
1

Echo 68900-63210

HANDLE
(Superseded to C400000620)

$16.99

$

In Stock, only 1 left!

0

2

Echo 01000-06451

BOLT - 6X45
(Superseded to 90010006045)

$0.99

$

In Stock, Qty 20+

0

3

Echo 01520-10671

WINGNUT
(Superseded to 9219206000)

$0.99

$

In Stock, Qty 15

0

4

Echo 14350-01100

LEAD - ANTI-STATIC - 110mm
(Superseded to V485001310)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 14350-05900

LEAD - GROUND
(Superseded to V485001320)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 68206-84013

THROTTLE ASSY
(Superseded to 68206-84014)

Note: Includes ITEMS 6-20

$153.99

$

In Stock, only 2 left!

0

7

Echo 68206-84110

THROTTLE LEVER ASSY
(Superseded to C453000340)

$11.99

$

In Stock, only 1 left!

0

8

Echo 11525-05001

NUT - 5
(Superseded to V263000120)

$0.99

$

In Stock, Qty 9

0

9

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 68206-84210

GRIP
(Superseded to C471000120)

$7.99

$

Usually ships in 2-4 days

0

11

Echo 11210-05160

SCREW - 5X20
(Superseded to 9114205016)

$0.99

$

In Stock, only 1 left!

0

12

Echo 01500-05031

NUT - 5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 68206-84312

FLEX ARM
(Superseded to C456000060)

$62.99

$

In Stock, Qty 9

0

14

Echo 68206-84320

TUBE, PROTECTIVE
(Superseded to V475004440)

$20.99

$

In Stock, only 1 left!

0

15

Echo 68206-84331

BRACKET, MOUNTING
(Superseded to A250000220)

$20.99

$

In Stock, only 1 left!

0

16

Echo 68206-84340

NUT - 21
(Superseded to K543000010)

$9.49

$

Usually ships in 2-4 days

0

17

Echo 68206-84350

IGNITION SWITCH ASSY
(Superseded to A440001350)

$15.99

$

In Stock, only 2 left!

0

18

Echo 68206-84360

FLEX TUBE
(Superseded to V475004450)

$3.49

$

Usually ships in 2-4 days

0

19

Echo 68206-83110

CABLE, THROTTLE
(Superseded to V430002550)

$11.99

$

In Stock, Qty 20+

0

20

Echo 68206-84370

PLATE - GROUND
(Superseded to V486000160)

$34.99

$

Usually ships in 2-4 days

0

21

Echo 15401-10010

COLLAR
(Superseded to V303000140)

$0.99

$

In Stock, Qty 8

0

22

Echo 11060-05181

SCREW - 5X18
(Superseded to V203000460)

$1.99

$

Usually ships in 2-4 days

0

23

Echo 19401-00175

LABEL - INSTRUCTION
(Superseded to X511000050)

$0.99

$

Usually ships in 2-4 days

0
