EB 8510 - Shindaiwa Backpack Blower Crankcase, Engine Cover Parts Diagram

Backpack Blower

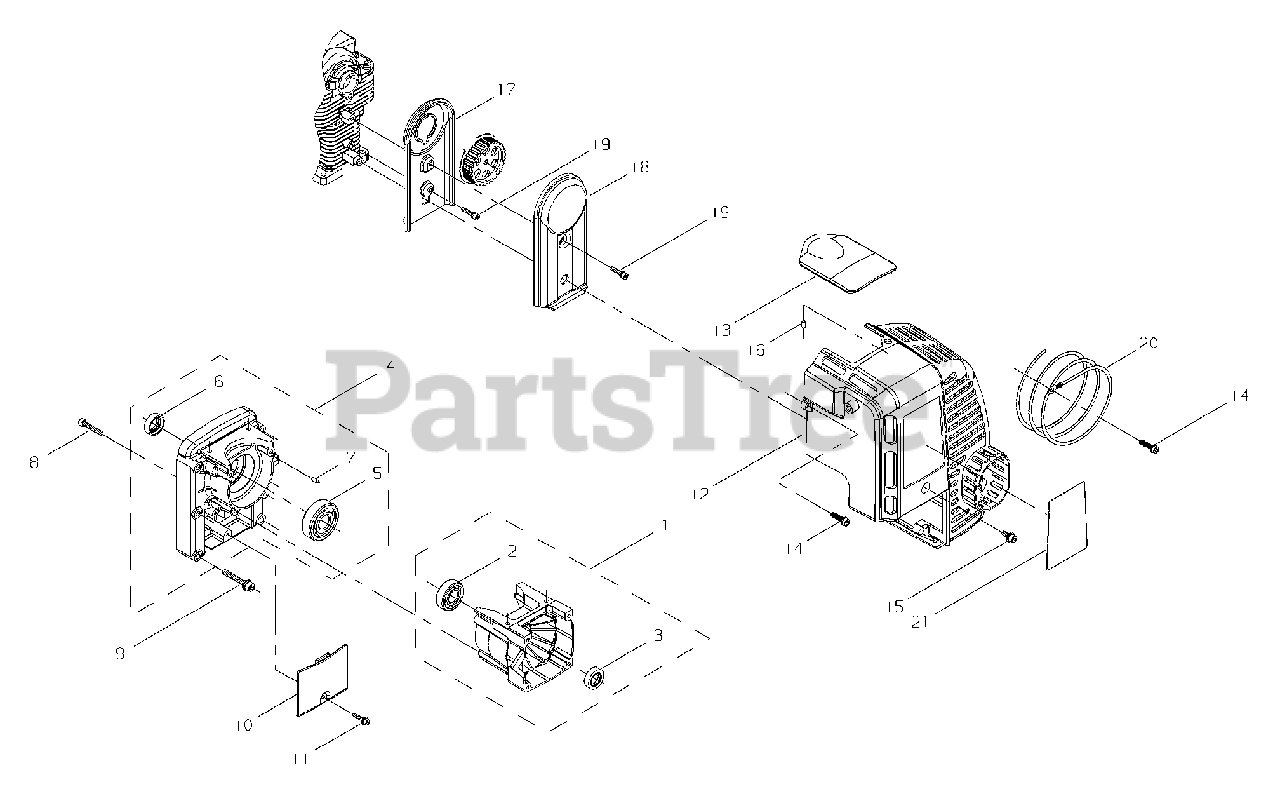

Crankcase, Engine Cover Parts Diagram

  • Title
1

Echo 68900-21011

CRANKCASE ASSY - REAR
(Superseded to P021029460)

Note: Includes ITEMS 1-3

$49.99

$

Usually ships in 2-4 days

0

2

Echo 1290062020

BEARING, BALL - 6202C3
(Superseded to V592000290)

$7.49

$

Usually ships in 2-4 days

0

3

Echo 12310-12000

SEAL, OIL
(Superseded to V508000040)

$9.99

$

In Stock, Qty 16

0

4

Echo 68900-21020

CRANKCASE ASSY - FRONT

Note: Includes ITEMS 4-7

$70.99

$

Usually ships in 2-4 days

0

5

Echo 02030-06303

BEARING, BALL - 6203C3
(Superseded to 9400036303)

$13.99

$

In Stock, only 1 left!

0

6

Echo 12310-12000

SEAL, OIL
(Superseded to V508000040)

$9.99

$

In Stock, Qty 16

0

7

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

8

Echo 01020-05300

SCREW - 5X30
(Superseded to 90010505030)

$1.49

$

In Stock, only 3 left!

0

9

Echo 11060-06400

SCREW - 6X40
(Superseded to V204000370)

$1.99

$

Usually ships in 2-4 days

0

10

Echo 68900-21310

COVER
(Superseded to 68900-21311)

$2.49

$

Usually ships in 2-4 days

0

11

Echo 11024-04200

SCREW - 4X20
(Superseded to V202000190)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 68900-31110

COVER, ENGINE
(Superseded to A190000962)

$41.99

$

Usually ships in 2-4 days

0

13

Echo 68900-31310

COVER, SPARK PLUG
(Superseded to A429000080)

$7.49

$

In Stock, only 2 left!

0

14

Echo 70140-31480

BOLT - 5X20
(Superseded to V203000450)

$1.99

$

In Stock, Qty 5

0

15

Echo 11024-05140

SCREW - 5X14
(Superseded to V203001140)

$0.99

$

In Stock, only 1 left!

0

16

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

17

Echo 68900-32110

CASE, BELT
(Superseded to C589000750)

$6.49

$

Usually ships in 2-4 days

0

18

Echo 68900-32120

COVER, BELT
(Superseded to C589000760)

$6.49

$

Usually ships in 2-4 days

0

19

Echo 11022-05120

SCREW - 5X12
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

20

Echo 14395-09100

LEAD - ANTI-STATIC
(Superseded to V485001330)

$8.49

$

Usually ships in 2-4 days

0

21

Echo 68900-91330

LABEL - MODEL
(Superseded to X543001300)

$5.49

$

In Stock, only 1 left!

0
