EB 802 - Shindaiwa Backpack Blower (SN: T13512001001 - T13512999999) Fuel System S/N: T13512001001 - T13512002488 Parts Diagram

Backpack Blower

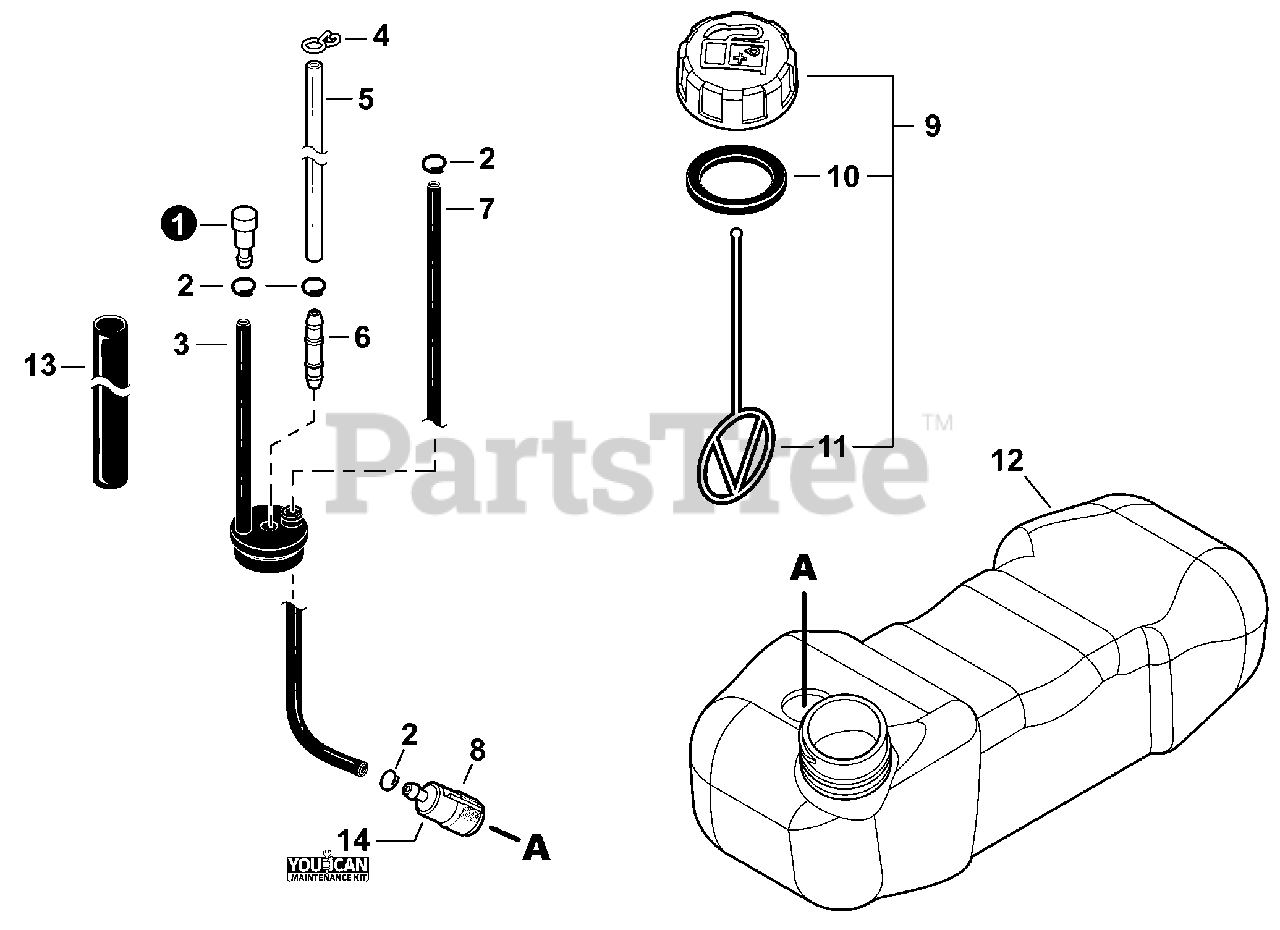

Fuel System S/N: T13512001001 - T13512002488 Parts Diagram

  • Title
1

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

2

Echo V490000500

CLIP Ø6

$0.99

$

In Stock, Qty 19

0

3

Echo V470000890

GROMMET, FUEL W/VENT PIPE

$5.99

$

In Stock, only 2 left!

0

4

Echo V490000510

CLIP, SPRING Ø5.2

$0.99

$

In Stock, Qty 13

0

5

Echo V471003060

PIPE, FUEL 3×6×133 CLEAR

$0.99

$

In Stock, only 2 left!

0

6

Echo V186000210

CONNECTOR, PIPE

$1.99

$

In Stock, only 4 left!

0

7

Echo V471002410

PIPE, FUEL
(Superseded to V471002411)

$2.99

$

Usually ships in 2-4 days

0

8

Echo A369000000

FILTER, FUEL 125-528
(Superseded to A369000001)

$6.99

$

In Stock, Qty 20+

0

9

Echo P021014060

CAP ASSY, FUEL
(Superseded to P021014061)

$9.99

$

Usually ships in 2-4 days

0

10

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

11

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

12

Echo A350001781

TANK, FUEL
(Superseded to A350002570)

$41.99

$

Usually ships in 2-4 days

0

13

Echo V471003070

TUBE, PROTECTIVE

$0.99

$

In Stock, Qty 6

0

14

Echo 84018Y

TUNE-UP KIT - YOUCAN™

$52.99

$

Usually ships in 2-4 days

0
