EB 770 RT - Shindaiwa Backpack Blower (SN: P52115001001 - P52115999999) FUEL SYSTEM Parts Diagram

Backpack Blower

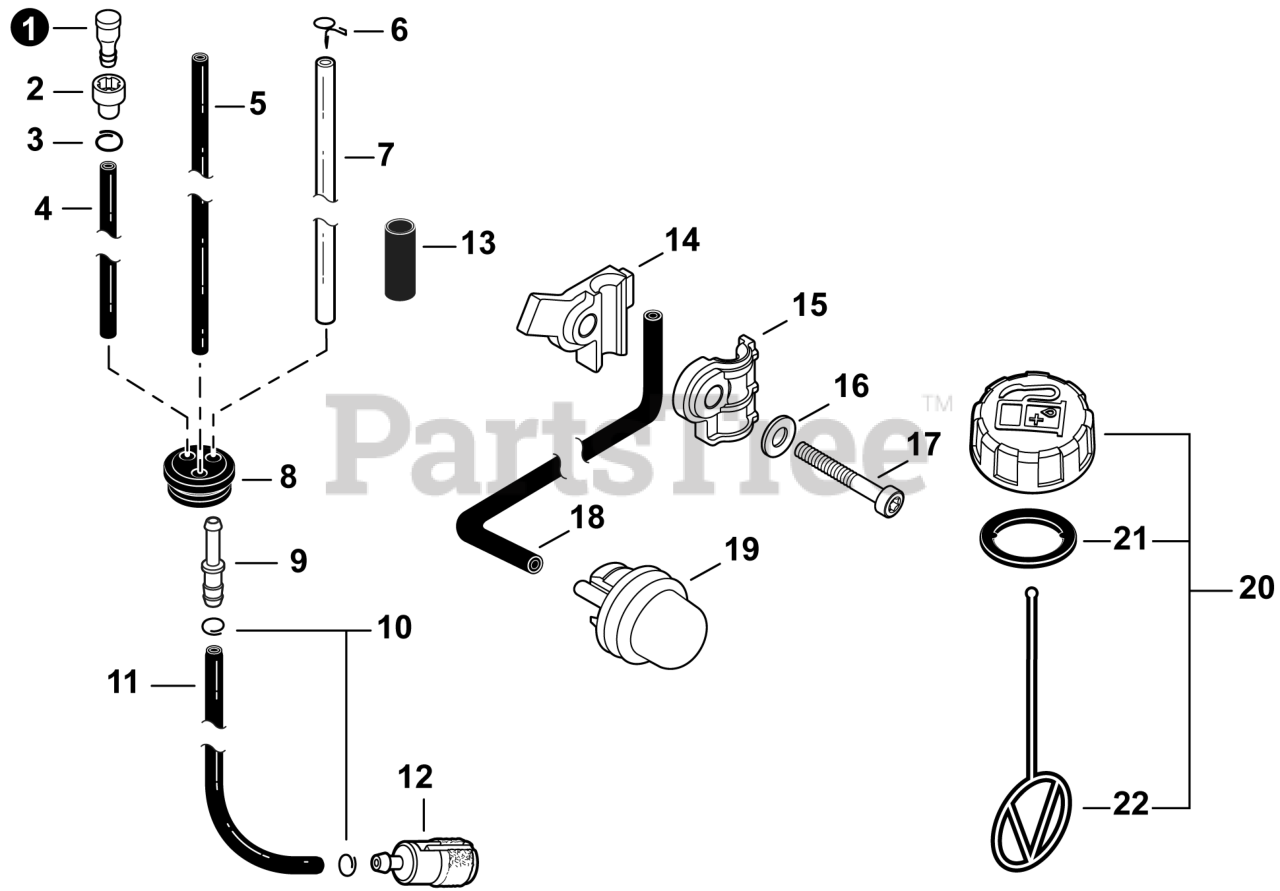

FUEL SYSTEM Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

2

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

0

3

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

4

Echo V471002311

PIPE, FUEL 3×6×130 BLACK

$1.49

$

In Stock, Qty 9

0

5

Echo V471001471

PIPE, FUEL 2.4×5×200 BLACK

$3.99

$

In Stock, only 1 left!

0

6

Echo V490000510

CLIP, SPRING Ø5.2

$0.99

$

In Stock, only 1 left!

0

7

Echo V471005141

PIPE, FUEL, 3.5X6X210 2020

$4.49

$

Usually ships in 2-4 days

0

8

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

9

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

10

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0

11

Echo V470001951

PIPE, FUEL 3×5×105L BLACK

$5.99

$

Usually ships in 2-4 days

0

12

Echo A369000460

FILTER, FUEL

$9.49

$

In Stock, Qty 20+

0

13

Echo V475004401

TUBE, FUEL LINE 16×18×L40

$1.49

$

Usually ships in 2-4 days

0

14

Echo E187000271

CLAMP, LOWER

$1.49

$

Usually ships in 2-4 days

0

15

Echo E187000280

CLAMP, UPPER

$1.49

$

Usually ships in 2-4 days

0

16

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo V805000230

BOLT, TORX 5×25

$1.49

$

In Stock, Qty 6

0

18

Echo V471001241

PIPE, PURGE 2.5×5×140

$3.49

$

In Stock, Qty 13

0

19

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

20

Echo P021040480

CAP ASSY, FUEL

Note: Includes Items 21-22

$5.49

$

In Stock, only 1 left!

0

21

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

22

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0
