EB 770 RT - Shindaiwa Backpack Blower (SN: P52115001001 - P52115999999) CARBURETOR Parts Diagram

Backpack Blower

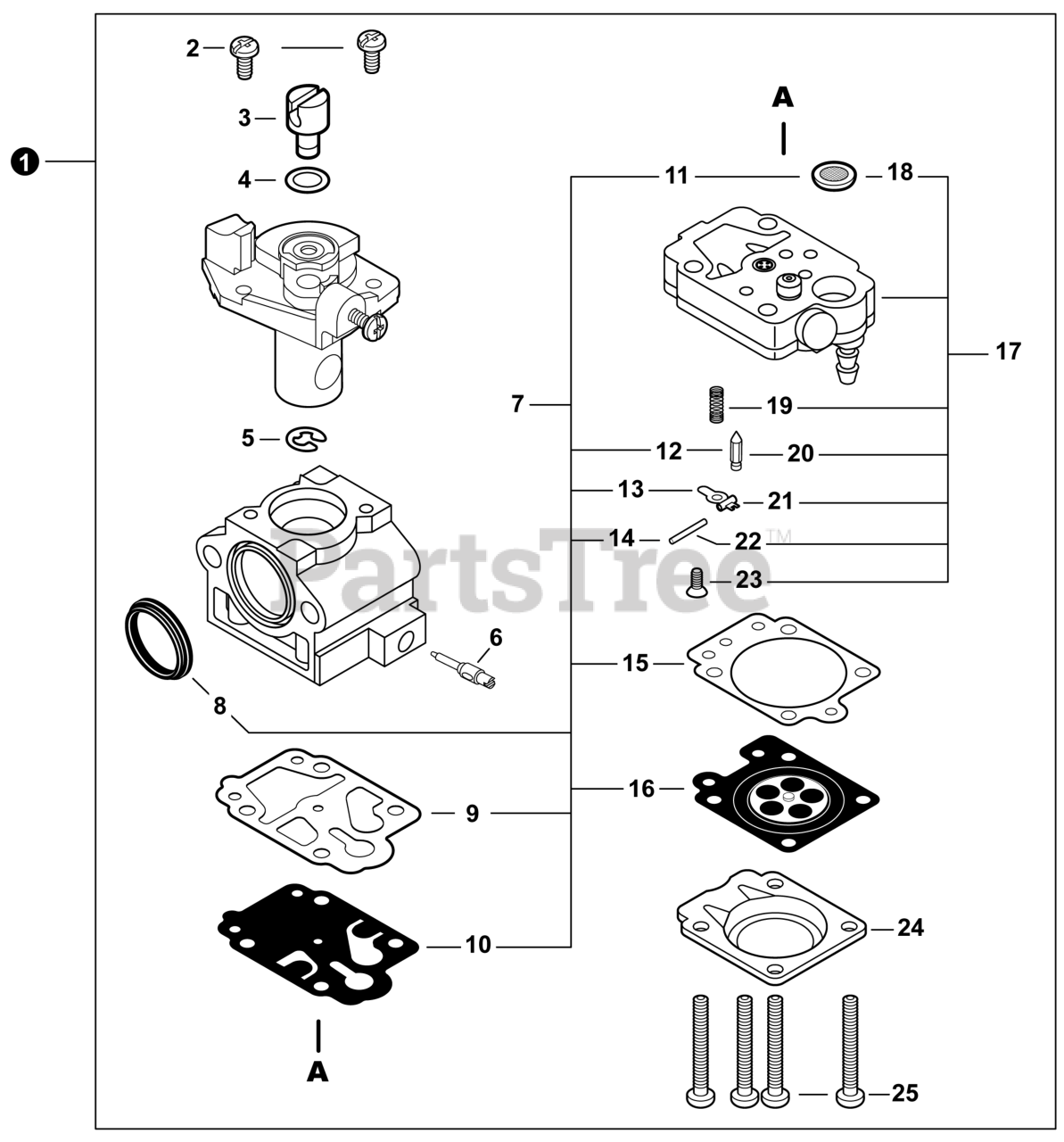

CARBURETOR Parts Diagram

  • Title

1

Echo A021003942

CARBURETOR - WYK-406A

Note: Includes Item 2-25

$99.99

$

In Stock, Qty 8

0

2

Echo P003002400

SCREW

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

4

Echo 12314954230

WASHER

$0.99

$

In Stock, only 1 left!

0

5

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

6

Echo P003005880

NEEDLE, MIXTURE

$7.49

$

Usually ships in 2-4 days

0

7

Echo P003000060

REPAIR KIT, CARBURETOR

Note: Includes Items 8-16

$10.99

$

In Stock, Qty 12

0

8

RING, PACKING

$

$

Not available

9

GASKET, PUMP

$

$

Not available

10

DIAPHRAGM, FUEL PUMP

$

$

Not available

11

SCREEN, FUEL INLET

$

$

Not available

12

VALVE, INLET NEEDLE

$

$

Not available

13

LEVER, METERING

$

$

Not available

14

PIN, METERING LEVER

$

$

Not available

15

GASKET, METERING DIAPHRAGM

$

$

Not available

16

DIAPHRAGM, METERING

$

$

Not available

17

Echo P003005500

BODY ASSY, PUMP

Note: Includes Items 18-23

$21.99

$

Usually ships in 2-4 days

0

18

SCREEN, FUEL INLET

$

$

Not available

19

SPRING, METERING LEVER

$

$

Not available

20

VALVE, INLET NEEDLE

$

$

Not available

21

LEVER, METERING

$

$

Not available

22

PIN, METERING LEVER

$

$

Not available

23

SCREW

$

$

Not available

24

Echo 12314203930

COVER, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

25

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0
