EB 7001 - RedMax Backpack Blower (SN: 40100101 & Above) (2004-08) 006 - LEVER SET Parts Diagram

Backpack Blower

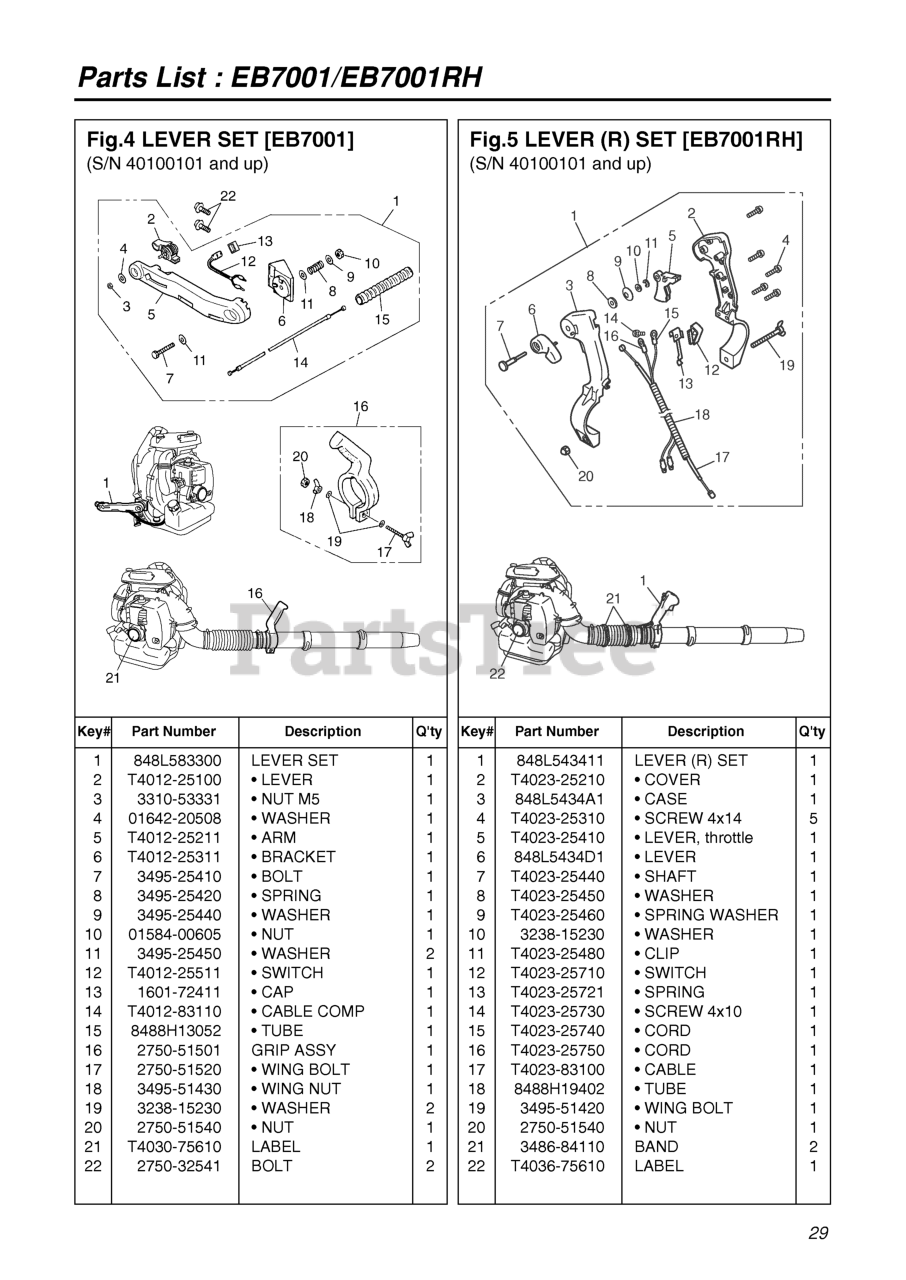

006 - LEVER SET Parts Diagram

  • Title
1

RedMax 848L583300

LEVER SET (RPLS. T4012-25001)
(Superseded to 502842901)

$34.99

$

Usually ships in 3-10 days

0

2

RedMax T401225100

LEVER
(Superseded to 512647801)

$48.99

$

In Stock, only 3 left!

0

3

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$4.99

$

In Stock, only 4 left!

0

4

RedMax 0164220508

WASHER, M5x.8(RPLS 01624-20508
(Superseded to 544276501)

$

$

Not available

5

RedMax T401225211

ARM (RPLS T4012-25210)
(Superseded to 544276601)

$24.99

$

Usually ships in 3-10 days

0

6

RedMax T401225311

BRACKET (RPLS -25310)
(Superseded to 512648101)

$12.99

$

In Stock, only 1 left!

0

7

RedMax 349525410

BOLT
(Superseded to 514336201)

$4.99

$

In Stock, only 4 left!

0

8

RedMax 349525420

SPRING
(Superseded to 514336301)

$4.99

$

In Stock, only 3 left!

0

9

RedMax 349525440

WASHER
(Superseded to 514336501)

$3.49

$

In Stock, only 3 left!

0

10

RedMax 0158400605

NUT, M6 X 5
(Superseded to 521519601)

$3.49

$

In Stock, Qty 7

0

11

RedMax 349525450

WASHER, FLAT
(Superseded to 514336701)

$3.99

$

In Stock, Qty 6

0

12

RedMax T401225511

SWITCH (RPLS T4012-25510)
(Superseded to 544277301)

$

$

Not available

13

RedMax 160172411

CAP SWITCH
(Superseded to 513351901)

$4.99

$

Usually ships in 3-10 days

0

14

RedMax T401283110

CABLE COMPLETE
(Superseded to 544277501)

$12.99

$

In Stock, Qty 9

0

15

RedMax 8488H13052

TUBE (REPLACES T4012-25610)
(Superseded to 544277601)

$26.99

$

In Stock, only 1 left!

0

16

RedMax 275051501

GRIP ASSEMBLY (RPLS -51500)
(Superseded to 513670501)

$44.99

$

Usually ships in 3-10 days

0

17

RedMax 275051520

WING BOLT
(Superseded to 510909801)

$

$

Not available

18

RedMax 349551430

NUT, WING
(Superseded to 521149401)

$6.49

$

In Stock, Qty 7

0

19

RedMax 323815230

WASHER
(Superseded to 520921901)

$4.99

$

In Stock, only 1 left!

0

20

RedMax 275051540

NUT
(Superseded to 513671401)

$7.49

$

In Stock, Qty 5

0

21

RedMax T403075610

RECOIL LABEL, EB7001
(Superseded to 526116101)

$

$

Not available

22

RedMax 275032541

BOLT, M5 X 16 (RPLS -32540)
(Superseded to 516875401)

$4.99

$

In Stock, only 2 left!

0
