EB 633 RT - Shindaiwa Backpack Blower (SN: P53214001001 - P53214999999) FUEL SYSTEM Parts Diagram

Backpack Blower

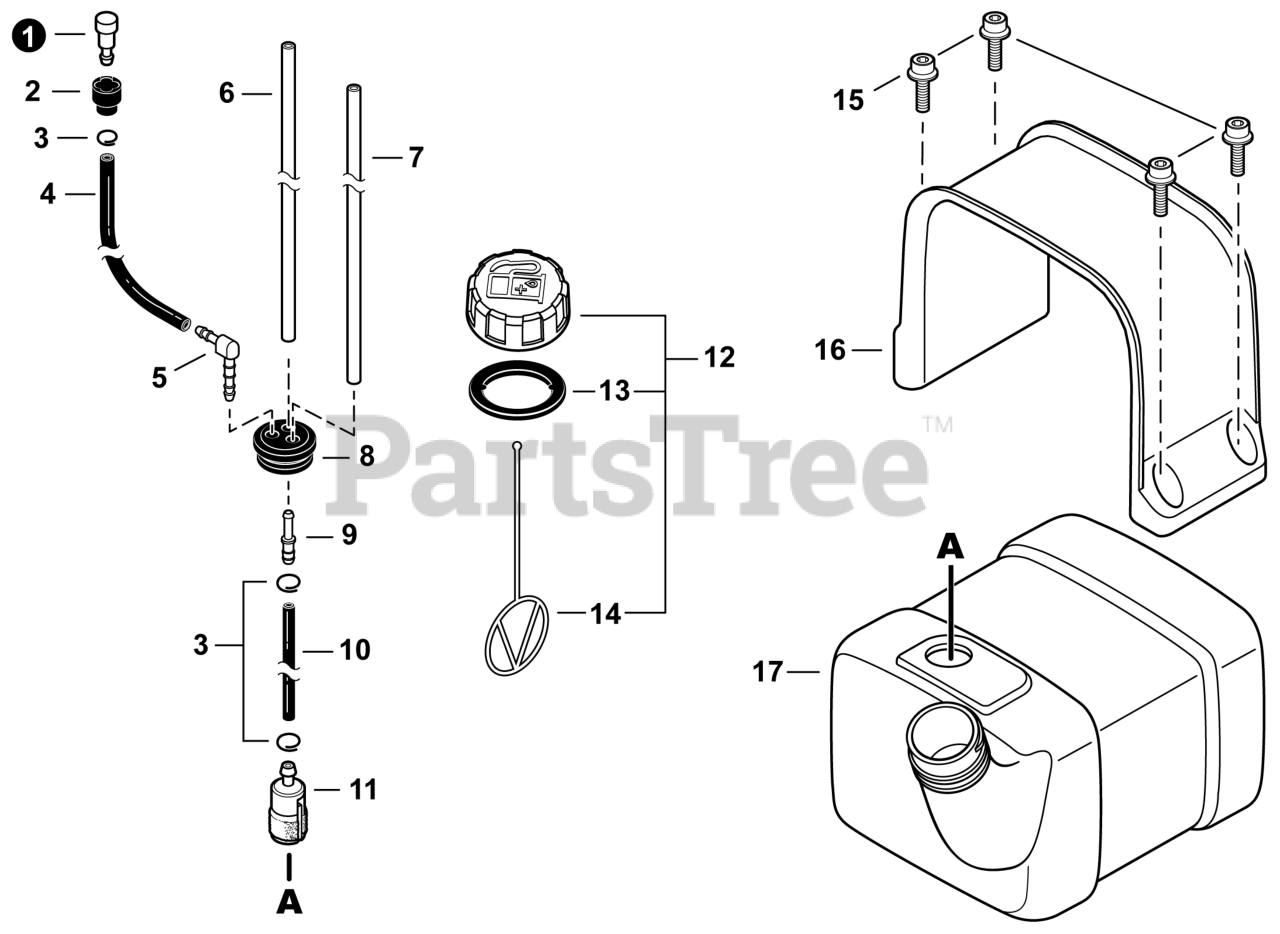

FUEL SYSTEM Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

2

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

0

3

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

4

Echo V471000611

PIPE, VENT 3x6x145 BLACK

$2.49

$

In Stock, Qty 7

0

5

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 15

0

6

Echo V471005700

PIPE, FUEL 3.5x6x110 CLEAR

$4.49

$

Usually ships in 2-4 days

0

7

Echo V471000550

PIPE, FUEL RETURN 3x6x145 YELLOW

$1.99

$

In Stock, Qty 9

0

8

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

9

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

10

Echo 13201202961

PIPE, FUEL 3x6x120 BLACK
(Superseded to V471005820)

$1.49

$

In Stock, only 1 left!

0

11

Echo A369000440

FILTER, FUEL

$6.99

$

In Stock, Qty 20+

0

12

Echo P021040480

CAP ASSY, FUEL

Note: Includes Items 13-14

$5.49

$

In Stock, only 1 left!

0

13

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

15

Echo 90010605016

BOLT 5x16

$0.99

$

Usually ships in 2-4 days

0

16

Echo A392000000

BRACKET, FUEL TANK

$4.99

$

In Stock, only 2 left!

0

17

Echo A350002531

TANK, FUEL

$22.99

$

In Stock, only 1 left!

0
