EB 633 RT - Shindaiwa Backpack Blower (SN: P45314001001 - P45314999999) FUEL SYSTEM Parts Diagram

Backpack Blower

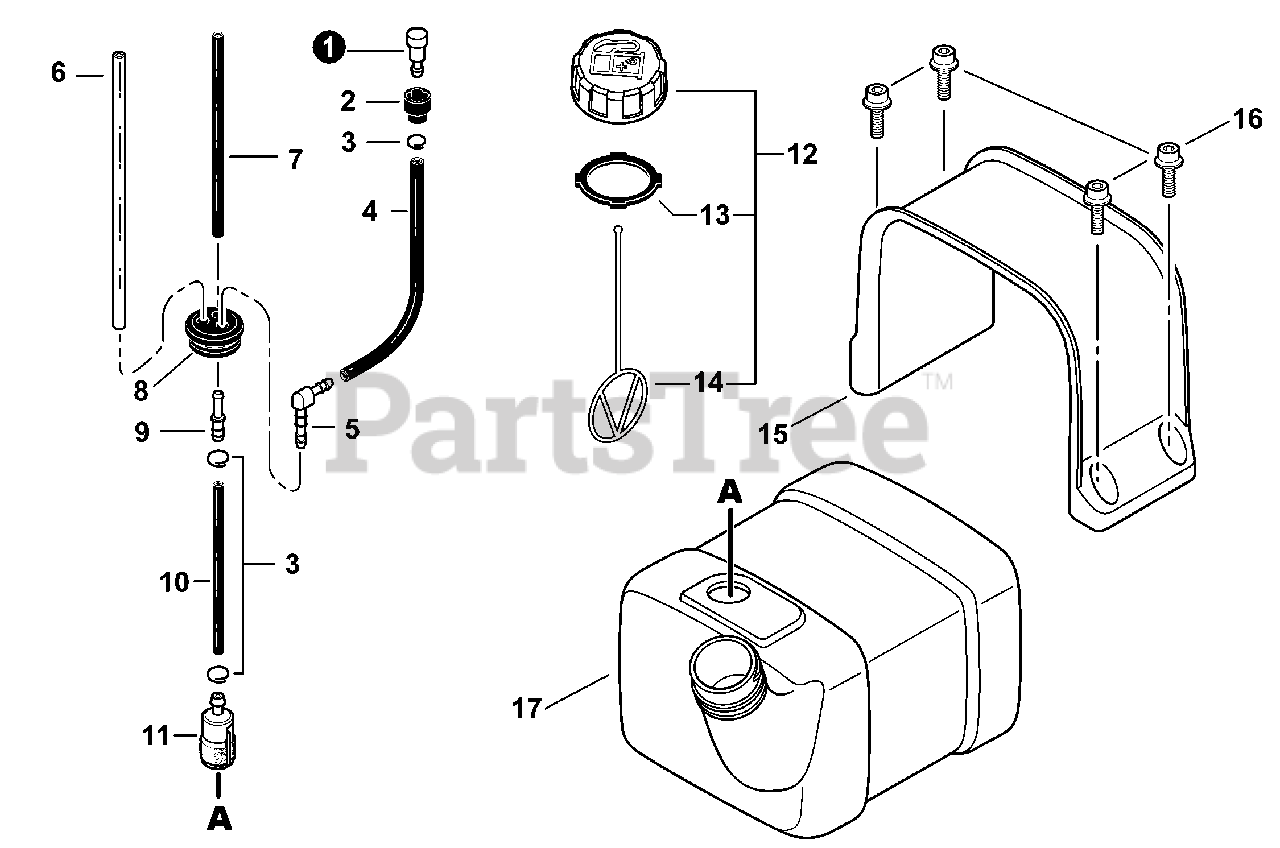

FUEL SYSTEM Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

2

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

0

3

Echo V490001230

CLIP 6.5MM

$0.99

$

In Stock, Qty 20+

0

4

Echo V471000610

PIPE, VENT 3×6×145mm
(Superseded to V471000611)

$2.49

$

In Stock, Qty 11

0

5

Echo V186000500

CONNECTOR, PIPE 5.4

$0.99

$

In Stock, Qty 20+

0

6

Echo V471000550

PIPE, FUEL RETURN 3×6×145

$1.99

$

In Stock, Qty 13

0

7

Echo V471003570

PIPE, FUEL 3×5×110

$4.49

$

In Stock, only 2 left!

0

8

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

9

Echo V186000520

CONNECTOR, PIPE 5×3.5

$0.99

$

In Stock, Qty 20+

0

10

Echo 13201202960

PIPE, FUEL 3×6×120
(Superseded to 13201202961)

$4.49

$

Usually ships in 2-4 days

0

11

Echo A369000001

FILTER, FUEL
(Superseded to A369000440)

$6.99

$

In Stock, Qty 20+

0

12

Echo P021040480

CAP ASSY, FUEL

Note: Includes Items 13-14

$5.49

$

In Stock, only 1 left!

0

13

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

15

Echo A392000000

BRACKET, FUEL TANK

$4.99

$

In Stock, only 2 left!

0

16

Echo 90010605016

BOLT 5×16

$0.99

$

Usually ships in 2-4 days

0

17

Echo A350000870

TANK, FUEL
(Superseded to A350002530)

$22.99

$

In Stock, only 1 left!

0
