EB 633 RT - Shindaiwa Backpack Blower (SN: P02511001001 - P02511999999) FUEL SYSTEM Parts Diagram

Backpack Blower

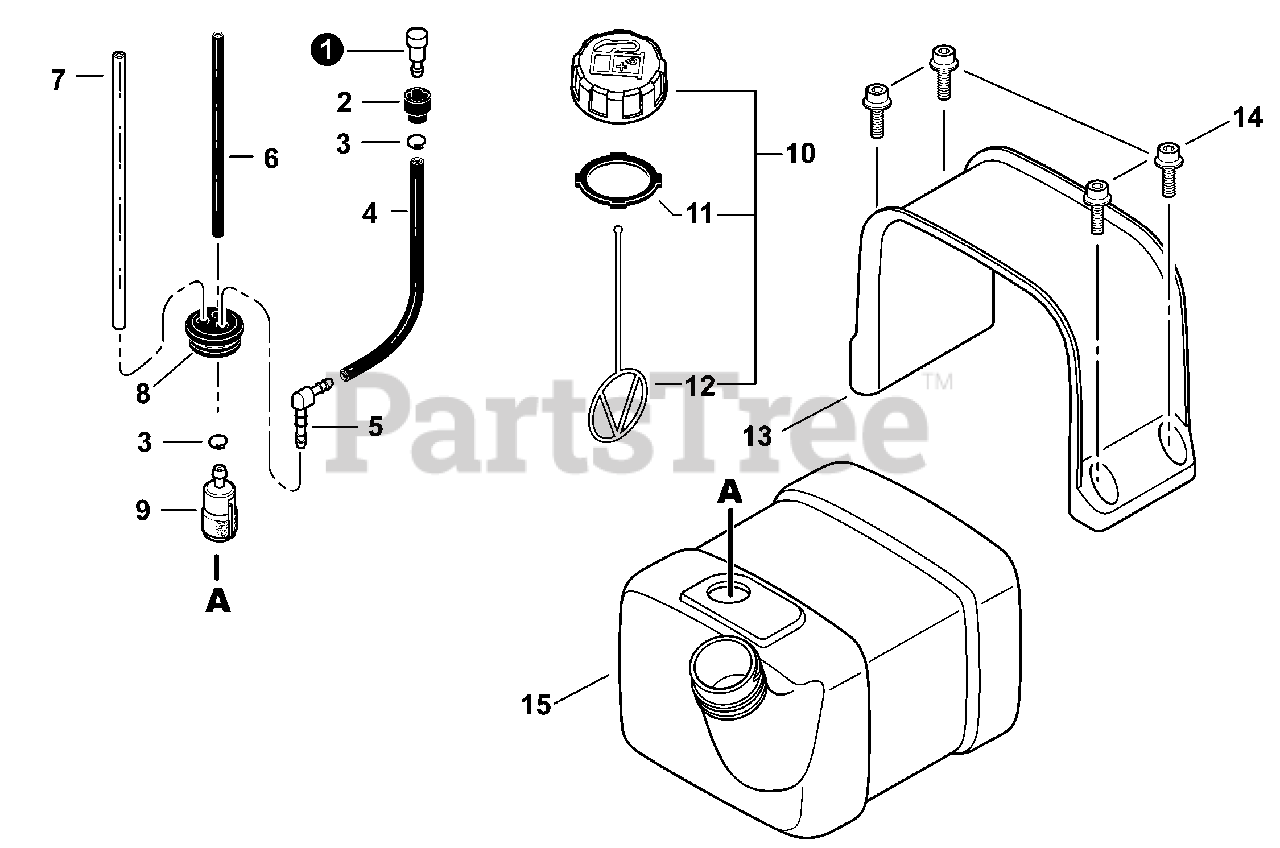

FUEL SYSTEM Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

2

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

0

3

Echo 13201326630

CLIP 6.5MM
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

4

Echo V471000610

PIPE, VENT 3×6×145mm
(Superseded to V471000611)

$2.49

$

In Stock, Qty 7

0

5

Echo V186000080

CONNECTOR, PIPE 5.4
(Superseded to V186000500)

$0.99

$

In Stock, Qty 15

0

6

Echo 13201035430

PIPE, FUEL 3×6×230
(Superseded to 13201035431)

$7.99

$

Usually ships in 2-4 days

0

7

Echo V471000550

PIPE, FUEL RETURN 3×6×145

$1.99

$

In Stock, Qty 9

0

8

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

9

Echo A369000000

FILTER, FUEL 125-528
(Superseded to A369000001)

$6.99

$

In Stock, Qty 20+

0

10

Echo P021014060

CAP ASSY, FUEL
(Superseded to P021014061)

Note: Includes Items 11-12

$9.99

$

Usually ships in 2-4 days

0

11

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

12

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

13

Echo A392000000

BRACKET, FUEL TANK

$4.99

$

In Stock, only 2 left!

0

14

Echo 90010605016

BOLT 5×16

$0.99

$

Usually ships in 2-4 days

0

15

Echo A350000870

TANK, FUEL
(Superseded to A350002530)

$22.99

$

In Stock, only 1 left!

0
