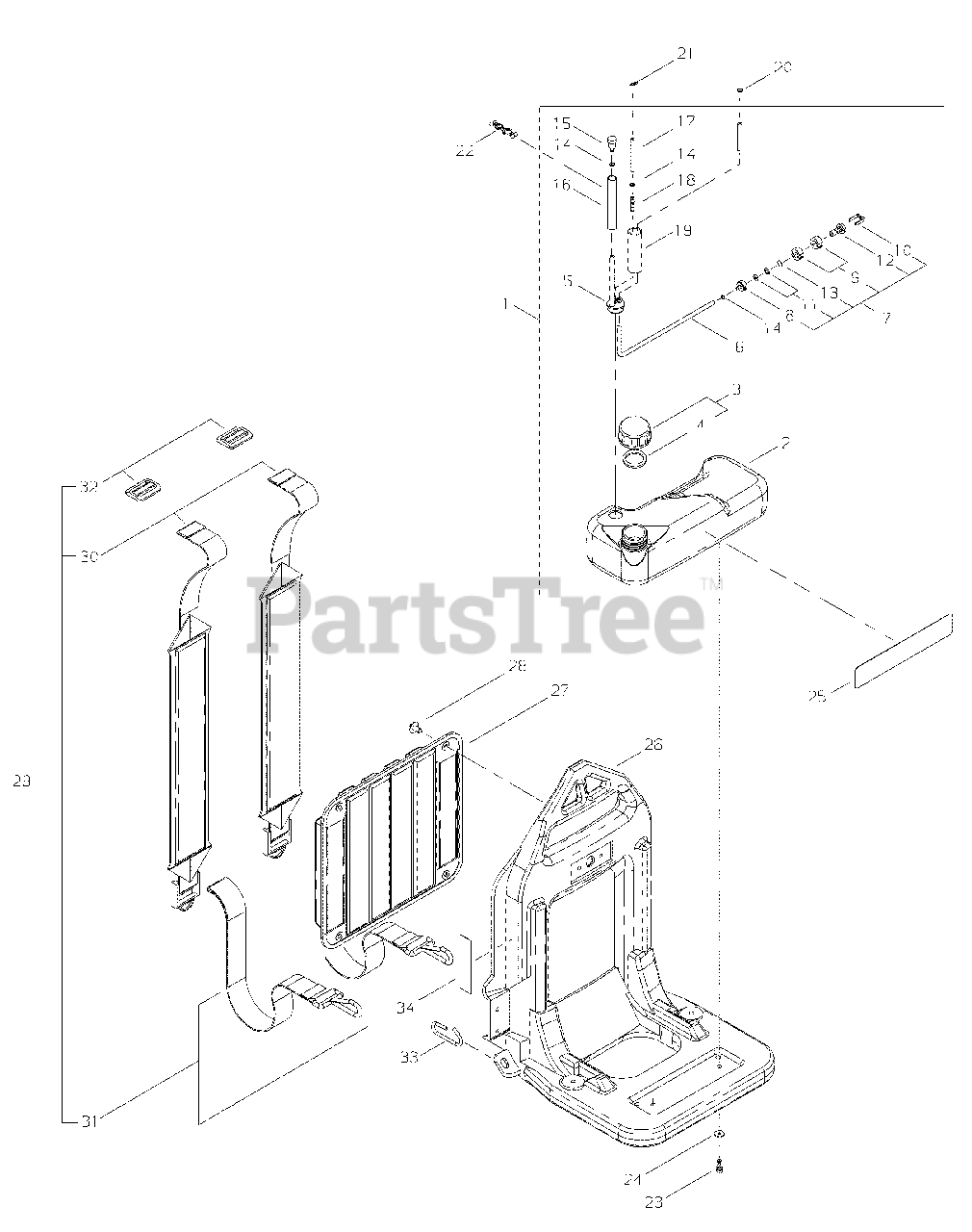

EB 630 - Shindaiwa Backpack Blower (EPA Version) Fuel Tank, Strap Parts Diagram

Backpack Blower (EPA Version)

Fuel Tank, Strap Parts Diagram

  • Title

1

Echo 68206-85011

FUEL TANK ASSY
(Superseded to A038000050)

Note: Includes ITEMS 2-19

$

$

Not available

2

Echo 68206-85110

TANK, FUEL
(Superseded to A350001050)

$22.99

$

In Stock, only 1 left!

0

3

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

Note: Includes ITEM 4

$3.99

$

In Stock, Qty 12

0

4

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 17

0

5

Echo V470000890

PIPE ASSY

$5.99

$

In Stock, Qty 9

0

6

Echo 68206-85340

PIPE - FUEL
(Superseded to V471002370)

$2.49

$

In Stock, Qty 7

0

7

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

Note: Includes ITEMS 8-13

$9.49

$

In Stock, Qty 20+

0

8

Echo 22128-85410

WEIGHT, FUEL FILTER
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

9

Echo 22128-85421

FILTER, FUEL
(Superseded to A371000000)

$2.99

$

In Stock, Qty 14

0

10

Echo 22128-85440

CLIP, FILTER
(Superseded to V490000750)

$9.49

$

In Stock, Qty 20+

0

11

Echo 22118-85460

SCREEN, FILTER
(Superseded to A371000010)

$9.49

$

In Stock, Qty 20+

0

12

Echo 22128-85470

CASE, FILTER
(Superseded to A372000000)

$

$

Not available

13

Echo 22128-85480

RING, RETAINING
(Superseded to V583000200)

$9.49

$

In Stock, Qty 20+

0

14

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

15

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

16

Echo 72935-85530

TUBE
(Superseded to V471002420)

$1.99

$

In Stock, only 2 left!

0

17

Echo 68206-85320

TUBE - 5X3X110
(Superseded to V471002400)

$

$

Not available

18

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, only 4 left!

0

19

Echo 68206-85330

SLEEVE X12 X X11 X L70
(Superseded to V471002470)

$0.99

$

In Stock, Qty 9

0

20

Echo 37013-85310

CLIP - SPRING
(Superseded to V490000510)

$0.99

$

In Stock, only 1 left!

0

21

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

22

Echo 72935-85550

CLIP
(Superseded to V491000250)

$0.99

$

In Stock, Qty 10

0

23

Echo 11060-05140

SCREW - 5X14
(Superseded to V203000470)

$1.99

$

Usually ships in 2-4 days

0

24

Echo 15401-10010

COLLAR
(Superseded to V303000140)

$0.99

$

In Stock, Qty 8

0

25

Echo 68206-91021

LABEL - TRADE
(Superseded to X543001230)

$

$

Not available

26

Echo 68206-86111

FRAME
(Superseded to C620000360)

$65.99

$

Usually ships in 2-4 days

0

27

Echo 72935-86120

PAD
(Superseded to C630000080)

$29.99

$

Usually ships in 2-4 days

0

28

Echo 72935-86130

CLIP
(Superseded to V491000240)

$0.99

$

In Stock, Qty 10

0

29

Echo 68206-87010

HARNESS ASSY
(Superseded to C061000280)

Note: Includes ITEMS 30-32

$

$

Not available

30

Echo 68206-87110

STRAP, BACKPACK
(Superseded to C640000050)

$

$

Not available

31

Echo 72935-87120

STRAP
(Superseded to C640000020)

$4.99

$

In Stock, Qty 9

0

32

Echo 72451-17230

BUCKLE
(Superseded to C645000000)

$1.99

$

In Stock, Qty 14

0

33

Echo 72935-87310

HOOK, SPRING
(Superseded to C646000070)

$1.99

$

Usually ships in 2-4 days

0

34

Echo 19402-00290

LABEL - CAUTION
(Superseded to X505002750)

$3.99

$

Usually ships in 2-4 days

0
