EB 630 - Shindaiwa Backpack Blower (EPA Version) Air Filter Parts Diagram

Backpack Blower (EPA Version)

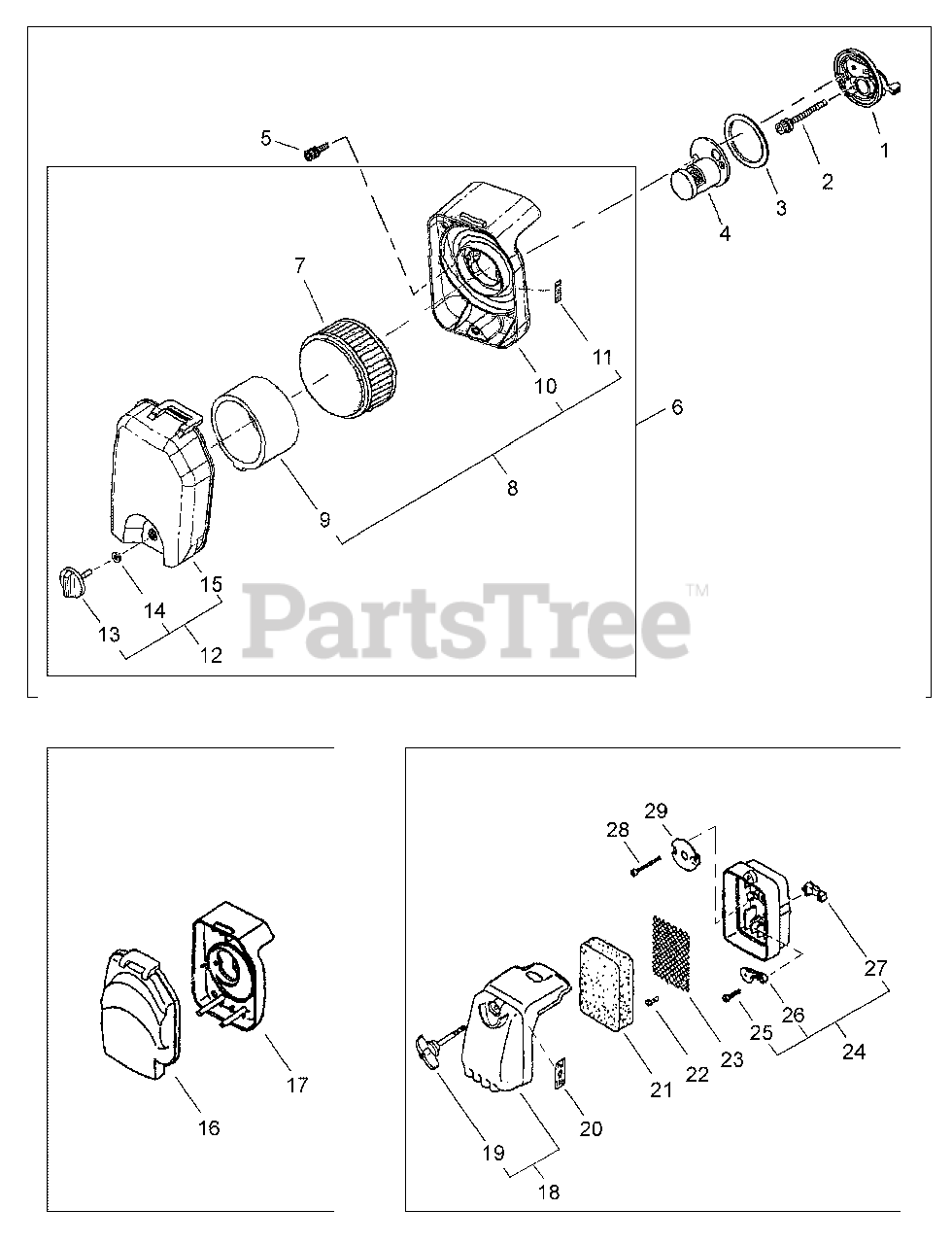

Air Filter Parts Diagram

  • Title

1

Echo 72935-81501

CHOKE ASSY
(Superseded to A221000030)

Note: AFTER S/N: 0065224-3080000

$19.99

$

In Stock, Qty 9

0

2

Echo 11020-05500

SCREW - 5X50
(Superseded to V203000850)

Note: AFTER S/N: 0065224-3080000

$1.99

$

In Stock, Qty 13

0

3

Echo 72935-82210

GASKET
(Superseded to V103000600)

Note: AFTER S/N: 0065224-3080000

$1.99

$

In Stock, Qty 8

0

4

Echo 72935-82130

ADAPTOR, INTAKE
(Superseded to A239000080)

Note: AFTER S/N: 0065224-3080000

$10.99

$

In Stock, only 1 left!

0

5

Echo 11024-04140

SCREW - 4X14
(Superseded to V202000150)

Note: AFTER S/N: 0065224-3080000

$0.99

$

In Stock, Qty 5

0

6

Echo 68206-98321

AIR FILTER ASSY - BLACK
(Superseded to P021029320)

Note: Includes ITEMS 7-15

$

$

Not available

7

Echo 68206-82400

FILTER, AIR
(Superseded to A226000510)

Note: AFTER S/N: 0065224-3080000

$36.99

$

In Stock, Qty 6

0

8

Echo 80801

AIR FILTER KIT
(Superseded to P021029320)

Note: Includes ITEMS 9-11

$

$

Not available

9

Echo 60035-98070

PRE-FILTER
(Superseded to A226000520)

$3.49

$

In Stock, only 1 left!

0

10

Echo 68206-82392

CASE, AIR FILTER
(Superseded to A225000380)

$11.99

$

In Stock, only 1 left!

0

11

Echo 19404-00008

LABEL - CHOKE
(Superseded to X506000130)

$0.99

$

In Stock, Qty 20+

0

12

Echo 68206-82031

AIR FILTER COVER ASSY
(Superseded to A232000590)

Note: Includes ITEMS 13-15

$28.99

$

Usually ships in 2-4 days

0

13

Echo A235000270

THUMBSCREW

$6.49

$

In Stock, only 3 left!

0

14

Echo V323000080

WASHER - VINYL

$0.99

$

In Stock, Qty 12

0

15

Echo 68206-82132

COVER, AIR FILTER - BLACK
(Superseded to A232000600)

$8.99

$

In Stock, only 1 left!

0

16

Echo 72935-82120

COVER, AIR FILTER
(Superseded to A232000580)

Note: BEFORE S/N: 0065224-3080000

$16.99

$

In Stock, Qty 6

0

17

Echo 68206-82390

CASE, AIR FILTER
(Superseded to 80801)

Note: BEFORE S/N: 0065224-3080000

$

$

Not available

18

Echo 68206-82040

AIR FILTER COVER ASSY
(Superseded to Discontinued)

Note: Includes ITEM 19

$

$

Not available

19

Echo 68206-82380

THUMBSCREW

Note: BEFORE S/N: 0065224

$11.99

$

Usually ships in 2-4 days

0

20

Echo 68206-82340

LABEL - CHOKE

Note: BEFORE S/N: 0065224

$2.49

$

Usually ships in 2-4 days

0

21

Echo 80019

FILTER, AIR
(Superseded to Discontinued)

Note: BEFORE S/N: 0065224

$

$

Not available

22

Echo 68206-82370

SCREW - TAPPING

Note: BEFORE S/N: 0065224

$1.99

$

Usually ships in 2-4 days

0

23

Echo 68206-82360

SCREEN, SPARK ARRESTOR

Note: BEFORE S/N: 0065224

$26.99

$

Usually ships in 2-4 days

0

24

Echo 68206-82010

CASE, AIR FILTER
(Superseded to P021029320)

Note: Includes ITEMS 25-27

$

$

Not available

25

Echo 68206-82330

SCREW

$1.99

$

Usually ships in 2-4 days

0

26

Echo 68206-82310

PLATE, SHUTTER

$15.99

$

Usually ships in 2-4 days

0

27

Echo 68206-82320

LEVER, CHOKE

$11.99

$

Usually ships in 2-4 days

0

28

Echo 11206-05600

SCREW - 5X60

Note: BEFORE S/N: 0065224

$2.99

$

Usually ships in 2-4 days

0

29

Echo 68206-82350

PLATE, PREVENT

Note: BEFORE S/N: 0065224

$30.99

$

Usually ships in 2-4 days

0
