EB 6200 - RedMax Backpack Blower (SN: 826551 & Above) (1999-03) 016 - BLOWER GROUP Parts Diagram

Backpack Blower

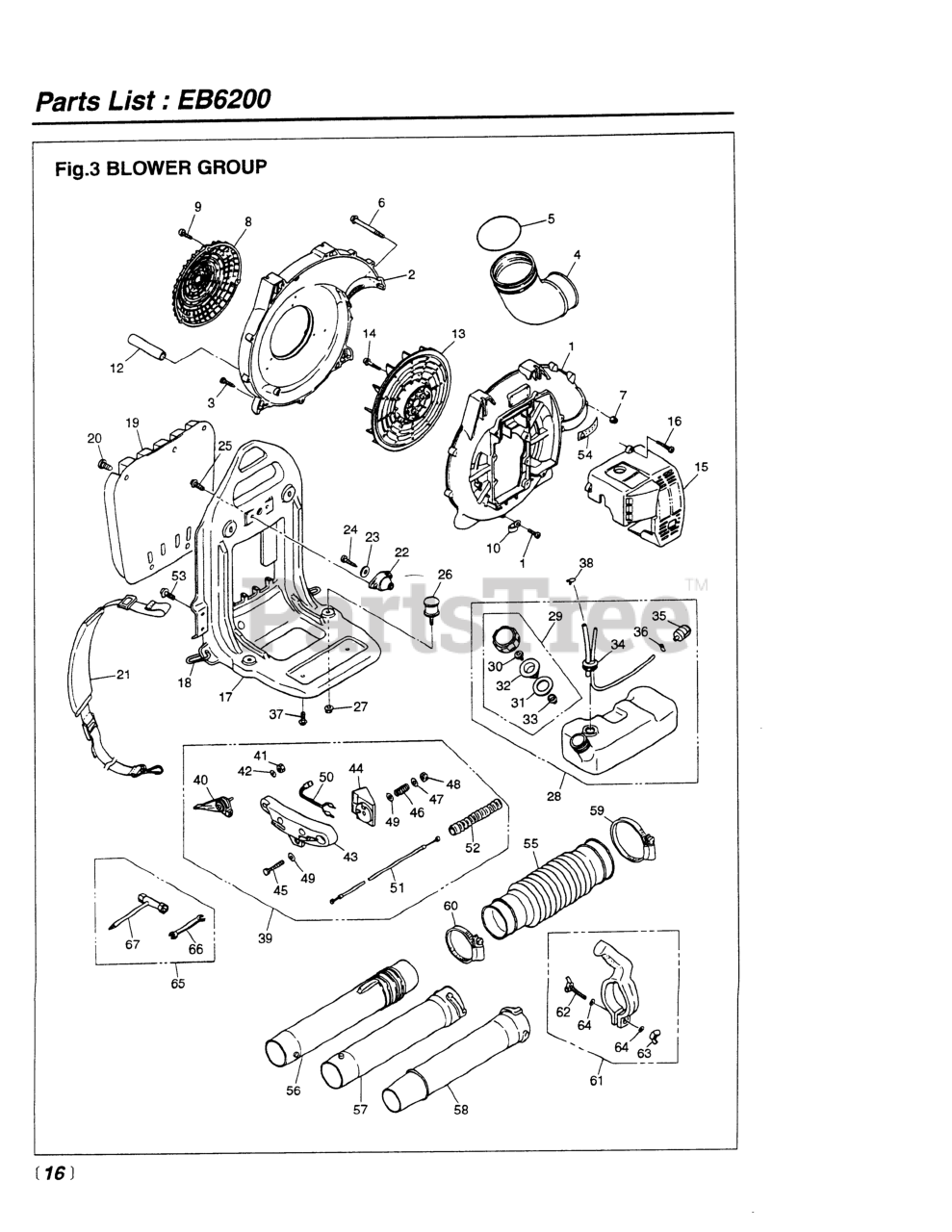

016 - BLOWER GROUP Parts Diagram

  • Title

1

RedMax 275031110

2750-31111
(Superseded to 513664301)

$96.99

$

Usually ships in 3-10 days

0

2

RedMax 275031210

COVER, VOLUTE
(Superseded to 516869101)

$

$

Not available

3

RedMax 275031150

SCREW, M5 X 25
(Superseded to 516869001)

$3.49

$

Usually ships in 3-10 days

0

4

RedMax 349011150

2751-31410
(Superseded to 513675101)

$

$

Not available

5

RedMax 0700002095

O-RING
(Superseded to 544264501)

$4.99

$

In Stock, only 2 left!

0

6

RedMax 275031420

SCREW, M5 X 70
(Superseded to 513665501)

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$4.99

$

In Stock, only 4 left!

0

8

RedMax 275031310

COVER, INLET

$

$

Not available

9

RedMax 275031150

SCREW, M5 X 25
(Superseded to 516869001)

$3.49

$

Usually ships in 3-10 days

0

10

RedMax 114072231

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 340716120

SCREW

$0.24

$

Usually ships in 3-10 days

0

12

RedMax 275031290

TUBE (RPLS. 07270-01507)
(Superseded to 516869801)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 275031510

FAN
(Superseded to 544265001)

$84.99

$

Usually ships in 3-10 days

0

14

RedMax 340712210

BOLT (RPLS 3405-12211)
(Superseded to 521114901)

$

$

Not available

15

RedMax 275031612

COVER, ENGINE (RPLS -31611)
(Superseded to 513666001)

$37.99

$

Usually ships in 3-10 days

0

16

RedMax 275031150

SCREW, M5 X 25
(Superseded to 516869001)

$3.49

$

Usually ships in 3-10 days

0

17

RedMax 275632100

T4012-32100
(Superseded to 511782501)

$74.99

$

Usually ships in 3-10 days

0

18

RedMax 349021120

RING (USE -21121)
(Superseded to 521142801)

$4.99

$

In Stock, Qty 14

0

19

RedMax 346021311

PAD (RPLS -21310)
(Superseded to 514314001)

$

$

Not available

20

RedMax 349521320

CLIP (RPLS 3490-21320)
(Superseded to 526476701)

$4.99

$

In Stock, Qty 20+

0

21

RedMax 275632300

BAND ASSY (RPLS 2750- )
(Superseded to 511709601)

$34.99

$

Usually ships in 3-10 days

0

22

RedMax 275032510

DAMPER, UPPER
(Superseded to 513666701)

$13.99

$

In Stock, only 2 left!

0

23

RedMax 275032520

WASHER
(Superseded to 516875001)

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 275032530

SCREW
(Superseded to 513667001)

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 275032540

BOLT, M5 X 16 (USE -32541)
(Superseded to 516875401)

$4.99

$

In Stock, only 2 left!

0

26

RedMax 275032610

DAMPER, LOWER
(Superseded to 516875701)

$

$

Not available

27

RedMax 275032620

NUT, M6
(Superseded to 513667501)

$4.99

$

In Stock, Qty 6

0

28

RedMax 275685100

2756-85101
(Superseded to 516899001)

$62.99

$

In Stock, only 2 left!

0

29

RedMax 455085200

4500-85200

$

$

Not available

30

RedMax 560085250

VALVE (NLA WHEN OUT)
(Superseded to 521376101)

Note: Context Note: @ÿ

$

$

Not available

31

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

Usually ships in 3-10 days

0

32

RedMax 450085230

HOLDER (USE -85300)
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

33

RedMax 560085240

HOLDER, CAP

$1.24

$

Usually ships in 3-10 days

0

34

RedMax 275085300

PIPE COMP.(RPLS 2756-85300)
(Superseded to 516879801)

$14.99

$

Usually ships in 3-10 days

0

35

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

36

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, Qty 5

0

37

RedMax 340723610

SCREW, M5 x 12
(Superseded to 514285201)

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 110086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, Qty 10

0

39

RedMax 340725000

LEVER SET

$

$

Not available

40

RedMax 349525110

LEVER, THROTTLE
(Superseded to 514335901)

$13.99

$

Usually ships in 3-10 days

0

41

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$4.99

$

In Stock, only 4 left!

0

42

RedMax 0164220508

WASHER, M5x.8(RPLS 01624-20508
(Superseded to 544276501)

$

$

Not available

43

RedMax 349525212

ARM (RPLS -25211)
(Superseded to 521147701)

$

$

Not available

44

RedMax 349525310

BRACKET
(Superseded to 514336101)

$

$

Not available

45

RedMax 349525410

BOLT
(Superseded to 514336201)

$4.99

$

In Stock, only 4 left!

0

46

RedMax 349525420

SPRING
(Superseded to 514336301)

$4.99

$

In Stock, only 3 left!

0

47

RedMax 349525440

WASHER
(Superseded to 514336501)

$3.49

$

In Stock, only 3 left!

0

48

RedMax 0158400605

NUT, M6 X 5
(Superseded to 521519601)

$3.49

$

In Stock, Qty 7

0

49

RedMax 349525450

WASHER, FLAT
(Superseded to 514336701)

$3.99

$

In Stock, Qty 6

0

50

RedMax 349525510

SWITCH, STOP
(Superseded to 514336801)

$14.99

$

Usually ships in 3-10 days

0

51

RedMax 340783110

CABLE, THROTTLE
(Superseded to 502842901)

$34.99

$

Usually ships in 3-10 days

0

52

RedMax 349525810

TUBE (USE 5548-73310)
(Superseded to 515434901)

$

$

Not available

53

RedMax 275032540

BOLT, M5 X 16 (USE -32541)
(Superseded to 516875401)

$4.99

$

In Stock, only 2 left!

0

54

RedMax 275031910

LABEL, CAUTION
(Superseded to 516873201)

$3.49

$

Usually ships in 3-10 days

0

55

RedMax 275051110

T4017-51110
(Superseded to 504065101)

$31.99

$

In Stock, only 1 left!

0

56

RedMax 275051200

JOINT, SWIVEL (USE 51201)
(Superseded to 504064801)

$11.99

$

In Stock, Qty 9

0

57

RedMax 681151210

6811-51211
(Superseded to 577079301)

$7.99

$

In Stock, Qty 13

0

58

RedMax 681151220

PIPE, END
(Superseded to 521672301)

$17.99

$

In Stock, only 2 left!

0

59

RedMax 275651510

CLAMP (RPLS 3490- )
(Superseded to 526343301)

$5.99

$

Usually ships in 3-10 days

0

60

RedMax 275651520

CLAMP (RPLS 3050-13230)
(Superseded to 574006101)

$

$

Not available

61

RedMax 275051500

GRIP ASSEMBLY (USE 2750-51501)
(Superseded to 513670501)

$44.99

$

Usually ships in 3-10 days

0

62

RedMax 349551420

BOLT, WING
(Superseded to 514338401)

$6.49

$

In Stock, only 1 left!

0

63

RedMax 349551430

NUT, WING
(Superseded to 521149401)

$6.49

$

In Stock, Qty 7

0

64

RedMax 323815230

WASHER
(Superseded to 520921901)

$4.99

$

In Stock, only 1 left!

0

65

RedMax 275091000

TOOL SET

$13.04

$

Usually ships in 3-10 days

0

66

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

67

RedMax 275091130

WRENCH, SOCKET

$9.13

$

Usually ships in 3-10 days

0
