EB 6200 - RedMax Backpack Blower (1996-11) 012 - ENGINE GROUP Parts Diagram

Backpack Blower

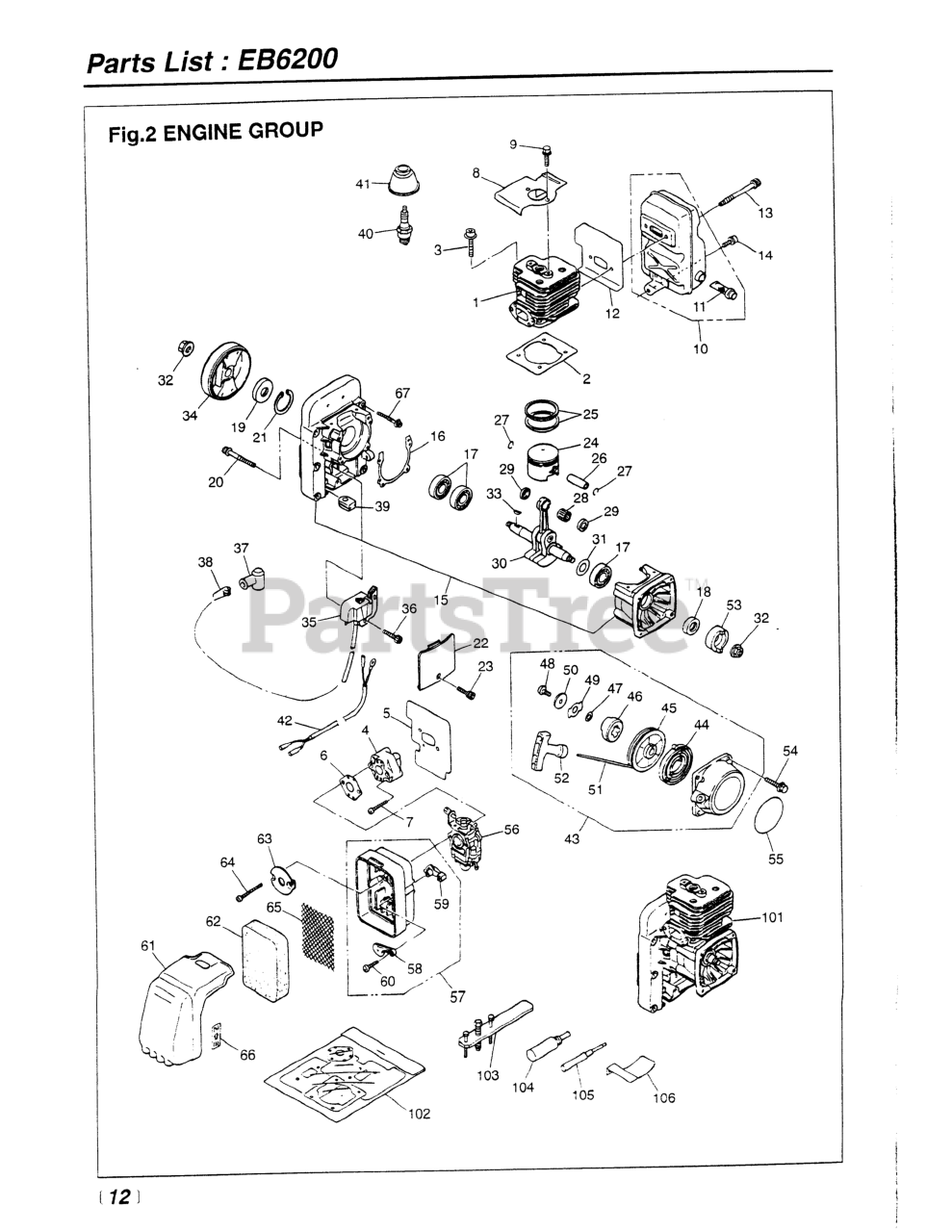

012 - ENGINE GROUP Parts Diagram

  • Title
1

RedMax 275012110

2750-12111
(Superseded to 513661901)

$

$

Not available

2

RedMax 275012210

GASKET, BASE
(Superseded to 513662601)

$5.99

$

Usually ships in 3-10 days

0

$1.39

$

Usually ships in 3-10 days

0

4

RedMax 148413160

1484-13161
(Superseded to 513284601)

$21.99

$

Usually ships in 3-10 days

0

5

RedMax 275013130

GASKET
(Superseded to 513662901)

$9.99

$

Usually ships in 3-10 days

0

6

RedMax 146013132

GASKET, CARB (RPLS -13131)
(Superseded to 513267001)

$4.99

$

In Stock, Qty 11

0

7

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

8

RedMax 275012510

COVER
(Superseded to 513662701)

$8.99

$

Usually ships in 3-10 days

0

9

RedMax 275012520

BOLT, M5 x 10
(Superseded to 516865401)

$

$

Not available

10

RedMax 275015100

2756-15100
(Superseded to 511709401)

$28.99

$

Usually ships in 3-10 days

0

11

RedMax 142115120

ARRESTER
(Superseded to 513262801)

$15.99

$

Usually ships in 3-10 days

0

12

RedMax 275015210

GASKET
(Superseded to 513663301)

$7.99

$

In Stock, only 1 left!

0

13

RedMax 275015160

BOLT, M6 X 70
(Superseded to 513663101)

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 275015170

BOLT, M6 X 12
(Superseded to 516866401)

$3.49

$

Usually ships in 3-10 days

0

15

RedMax 275021100

CRANKCASE (USE 2750-21101)
(Superseded to 516867501)

$

$

Not available

16

RedMax 275021140

GASKET
(Superseded to 513663601)

$

$

Not available

17

RedMax 0603006202

T4012-21240
(Superseded to 502849101)

$24.99

$

In Stock, only 4 left!

0

18

RedMax 152021220

SEAL, OIL - STARTER SIDE
(Superseded to 513312501)

$7.49

$

Usually ships in 3-10 days

0

19

RedMax 140021220

T1108-21220
(Superseded to 502849001)

$9.49

$

In Stock, only 3 left!

0

20

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

21

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$2.49

$

Usually ships in 3-10 days

0

22

RedMax 275021210

COVER
(Superseded to 513663801)

$9.99

$

Usually ships in 3-10 days

0

23

RedMax 156572211

BOLT, M4 X 16
(Superseded to 513323201)

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 275041110

PISTON
(Superseded to 513667701)

$37.99

$

Usually ships in 3-10 days

0

25

RedMax 336641210

RING
(Superseded to 514257401)

$7.99

$

Usually ships in 3-10 days

0

26

RedMax 336641310

PIN, PISTON
(Superseded to 514257501)

$8.99

$

Usually ships in 3-10 days

0

27

RedMax 335041320

RING, SNAP
(Superseded to 502849801)

$3.49

$

Usually ships in 3-10 days

0

28

RedMax 140041410

BEARING
(Superseded to 502849901)

$12.99

$

In Stock, only 1 left!

0

29

RedMax 261641510

WASHER (RPLS 1491-41510)
(Superseded to 502850001)

$5.99

$

In Stock, Qty 11

0

30

RedMax 275042000

848-H30-4201
(Superseded to 521633901)

$182.99

$

Usually ships in 3-10 days

0

31

RedMax 130042410

SHIM (REPLACES 848-870-G000)
(Superseded to 516283101)

$3.99

$

Usually ships in 3-10 days

0

32

RedMax 140043230

NUT, M10
(Superseded to 513241901)

$6.49

$

In Stock, only 4 left!

0

33

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 275071110

ROTOR (USE 2750-71111)
(Superseded to 513671601)

$62.99

$

Usually ships in 3-10 days

0

35

RedMax 275071200

COIL ASSEMBLY, IGINITION
(Superseded to 513671701)

$93.99

$

In Stock, only 1 left!

0

36

RedMax 156572211

BOLT, M4 X 16
(Superseded to 513323201)

$3.99

$

Usually ships in 3-10 days

0

37

RedMax 190072111

1900-72112
(Superseded to 513443401)

$6.49

$

Usually ships in 3-10 days

0

38

RedMax 190072120

SPRING
(Superseded to 505298901)

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.49

$

Usually ships in 3-10 days

0

40

RedMax 149773110

3699-90491-10

$

$

Not available

41

RedMax 133371220

CAP (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

42

RedMax 275073200

CORD COMP.
(Superseded to 513672001)

$8.99

$

Usually ships in 3-10 days

0

43

RedMax 148775100

1487-75101
(Superseded to 502843101)

$43.99

$

Usually ships in 3-10 days

0

44

RedMax 118075221

SPRING (RPLS -75220)
(Superseded to 516231101)

$11.99

$

In Stock, only 2 left!

0

$

$

Not available

46

RedMax 148775140

DOG
(Superseded to 513288501)

$10.99

$

Usually ships in 3-10 days

0

47

RedMax 186175150

WASHER
(Superseded to 502843601)

$3.99

$

Usually ships in 3-10 days

0

48

RedMax 148375270

SCREW
(Superseded to 513282901)

$3.99

$

Usually ships in 3-10 days

0

49

RedMax 148775160

RETAINER (RPLS 1861-75161)
(Superseded to 516348601)

$

$

Not available

50

RedMax 148775170

WASHER
(Superseded to 516348701)

$

$

Not available

51

RedMax 140075160

ROPE
(Superseded to 516316801)

$

$

Not available

52

RedMax 140075170

KNOB
(Superseded to 502843201)

$11.99

$

Usually ships in 3-10 days

0

53

RedMax 148775211

PULLEY (RPLS -75210)
(Superseded to 516348901)

$11.99

$

In Stock, Qty 5

0

54

RedMax 346075510

BOLT, M5 x 20
(Superseded to 514320901)

$3.49

$

In Stock, only 4 left!

0

55

RedMax 275075610

2750-75611
(Superseded to 516879001)

$

$

Not available

56

RedMax 275081000

CARBURETOR (WYK-73-1)

$

$

Not available

57

RedMax 340782101

3407-06020
(Superseded to 521114601)

$

$

Not available

58

RedMax 340782130

PLATE
(Superseded to 514286201)

$

$

Not available

59

RedMax 340782140

LEVER
(Superseded to 521116501)

$4.99

$

In Stock, only 1 left!

0

60

RedMax 263033610

SCREW (REPLACES 50030272)
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

61

RedMax 148782121

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

62

RedMax 149182311

ELEMENT (RPLS -82310)
(Superseded to 513303301)

$13.99

$

In Stock, only 1 left!

0

63

RedMax 148482510

PLATE (REPLACES -82511)
(Superseded to 513286401)

$13.99

$

Usually ships in 3-10 days

0

64

RedMax 026390560

SCREW, M5 x 60
(Superseded to 510483101)

$3.99

$

Usually ships in 3-10 days

0

65

RedMax 149182350

1491-82351
(Superseded to 513303501)

$7.99

$

In Stock, only 1 left!

0

66

RedMax 113382060

LABEL
(Superseded to 516199901)

$3.99

$

Usually ships in 3-10 days

0

67

RedMax 275021510

BOLT, M6 X 40
(Superseded to 513664001)

$

$

Not available

101

RedMax 275005010

2750-05011
(Superseded to 848H301004)

$

$

Not available

102

RedMax 275006010

KIT, GASKET
(Superseded to 516864301)

$

$

Not available

103

RedMax 275096100

PULLER ASSY

$69.26

$

Usually ships in 3-10 days

0

104

RedMax 335096220

STOPPER (TOOL) (RPLS 3320-9641
(Superseded to 514243901)

$22.99

$

Usually ships in 3-10 days

0

105

RedMax 335696230

GUIDE (TOOL)
(Superseded to 514253201)

$

$

Not available

106

$

$
