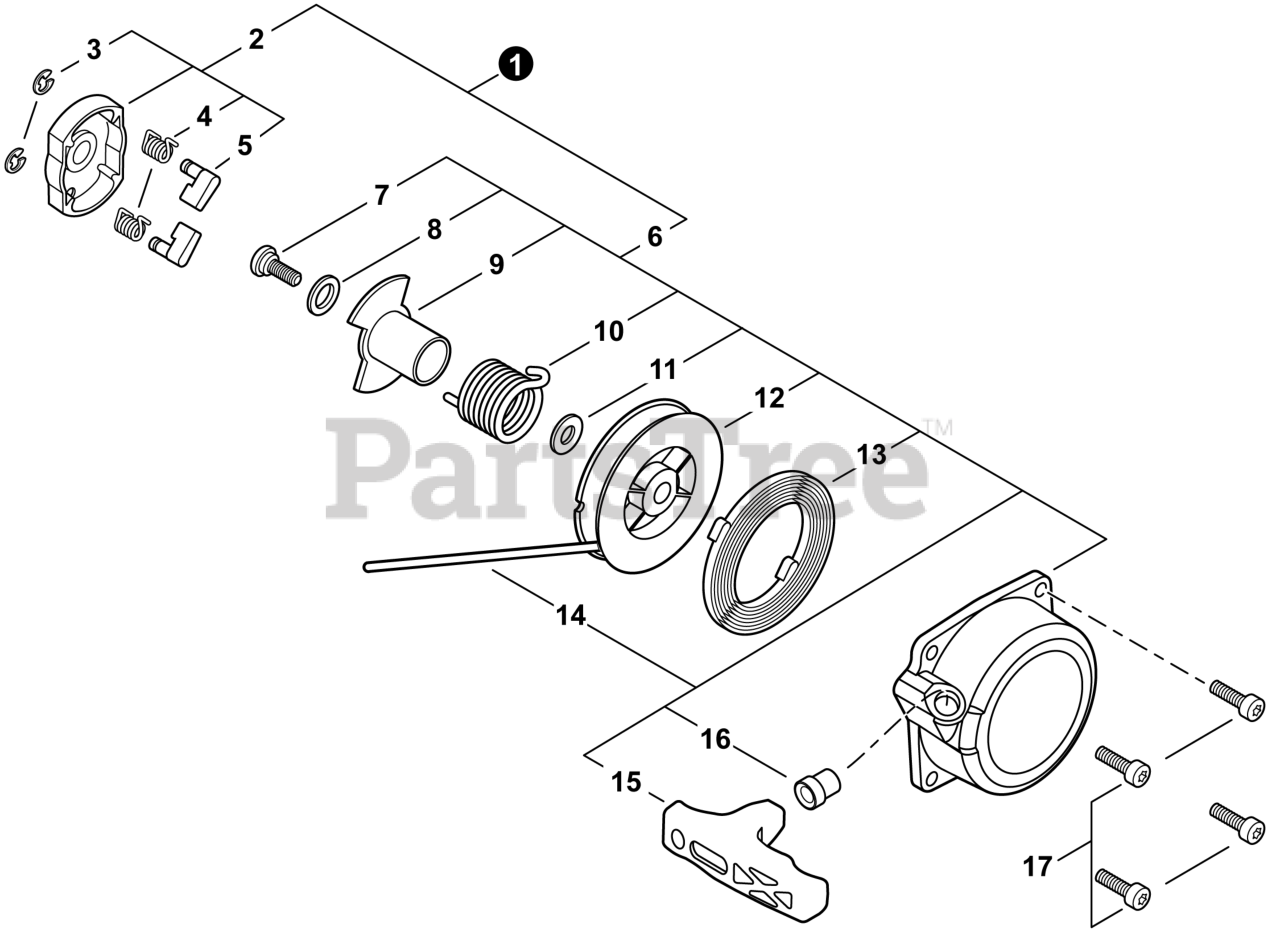

EB 600 RT - Shindaiwa Backpack Blower (SN: P52226001001 - P52226999999) STARTER Parts Diagram

Backpack Blower

STARTER Parts Diagram

  • Title

1

Echo A050000340

STARTER & PAWL SET

Note: Includes items 2-16

$31.99

$

In Stock, Qty 8

0

2

Echo A052000491

PAWL ASSY, STARTER

Note: Includes items 3-5

$4.49

$

In Stock, only 1 left!

0

3

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 6

0

4

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

5

Echo P022036620

PAWL, STARTER

$5.99

$

In Stock, only 3 left!

0

6

Echo A051002981

STARTER ASSY, RECOIL

Note: Includes items 7-16

$27.99

$

In Stock, Qty 9

0

7

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

8

Echo P022045230

WASHER, THRUST
(Superseded to Discontinued)

$

$

Not available

9

Echo P022010221

PAWL CATCHER

$10.99

$

In Stock, only 1 left!

0

10

Echo P022045250

SPRING
(Superseded to Discontinued)

$

$

Not available

11

Echo P022045240

WASHER
(Superseded to Discontinued)

$

$

Not available

12

Echo P022045280

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

13

Echo P022036640

SPRING, SPIRAL

$12.99

$

In Stock, only 4 left!

0

14

Echo P022045260

ROPE, STARTER
(Superseded to Discontinued)

$

$

Not available

15

Echo P022045290

GRIP, STARTER
(Superseded to Discontinued)

$

$

Not available

16

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

17

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0
