EB 508 RT - Shindaiwa Backpack Blower (SN: P38913001001 - P38913999999) Engine, Short Block -- SB1111 S/N: P38913010001 - P38913999999 Parts Diagram

Backpack Blower

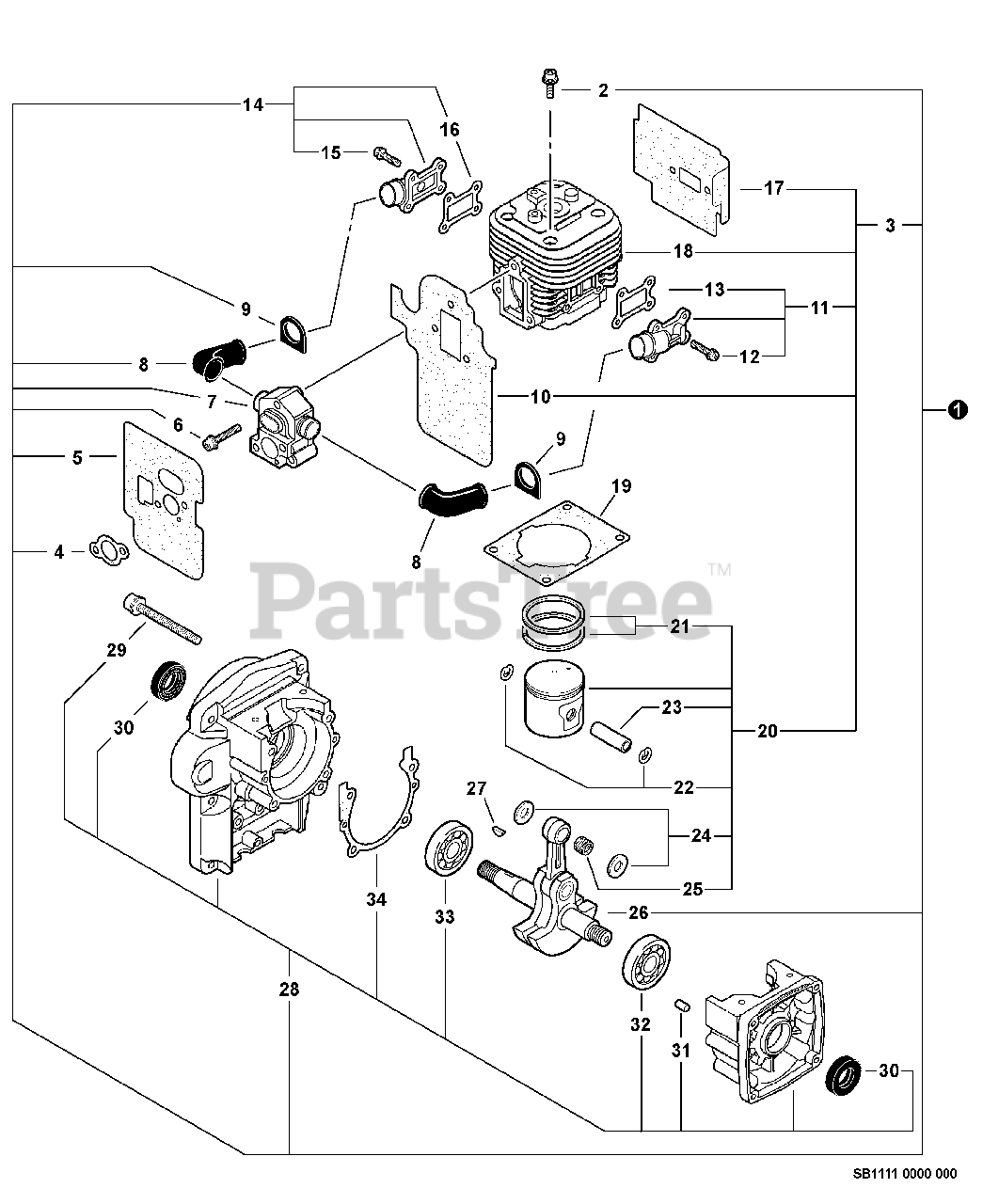

Engine, Short Block -- SB1111 S/N: P38913010001 - P38913999999 Parts Diagram

  • Title

1

Echo SB1111

SHORT BLOCK -- SB1111

Note: Includes ITEM 2-34

$308.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo P021045850

CYLINDER/PISTON KIT

Note: Includes ITEMS 4-25

$214.99

$

Usually ships in 2-4 days

0

4

Echo V103000471

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

5

Echo V103000461

SHIELD, INTAKE

$5.49

$

In Stock, Qty 7

0

6

Echo V203000310

SCREW - 5X35

$1.49

$

In Stock, only 4 left!

0

7

Echo P021014991

VALVE ASSY

$32.99

$

In Stock, only 4 left!

0

8

Echo G213000090

HOSE, AIR

$9.99

$

In Stock, only 3 left!

0

9

Echo V140000020

GROMMET

$0.99

$

In Stock, Qty 6

0

10

Echo V103000450

GASKET, INTAKE

$5.49

$

In Stock, only 1 left!

0

11

Echo P021016140

REED VALVE KIT - OUTER
(Superseded to P021016141)

Note: Includes ITEMS 12-13

$26.99

$

Usually ships in 2-4 days

0

12

Echo V202000140

SCREW - 4

$0.99

$

Usually ships in 2-4 days

0

13

Echo V103000440

GASKET, INTAKE

$2.99

$

In Stock, only 3 left!

0

14

Echo P021016130

REED VALVE KIT - INNER
(Superseded to P021016131)

Note: Includes ITEMS 15-16

$25.99

$

In Stock, only 2 left!

0

15

Echo V202000140

SCREW - 4

$0.99

$

Usually ships in 2-4 days

0

16

Echo V103000440

GASKET, INTAKE

$2.99

$

In Stock, only 3 left!

0

17

Echo V104000900

SHIELD, EXHAUST

$8.99

$

In Stock, only 1 left!

0

18

Echo A130045170

CYLINDER

$

$

Currently unavailable

19

Echo V100000260

GASKET, CYLINDER

$4.99

$

In Stock, Qty 13

0

20

Echo P021045170

PISTON KIT

Note: Includes ITEMS 21-25

$68.99

$

In Stock, only 2 left!

0

21

Echo A101000660

RING, PISTON

$5.99

$

Usually ships in 2-4 days

0

22

Echo V580000010

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0

23

Echo 10001339730

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

24

Echo V307000050

WASHER - 10

$4.99

$

In Stock, only 3 left!

0

25

Echo V555000010

BEARING, NEEDLE - 10

$10.99

$

In Stock, Qty 7

0

26

Echo A011000530

CRANKSHAFT ASSY

$215.99

$

Usually ships in 2-4 days

0

27

Echo 90032303014

KEY - 3X14

$1.49

$

In Stock, only 2 left!

0

28

Echo P021014980

CRANKCASE KIT

Note: Includes ITEMS 29-34

$216.99

$

Usually ships in 2-4 days

0

29

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 9

0

30

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

31

Echo 90033040080

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

32

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

33

Echo 9400036302

BEARING, BALL - 6302C3

$14.99

$

Usually ships in 2-4 days

0

34

Echo V102000050

GASKET, CRANKCASE

$1.99

$

In Stock, only 3 left!

0
