EB 508 RT - Shindaiwa Backpack Blower (SN: P38712001001 - P38712999999) Tube Mount Throttle Parts Diagram

Backpack Blower

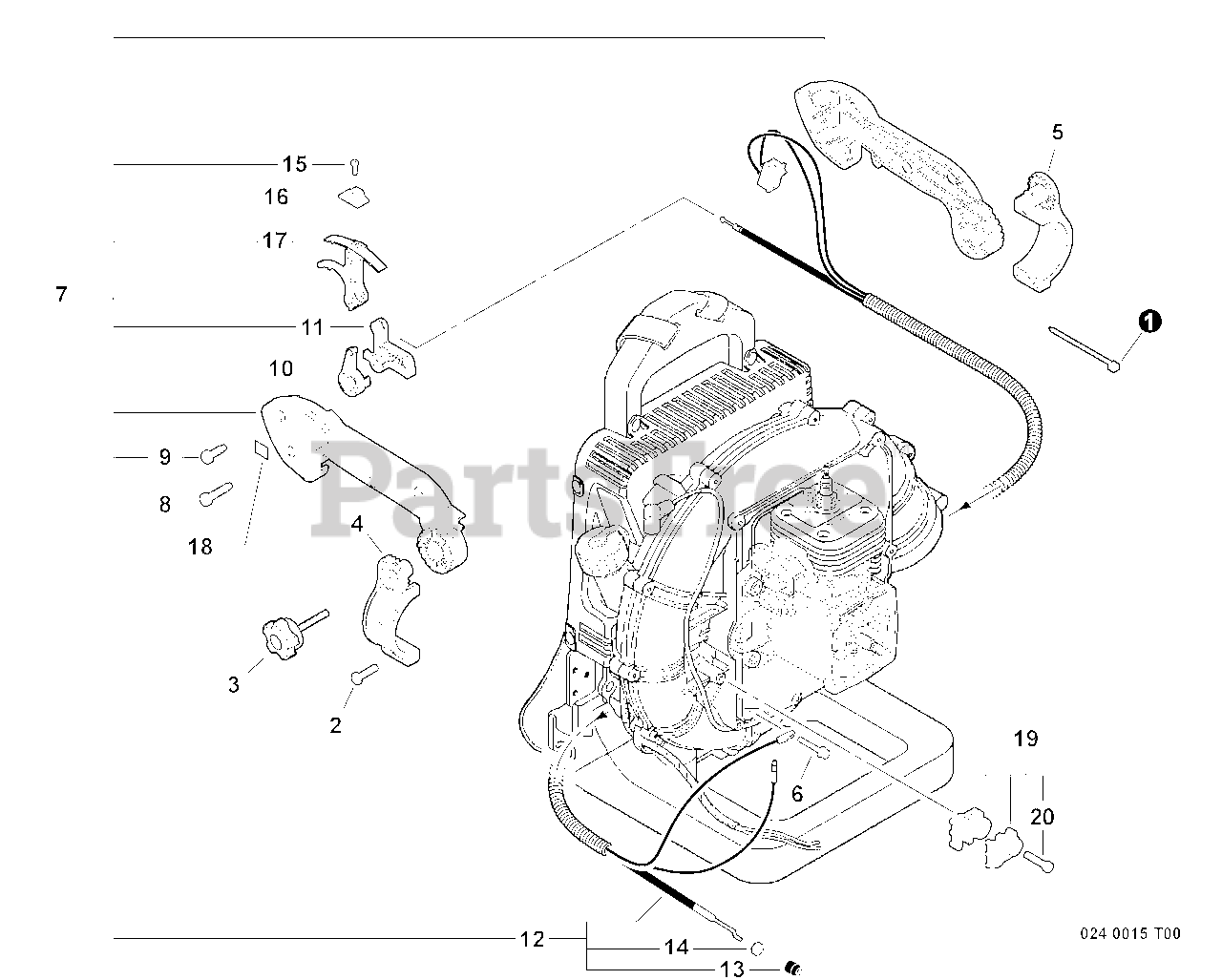

Tube Mount Throttle Parts Diagram

  • Title

1

Echo 17812143230

TIE, CABLE - SMALL

$3.49

$

In Stock, only 4 left!

0

2

Echo 9114505020

SCREW - 5X20 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

3

Echo 30581208260

THUMBSCREW
(Superseded to V299000630)

$4.49

$

In Stock, Qty 20+

0

4

Echo C405000230

BRACKET, HANDLE - LEFT
(Superseded to C405000231)

$4.49

$

In Stock, only 4 left!

0

5

Echo C405000240

BRACKET, HANDLE - RIGHT
(Superseded to C405000241)

$3.49

$

In Stock, only 2 left!

0

6

Echo 88995021560

SCREW - 5

$0.99

$

In Stock, only 2 left!

0

7

Echo P021043870

CONTROL HANDLE ASSY

Note: Includes ITEMS 8-18

$37.99

$

Usually ships in 2-4 days

0

8

Echo 90016205032

SCREW - 5X32

$1.49

$

Usually ships in 2-4 days

0

9

Echo 88995021060

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

10

Echo C453000470

LEVER, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

11

Echo C450000340

TRIGGER, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

12

Echo V043000251

CONTROL CABLE ASSY

Note: Includes ITEMS 13-14

$38.99

$

In Stock, Qty 14

0

13

Echo 17808208260

CAP, DUST

$3.49

$

In Stock, only 2 left!

0

14

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

15

Echo 9154503014

SCREW - 3X14

$0.99

$

In Stock, only 2 left!

0

16

Echo E151000020

KNOB, THROTTLE CONTROL

$5.99

$

Usually ships in 2-4 days

0

17

Echo C453000211

LEVER, THROTTLE CONTROL

$1.49

$

In Stock, Qty 6

0

18

Echo X505000950

LABEL - IDLE

$2.99

$

In Stock, only 4 left!

0

19

Echo P021015010

CABLE BRACKET KIT

Note: Includes ITEM 20

$15.99

$

Usually ships in 2-4 days

0

20

Echo 9114505025

SCREW - 5X25 -- TAPPING

$0.99

$

In Stock, Qty 6

0
