EB 501 - Shindaiwa Backpack Blower Fuel Tank Parts Diagram

Backpack Blower

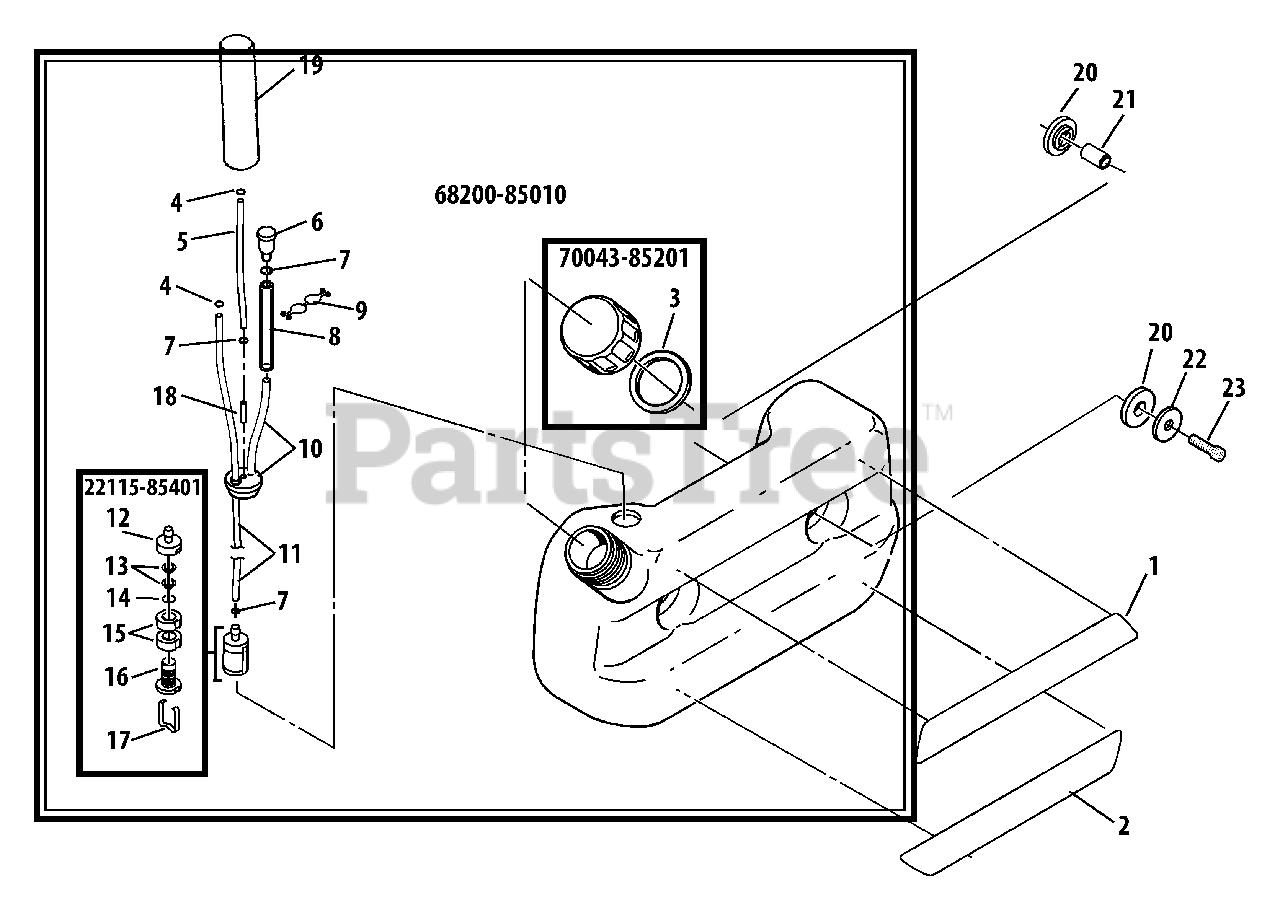

Fuel Tank Parts Diagram

  • Title
1

Echo 68232-91030

LABEL - MODEL

$

$

Not available

2

Echo 19420-00056

LABEL - SHINDAIWA
(Superseded to X504001020)

$7.99

$

In Stock, only 1 left!

0

68200-85010

Echo 68200-85010

FUEL TANK ASSY
(Superseded to 68200-85011)

$

$

Not available

70043-85201

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

$3.99

$

In Stock, Qty 13

0

3

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 20+

0

4

Echo 20021-85540

CLIP
(Superseded to V490000580)

$0.99

$

In Stock, Qty 6

0

5

Echo 72935-85512

TUBE
(Superseded to V471002380)

$1.99

$

In Stock, only 3 left!

0

6

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

7

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

8

Echo 72935-85530

TUBE
(Superseded to V471002420)

$1.99

$

In Stock, only 2 left!

0

9

Echo 72935-85550

CLIP
(Superseded to V491000250)

$0.99

$

In Stock, Qty 10

0

10

Echo V470000890

PIPE ASSY

$5.99

$

In Stock, only 2 left!

0

11

Echo 72935-85311

TUBE
(Superseded to 68206-85340)

$2.49

$

In Stock, Qty 7

0

22115-85401

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

12

Echo 22128-85410

WEIGHT, FUEL FILTER
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

13

Echo 22118-85460

SCREEN, FILTER
(Superseded to A371000010)

$9.49

$

In Stock, Qty 20+

0

14

Echo 22128-85480

RING, RETAINING
(Superseded to V583000200)

$9.49

$

In Stock, Qty 20+

0

15

Echo 22128-85421

FILTER, FUEL
(Superseded to A371000000)

$2.99

$

In Stock, Qty 14

0

16

Echo 22128-85470

CASE, FILTER
(Superseded to A372000000)

$

$

Not available

17

Echo 22128-85440

CLIP, FILTER
(Superseded to V490000750)

$9.49

$

In Stock, Qty 20+

0

18

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, only 4 left!

0

19

Echo 72935-85540

TUBE
(Superseded to V471002390)

$1.49

$

In Stock, Qty 7

0

20

Echo 72935-86421

CUSHION
(Superseded to V420002180)

$1.99

$

Usually ships in 2-4 days

0

21

Echo 1790106150

BUSHING
(Superseded to V354000220)

$0.99

$

Usually ships in 2-4 days

0

22

Echo 15401-20004

COLLAR
(Superseded to V354000230)

$1.49

$

Usually ships in 2-4 days

0

23

Echo 11020-06250

SCREW - 6X25
(Superseded to V204000320)

$1.99

$

Usually ships in 2-4 days

0
