EB 500 - Shindaiwa Backpack Blower (SN: P32220000000 - P32220999999) Carburetor Parts Diagram

Backpack Blower

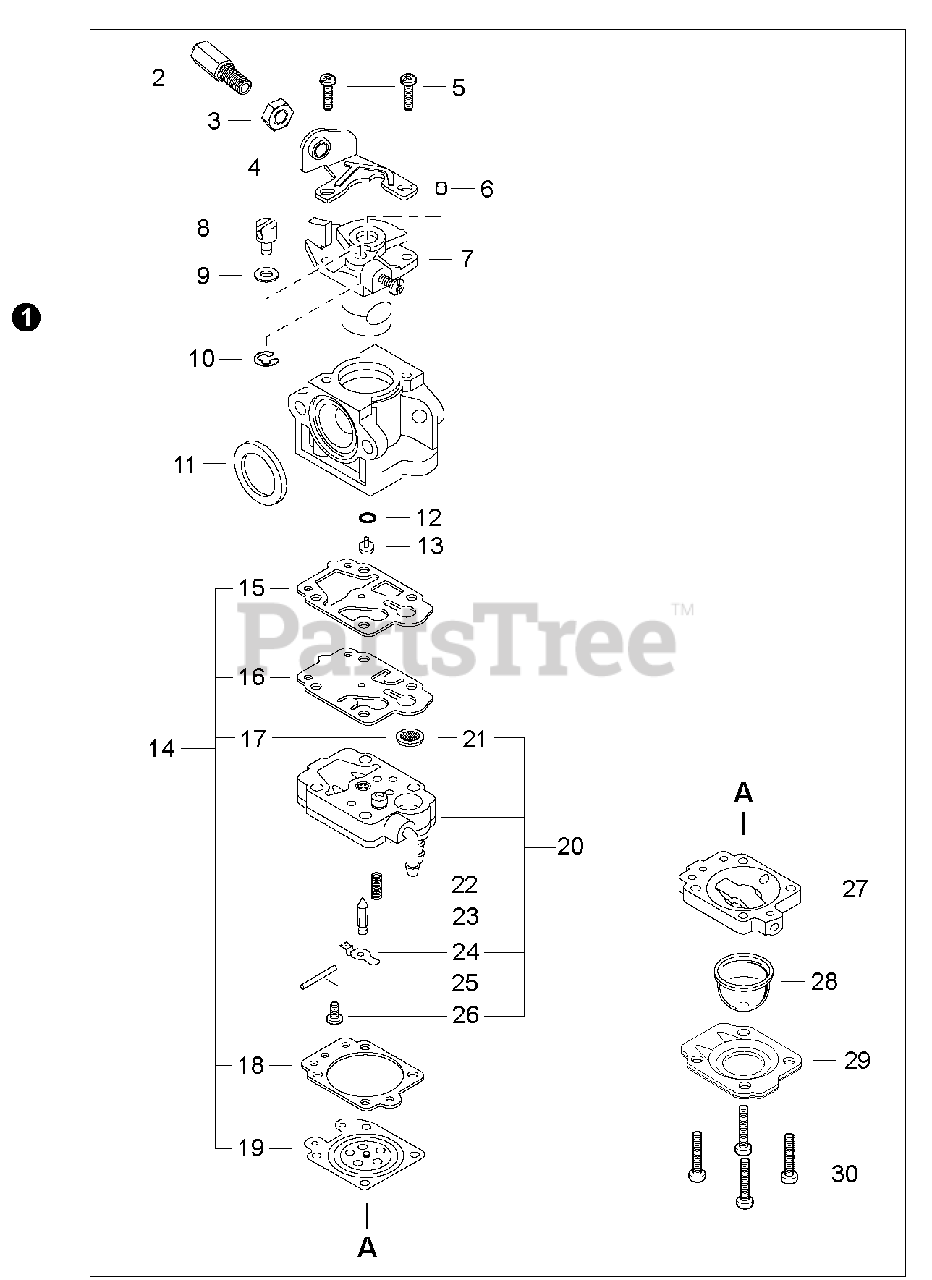

Carburetor Parts Diagram

  • Title

1

Echo A021001990

CARBURETOR WYJ-396

Note: 68237-81010

$86.99

$

Usually ships in 2-4 days

0

2

Echo 12316156431

NUT, CABLE ADJUST

Note: 20089-81110

$6.99

$

In Stock, only 3 left!

0

3

Echo 12315356430

NUT - 7

Note: 20036-81120

$1.49

$

In Stock, only 3 left!

0

4

Echo 12312854230

BRACKET, THROTTLE CABLE

Note: 20089-81130

$5.49

$

Usually ships in 2-4 days

0

5

Echo 12311440630

SCREW

Note: 70097-81290

$2.49

$

In Stock, only 3 left!

0

6

Echo A259000000

CAP, LIMITER

Note: 62074-81320

$0.99

$

Usually ships in 2-4 days

0

7

Echo 68205-81310

THROTTLE VALVE ASSY

Note: 68205-81310

$36.99

$

Usually ships in 2-4 days

0

8

Echo 12317245130

SWIVEL

Note: 72933-81450

$1.99

$

Usually ships in 2-4 days

0

9

Echo 12314954230

WASHER

Note: 20089-81185

$0.99

$

In Stock, only 1 left!

0

10

Echo 12317307930

RING, RETAINING

Note: 20036-81195

$1.49

$

In Stock, only 1 left!

0

11

Echo 12314312110

SEAL

Note: 72933-81250

$4.49

$

In Stock, only 3 left!

0

12

Echo 12318305960

O-RING

Note: 70097-81220

$1.99

$

In Stock, Qty 5

0

13

Echo P003003460

JET, MAIN

Note: 68232-81321

$11.99

$

Usually ships in 2-4 days

0

14

Echo P050008580

DIAPHRAGM/GASKET KIT

Note: 60902-98030

$35.99

$

In Stock, only 1 left!

0

15

Echo 12312540630

GASKET, PUMP

Note: 70097-81310

$4.99

$

In Stock, only 1 left!

0

16

Echo 12311240630

DIAPHRAGM, PUMP

Note: 70097-81320

$12.99

$

In Stock, only 1 left!

0

17

Echo 12312610631

STRAINER

Note: 70030-81380

$1.49

$

In Stock, Qty 17

0

18

Echo 12314005560

GASKET, METERING

Note: 20016-81280

$3.99

$

In Stock, only 2 left!

0

19

Echo P003000090

DIAPHRAGM, METERING

Note: 37013-81310

$17.99

$

In Stock, only 1 left!

0

20

Echo P003003690

PUMP BODY ASSY

Note: 72933-81411

$13.99

$

Usually ships in 2-4 days

0

21

Echo 12312610631

STRAINER

Note: 70030-81380

$1.49

$

In Stock, Qty 17

0

22

Echo 12312205560

SPRING, METERING LEVER

Note: 72933-81270

$3.99

$

Usually ships in 2-4 days

0

23

Echo 12313719830

VALVE, INLET NEEDLE

Note: 20036-81440

$18.99

$

Usually ships in 2-4 days

0

24

Echo 12312338330

LEVER, METERING

Note: 22100-81230

$6.49

$

In Stock, only 1 left!

0

25

Echo 12313803930

PIN, METERING LEVER

Note: 22100-81250

$5.99

$

In Stock, only 4 left!

0

26

Echo 12313905560

SCREW, METERING LEVER PIN

Note: 20016-81450

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12318005560

PURGE BASE ASSY

Note: 20016-81420

$7.49

$

In Stock, only 1 left!

0

28

Echo 12318140630

BULB, PURGE

Note: 20036-81670

$5.49

$

In Stock, Qty 20+

0

29

Echo 12314205560

RETAINER, PURGE BULB

Note: 20016-81510

$4.49

$

In Stock, Qty 20+

0

30

Echo 12311005560

SCREW, PUMP COVER

Note: 20016-81140

$2.99

$

In Stock, Qty 20+

0
