EB 500 EC1 - Shindaiwa Backpack Blower (SN: P30236000000 - P30236999999) Throttle Control Parts Diagram

Backpack Blower

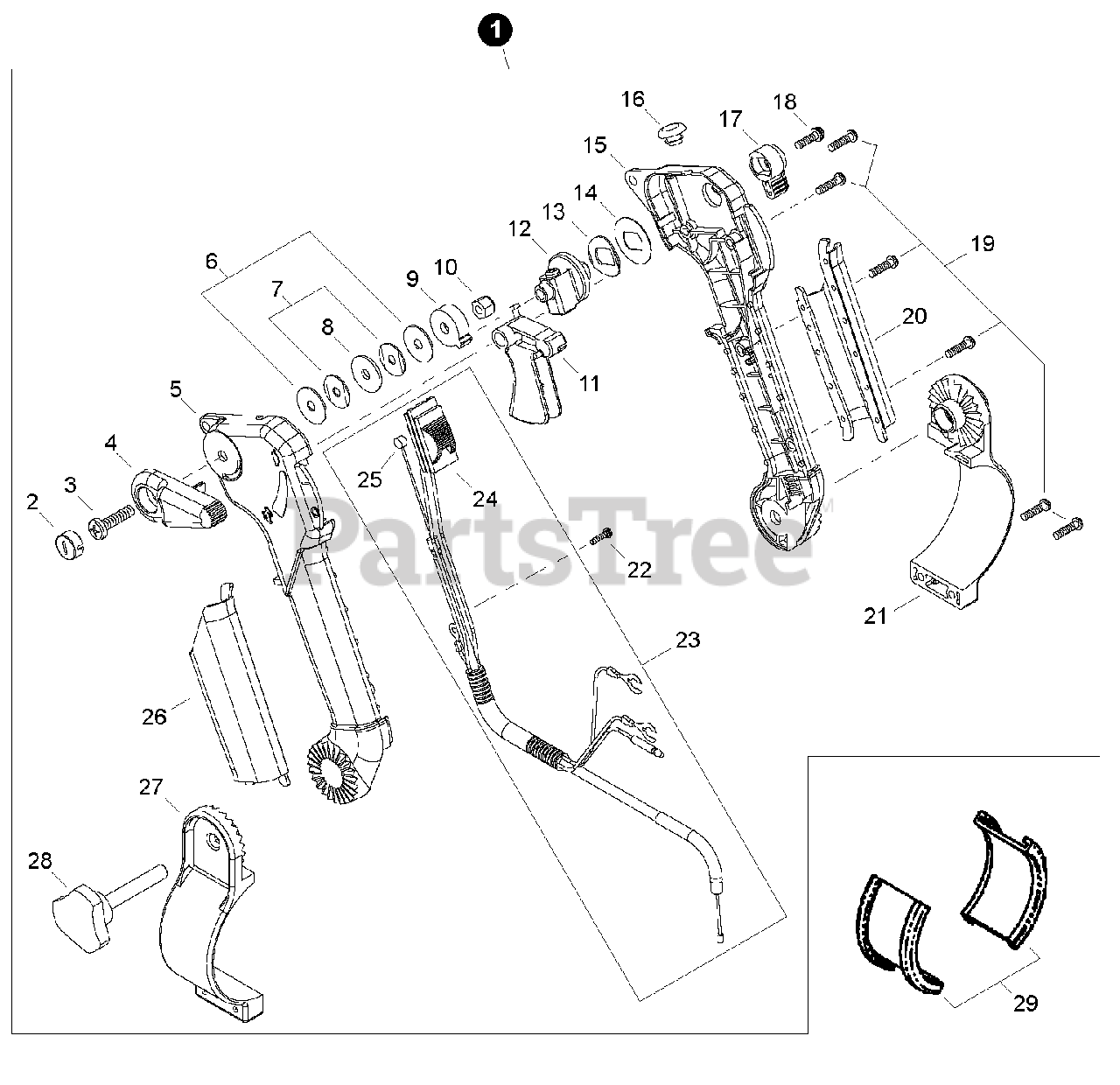

Throttle Control Parts Diagram

  • Title

1

Echo C044000280

CONTROL HANDLE ASSY
(Superseded to C044000281)

Note: 68237-84011

$114.99

$

Usually ships in 2-4 days

0

2

Echo V162000330

CAP, BOLT

Note: 68209-84420

$1.99

$

Usually ships in 2-4 days

0

3

Echo V204000260

SCREW - 6

Note: 68209-84360

$1.49

$

Usually ships in 2-4 days

0

4

Echo C453000320

LEVER, THROTTLE CONTROL

Note: 68209-84350

$3.49

$

Usually ships in 2-4 days

0

5

Echo C400000581

HANDLE, CONTROL - LEFT

Note: 68209-84330

$12.99

$

Usually ships in 2-4 days

0

6

Echo V304000110

WASHER - 6

Note: 68209-84370

$0.99

$

Usually ships in 2-4 days

0

7

Echo V453000110

WASHER - SPRING

Note: 68209-84380

$1.99

$

Usually ships in 2-4 days

0

8

Echo V304000120

WASHER - 6

Note: 68209-84390

$0.99

$

Usually ships in 2-4 days

0

9

Echo C472000070

LEVER, THROTTLE

Note: 68209-84400

$1.99

$

In Stock, Qty 5

0

10

Echo V264000080

NUT - 6 -- NYLON

Note: 68209-84410

$0.99

$

Usually ships in 2-4 days

0

11

Echo C450000450

TRIGGER, THROTTLE

Note: 68209-84340

$3.49

$

In Stock, Qty 7

0

12

Echo C457000010

THROTTLE LIMITER ASSY

Note: 68209-84480

$1.49

$

Usually ships in 2-4 days

0

13

Echo V453000120

WASHER - WAVE

Note: 68209-84530

$2.49

$

Usually ships in 2-4 days

0

14

Echo V345000010

WASHER

Note: 68209-84520

$1.99

$

Usually ships in 2-4 days

0

15

Echo C400000570

HANDLE, CONTROL - RIGHT
(Superseded to C400000571)

Note: 68209-84321

$12.99

$

Usually ships in 2-4 days

0

16

Echo V162000340

PLUG, THROTTLE LIMITER

Note: 68209-84490

$1.99

$

Usually ships in 2-4 days

0

17

Echo C453000330

LEVER, THROTTLE LIMITER

Note: 68209-84510

$2.99

$

Usually ships in 2-4 days

0

18

Echo V252000080

SCREW - 4
(Superseded to P022019940)

Note: 68209-84500

$0.99

$

Usually ships in 2-4 days

0

19

Echo V252000070

SCREW - 4

Note: 68209-84440

$0.99

$

In Stock, Qty 20+

0

20

Echo C412000240

GRIP, HANDLE - RIGHT

Note: 68209-84540

$15.99

$

Usually ships in 2-4 days

0

21

Echo C405000380

BRACKET - RIGHT

Note: 68209-84450

$10.99

$

In Stock, Qty 20+

0

22

Echo V251000030

SCREW - 3

Note: 68209-84560

$0.99

$

Usually ships in 2-4 days

0

23

Echo V043000350

CONTROL CABLE ASSY
(Superseded to V043000351)

Note: 68237-84310

$54.99

$

Usually ships in 2-4 days

0

24

Echo A440001340

SWITCH, IGNITION

Note: 68237-84320

$23.99

$

Usually ships in 2-4 days

0

25

Echo V430002540

CABLE, THROTTLE

Note: 68237-84330

$20.99

$

In Stock, only 1 left!

0

26

Echo C412000250

GRIP, HANDLE - LEFT

Note: 68209-84550

$15.99

$

Usually ships in 2-4 days

0

27

Echo C405000390

BRACKET, HANDLE - LEFT

Note: 68209-84460

$10.99

$

In Stock, Qty 20+

0

28

Echo V299000330

THUMBSCREW

Note: 68209-84470

$4.49

$

In Stock, Qty 11

0

29

Echo V144000210

SPACER

Note: 68237-84340

$9.99

$

Usually ships in 2-4 days

0
