EB 500 EC1 - Shindaiwa Backpack Blower (SN: P30236000000 - P30236999999) Fan Case Parts Diagram

Backpack Blower

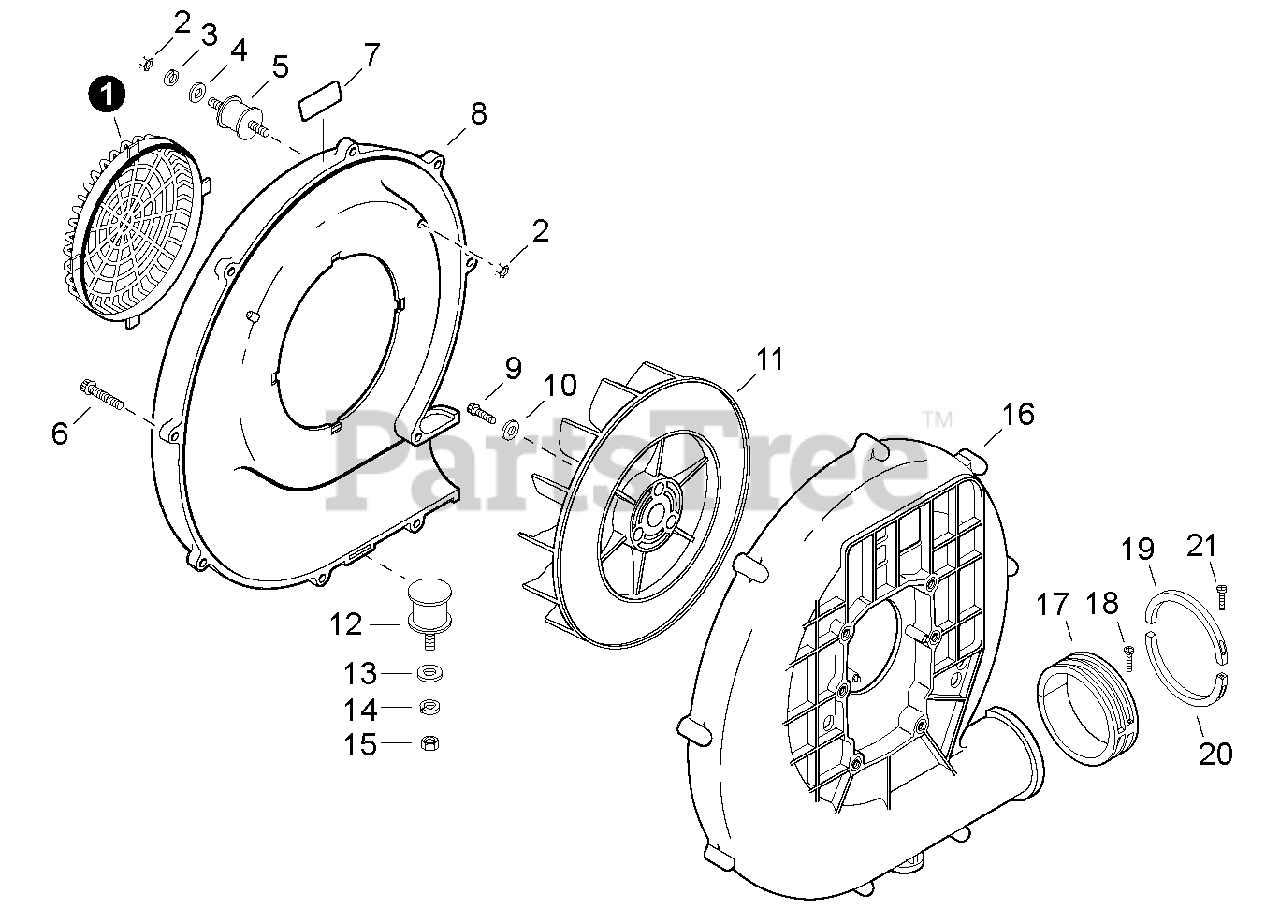

Fan Case Parts Diagram

  • Title
1

Echo E104000160

GUARD, DEBRIS

Note: 72935-61310

$6.99

$

In Stock, only 3 left!

0

2

Echo 90050000005

NUT - 5

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, Qty 10

0

4

Echo V303000270

WASHER - 5

Note: 22104-31620

$0.99

$

Usually ships in 2-4 days

0

5

Echo V401000180

CUSHION

Note: 72935-61220

$11.99

$

Usually ships in 2-4 days

0

6

Echo V203000390

SCREW - 5 -- TAPPING

Note: 72935-61230

$1.99

$

Usually ships in 2-4 days

0

7

Echo X508000300

LABEL - NOISE

Note: 19404-00033

$

$

Currently unavailable

8

Echo E103000830

COVER, FAN - INNER

Note: 72935-61212

$52.99

$

Usually ships in 2-4 days

0

9

Echo V204000300

BOLT - 6
(Superseded to Discontinued)

Note: 11060-06251

$

$

Not available

10

Echo 90060200006

WASHER 6

Note: 01612-00600

$0.99

$

In Stock, Qty 18

0

11

Echo E100000140

FAN

Note: 68200-62112

$55.99

$

Usually ships in 2-4 days

0

12

Echo V402000060

CUSHION

Note: 72935-61120

$10.99

$

Usually ships in 2-4 days

0

13

Echo V375000590

COLLAR - 18
(Superseded to Discontinued)

Note: 15401-10016

$

$

Not available

14

Echo 90060500006

LOCKWASHER - 6

Note: 01600-06151

$0.99

$

In Stock, only 4 left!

0

15

Echo 90050000006

LOCKNUT - 6

Note: 01500-06051

$0.99

$

In Stock, Qty 20+

0

16

Echo E103000820

COVER, FAN - OUTER

Note: 72935-61112

$79.99

$

Usually ships in 2-4 days

0

17

Echo E162000010

SLEEVE

Note: 72935-61410

$3.49

$

Usually ships in 2-4 days

0

18

Echo 9137103020

SCREW - TAPPING

Note: 11270-03202

$0.99

$

Usually ships in 2-4 days

0

19

Echo V495001250

RING, RETAINING - A

Note: 72935-61420

$8.49

$

Usually ships in 2-4 days

0

20

Echo V495001260

RING, RETAINING - B

Note: 72935-61430

$8.49

$

Usually ships in 2-4 days

0

21

Echo 9157803025

SCREW - 3X25

Note: 11203-03250

$0.99

$

Usually ships in 2-4 days

0
