EB 480 - Shindaiwa Backpack Blower Muffler Parts Diagram

Backpack Blower

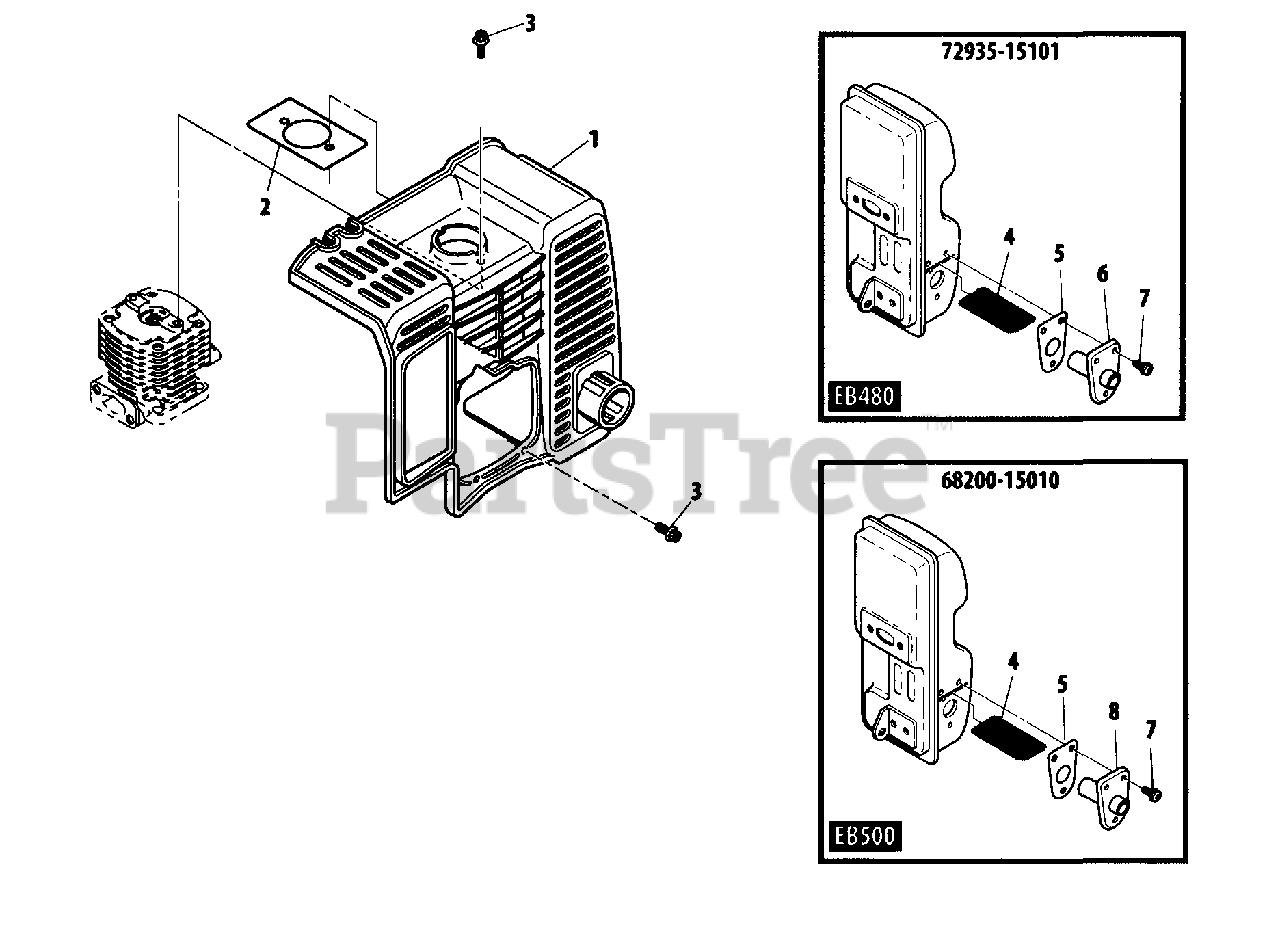

Muffler Parts Diagram

  • Title

1

Echo 72935-31112

COVER, ENGINE
(Superseded to 72935-98020)

$

$

Not available

2

Echo 20028-32130

GASKET
(Superseded to 20028-32131)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 11060-05162

SCREW - 5X16
(Superseded to V203000380)

$1.99

$

Usually ships in 2-4 days

0

72935-15101

Echo 72935-15101

MUFFLER ASSY
(Superseded to A030000070)

$64.99

$

Usually ships in 2-4 days

0

4

Echo 70029-15120

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, only 2 left!

0

5

Echo 70029-15140

GASKET, EXHAUST
(Superseded to V104001010)

$

$

Not available

6

Echo 72935-15131

GUIDE, EXHAUST

$13.99

$

Usually ships in 2-4 days

0

7

Echo 11206-04110

SCREW - 4X10

$

$

Currently unavailable

68200-15010

Echo 68200-15010

MUFFLER ASSY
(Superseded to A030000050)

$49.99

$

Usually ships in 2-4 days

0

4

Echo 70029-15120

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, only 2 left!

0

5

Echo 70029-15140

GASKET, EXHAUST
(Superseded to V104001010)

$

$

Not available

7

Echo 11206-04120

SCREW - 4X12
(Superseded to 9157404012)

$0.99

$

In Stock, only 2 left!

0

8

Echo 68200-15140

PIPE, EXHAUST
(Superseded to A313001150)

$13.99

$

Usually ships in 2-4 days

0
