EB 45 - Shindaiwa Backpack Blower Backpack Frame, Blower Tubes, Fan Cover Parts Diagram

Backpack Blower

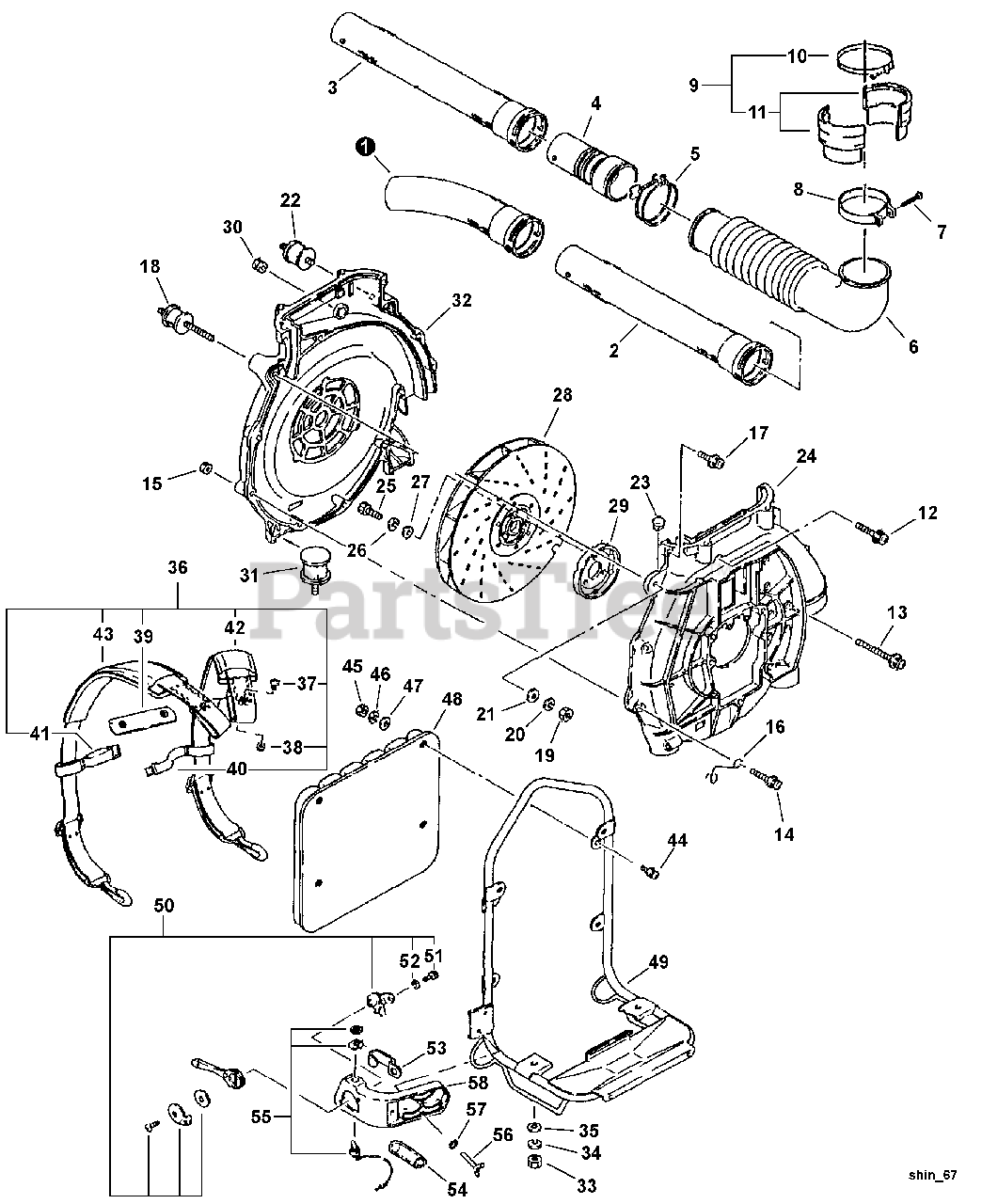

Backpack Frame, Blower Tubes, Fan Cover Parts Diagram

  • Title

1

Echo 72930-16271

TUBE, BLOWER - CURVED

$21.99

$

Usually ships in 2-4 days

0

2

Echo 72930-16260

TUBE, BLOWER - STRAIGHT
(Superseded to 72930-16261)

$60.99

$

Usually ships in 2-4 days

0

3

Echo 72930-16260

TUBE, BLOWER - STRAIGHT
(Superseded to 72930-16261)

$60.99

$

Usually ships in 2-4 days

0

4

Echo 72930-16240

JOINT, BLOWER TUBE
(Superseded to 72930-16241)

$88.99

$

Usually ships in 2-4 days

0

5

Echo 72930-16230

CLAMP - B

$7.99

$

Usually ships in 2-4 days

0

6

Echo 72930-16210

TUBE, BLOWER - FLEXIBLE

$74.99

$

Usually ships in 2-4 days

0

7

Echo 72930-16220

CLAMP KIT
(Superseded to 72935-63231)

$3.99

$

In Stock, only 1 left!

0

8

Echo 72930-16220

CLAMP KIT
(Superseded to 72935-63231)

$3.99

$

In Stock, only 1 left!

0

9

Echo 72930-16101

JOINT ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo 72930-16150

CLAMP

$1.99

$

Usually ships in 2-4 days

0

11

Echo 72930-16111

SWIVEL JOINT KIT
(Superseded to Discontinued)

$

$

Not available

12

Echo 11206-05450

SCREW - 5X45
(Superseded to 9157405045)

$0.99

$

Usually ships in 2-4 days

0

13

Echo 11206-05800

SCREW - 5X80

$0.99

$

Usually ships in 2-4 days

0

14

Echo 11206-05450

SCREW - 5X45
(Superseded to 9157405045)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 01500-05041

NUT - 5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 70029-83140

CLIP, CABLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 11206-05300

SCREW - 5X30
(Superseded to 9157405030)

$0.99

$

In Stock, Qty 5

0

18

Echo 72930-12220

CUSHION
(Superseded to Discontinued)

$

$

Not available

19

Echo 01500-05041

NUT - 5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

20

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

21

Echo 20010-15320

WASHER
(Superseded to 01613-05080)

$0.99

$

In Stock, Qty 20+

0

22

Echo 72930-12210

CUSHION

$19.99

$

Usually ships in 2-4 days

0

23

Echo 72930-12160

GROMMET
(Superseded to Discontinued)

$

$

Not available

24

Echo 72930-12110

COVER, FAN - OUTER
(Superseded to Discontinued)

$

$

Not available

25

Echo 01020-06250

SCREW - 6X25
(Superseded to 90010506025)

$1.49

$

In Stock, only 4 left!

0

26

Echo 01600-06151

LOCKWASHER - 6
(Superseded to 90060500006)

$0.99

$

In Stock, only 2 left!

0

27

Echo 01610-06080

WASHER - 6
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 16

0

28

Echo 72930-12130

FAN
(Superseded to Discontinued)

$

$

Not available

29

Echo 72930-12120

DEFLECTOR, AIR
(Superseded to Discontinued)

$

$

Not available

30

Echo 72930-12150

GROMMET A
(Superseded to Discontinued)

$

$

Not available

31

Echo 72930-12230

CUSHION

$18.99

$

Usually ships in 2-4 days

0

32

Echo 72930-12140

COVER, FAN - INNER
(Superseded to Discontinued)

$

$

Not available

33

Echo 01500-06051

NUT - 6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0

34

Echo 01600-06151

LOCKWASHER - 6
(Superseded to 90060500006)

$0.99

$

In Stock, only 2 left!

0

35

Echo 70029-82260

WASHER
(Superseded to Discontinued)

$

$

Not available

36

Echo 72930-15001

HARNESS ASSY
(Superseded to Discontinued)

$

$

Not available

37

Echo 01215-06160

SCREW - 6X16

$

$

Not available

38

Echo 22011-97840

LOCKNUT - 6
(Superseded to V264000150)

$1.49

$

In Stock, Qty 20+

0

39

Echo 72930-86320

CONNECTOR, STRAP
(Superseded to Discontinued)

$

$

Not available

40

Echo 72930-86250

BAND - RIGHT
(Superseded to Discontinued)

$

$

Not available

41

Echo 72930-86240

BAND - LEFT
(Superseded to Discontinued)

$

$

Not available

42

Echo 72930-15101

STRAP
(Superseded to Discontinued)

$

$

Not available

43

Echo 72930-15101

STRAP
(Superseded to Discontinued)

$

$

Not available

44

Echo 11206-05100

SCREW - 5X10
(Superseded to 9157405010)

$0.99

$

Usually ships in 2-4 days

0

45

Echo 01500-05041

NUT - 5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

46

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

47

Echo 20010-15320

WASHER
(Superseded to 01613-05080)

$0.99

$

In Stock, Qty 20+

0

48

Echo 72930-13210

PAD
(Superseded to Discontinued)

$

$

Not available

49

Echo 72930-13111

FRAME, BACKPACK
(Superseded to Discontinued)

$

$

Not available

50

Echo 72930-14400

THROTTLE LEVER ASSY
(Superseded to Discontinued)

$

$

Not available

51

Echo 01020-06100

SCREW - 6X10
(Superseded to 90010506010)

$1.49

$

In Stock, only 4 left!

0

52

Echo 01600-06151

LOCKWASHER - 6
(Superseded to 90060500006)

$0.99

$

In Stock, only 2 left!

0

53

Echo 72930-14220

CLAMP, WIRE
(Superseded to Discontinued)

$

$

Not available

54

Echo 20035-72120

TUBE
(Superseded to Discontinued)

$

$

Not available

55

Echo 72930-14210

SWITCH, IGNITION
(Superseded to A045000340)

$11.99

$

Usually ships in 2-4 days

0

56

Echo 01063-06251

THUMBSCREW

$

$

Not available

57

Echo 01603-00600

WASHER - TOOTH
(Superseded to Discontinued)

$

$

Not available

58

Echo 72930-14111

BRACKET
(Superseded to Discontinued)

$

$

Not available
