EB 441 - RedMax Backpack Blower (SN: 310001 & Above) (2004-08) 003 - BLOWER GROUP Parts Diagram

Backpack Blower

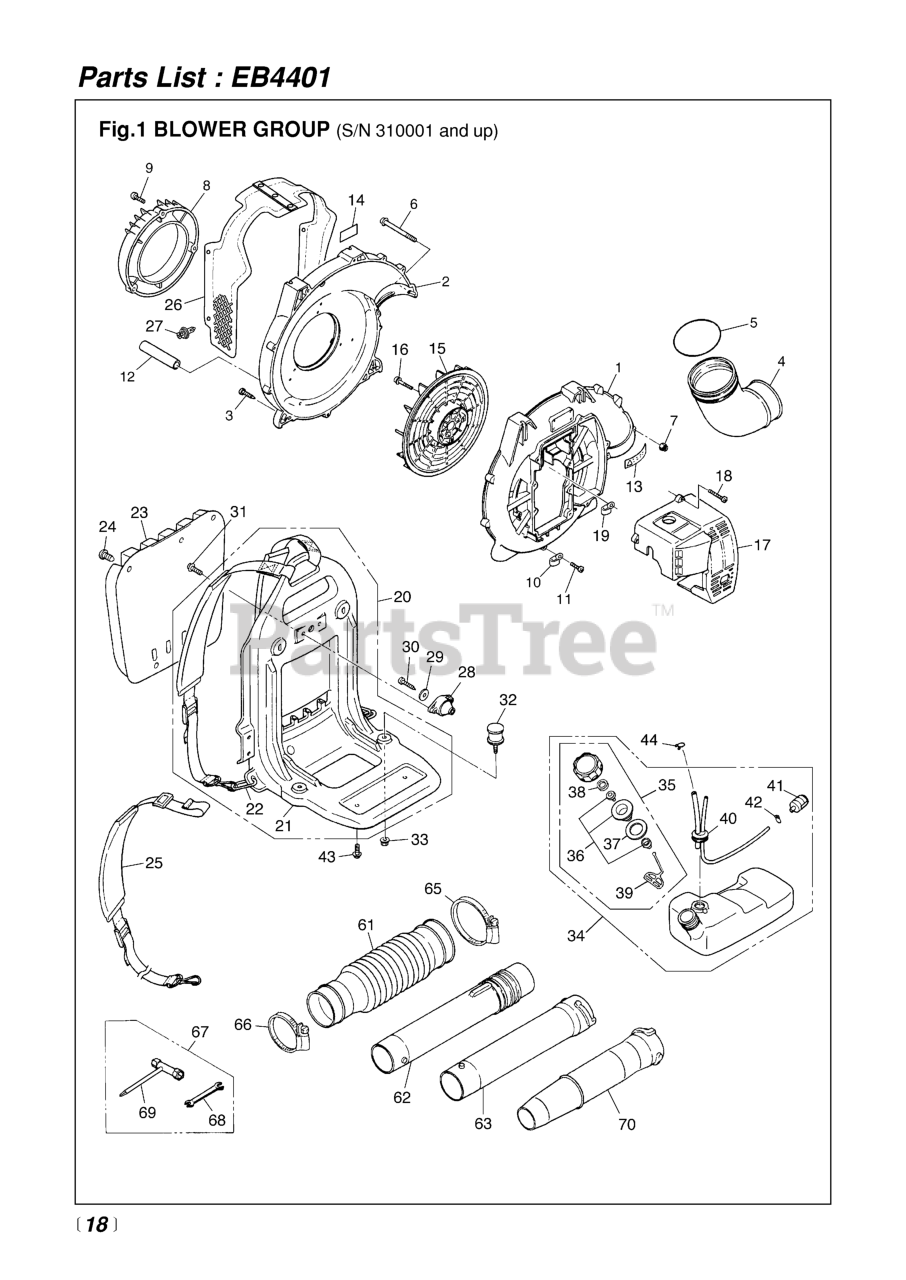

003 - BLOWER GROUP Parts Diagram

  • Title

1

RedMax 275031111

CASE, VOLUTE
(Superseded to 513664301)

$96.99

$

Usually ships in 3-10 days

0

2

RedMax 275031212

848-L5C-55B3
(Superseded to 511785201)

$78.99

$

Usually ships in 3-10 days

0

3

RedMax 275031150

SCREW, M5 X 25
(Superseded to 516869001)

$3.49

$

Usually ships in 3-10 days

0

4

RedMax 349011150

2751-31410
(Superseded to 513675101)

$

$

Not available

5

RedMax 0700002095

O-RING
(Superseded to 544264501)

$4.99

$

In Stock, only 2 left!

0

6

RedMax 275031420

SCREW, M5 X 70
(Superseded to 513665501)

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$4.99

$

Usually ships in 3-10 days

0

8

RedMax T401231310

COVER, INLET

$29.80

$

Usually ships in 3-10 days

0

9

RedMax 275031150

SCREW, M5 X 25
(Superseded to 516869001)

$3.49

$

Usually ships in 3-10 days

0

10

RedMax 8488K40010

CLAMP (RPLS 1140-72231)
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 340716120

SCREW

$0.24

$

Usually ships in 3-10 days

0

12

RedMax 275031290

TUBE (RPLS. 07270-01507)
(Superseded to 516869801)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 275031911

LABEL, CAUTION (RPLS -31910)
(Superseded to 516873201)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax T401232610

LABEL, NET
(Superseded to 521832401)

$6.49

$

Usually ships in 3-10 days

0

15

RedMax 275031510

FAN
(Superseded to 544265001)

$84.99

$

Usually ships in 3-10 days

0

16

RedMax 340712210

BOLT (RPLS 3405-12211)
(Superseded to 521114901)

$

$

Not available

17

RedMax 275031612

COVER, ENGINE (RPLS -31611)
(Superseded to 513666001)

$37.99

$

Usually ships in 3-10 days

0

18

RedMax 275031150

SCREW, M5 X 25
(Superseded to 516869001)

$3.49

$

Usually ships in 3-10 days

0

19

RedMax 275072230

CLAMP
(Superseded to 513671901)

$3.49

$

Usually ships in 3-10 days

0

20

RedMax T401232002

FRAME ASSY. (REPLACES -32001)
(Superseded to 512648801)

$113.99

$

Usually ships in 3-10 days

0

21

RedMax T401232101

FRAME COMP. (RPLS -32100)
(Superseded to 512648801)

$113.99

$

Usually ships in 3-10 days

0

22

RedMax 349021121

RING (REPLACES -21120)
(Superseded to 521142801)

$4.99

$

In Stock, Qty 16

0

23

RedMax 346021311

PAD (RPLS -21310)
(Superseded to 514314001)

$

$

Not available

24

RedMax 349521320

CLIP (RPLS 3490-21320)
(Superseded to 526476701)

$4.99

$

In Stock, Qty 20+

0

25

RedMax 275632300

BAND ASSY (RPLS 2750- )
(Superseded to 511709601)

$34.99

$

Usually ships in 3-10 days

0

26

RedMax T401232500

NET COMPLETE
(Superseded to 521832301)

$

$

Not available

27

RedMax 148074710

CLIP
(Superseded to 516342801)

$7.49

$

Usually ships in 3-10 days

0

28

RedMax 275032510

DAMPER, UPPER
(Superseded to 513666701)

$13.99

$

In Stock, only 2 left!

0

29

RedMax 275032520

WASHER
(Superseded to 516875001)

$3.99

$

Usually ships in 3-10 days

0

30

RedMax 275032530

SCREW
(Superseded to 513667001)

$3.99

$

Usually ships in 3-10 days

0

31

RedMax 275032541

BOLT, M5 X 16 (RPLS -32540)
(Superseded to 516875401)

$4.99

$

In Stock, only 2 left!

0

32

RedMax 275032610

DAMPER, LOWER
(Superseded to 516875701)

$

$

Not available

33

RedMax 275032620

NUT, M6
(Superseded to 513667501)

$4.99

$

In Stock, only 1 left!

0

34

RedMax 275685102

TANK ASSEMBLY (RPLS -85101)
(Superseded to 516899001)

$62.99

$

Usually ships in 3-10 days

0

35

RedMax T101585202

CAP ASSY (RPLS -85201)
(Superseded to 504117701)

$30.99

$

In Stock, only 3 left!

0

36

RedMax 450085300

HOLDER (REPLACES -85230)
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

37

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

In Stock, only 2 left!

0

38

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 1 left!

0

39

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

40

RedMax 275085300

PIPE COMP.(RPLS 2756-85300)
(Superseded to 516879801)

$14.99

$

Usually ships in 3-10 days

0

41

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

42

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, Qty 8

0

43

RedMax 340723610

SCREW, M5 x 12
(Superseded to 514285201)

$3.99

$

Usually ships in 3-10 days

0

44

RedMax 110086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, only 2 left!

0

61

RedMax T401751110

HOSE (RPLS 2750-51110)
(Superseded to 504065101)

$31.99

$

Usually ships in 3-10 days

0

62

RedMax 275051201

SWIVEL-JOINT (REPLACES -51200)
(Superseded to 504064801)

$11.99

$

In Stock, Qty 11

0

63

RedMax 681151211

PIPE, STRAIGHT
(Superseded to 577079301)

$7.99

$

In Stock, Qty 5

0

65

RedMax 275651510

CLAMP (RPLS 3490- )
(Superseded to 526343301)

$5.99

$

Usually ships in 3-10 days

0

66

RedMax 275651520

CLAMP (RPLS 3050-13230)
(Superseded to 574006101)

$

$

Not available

67

RedMax 8488U00060

TOOL SET

$

$

Not available

68

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

69

RedMax 8488U10070

SOCKET

$9.05

$

Usually ships in 3-10 days

0

70

RedMax 275651220

KIT, NOZZLE (USE 2756-51221)

$

$

Not available
