EB 431 - RedMax Backpack Blower (SN: 410001 & Above) (1994-10) 010 - ENGINE GROUP Parts Diagram

Backpack Blower

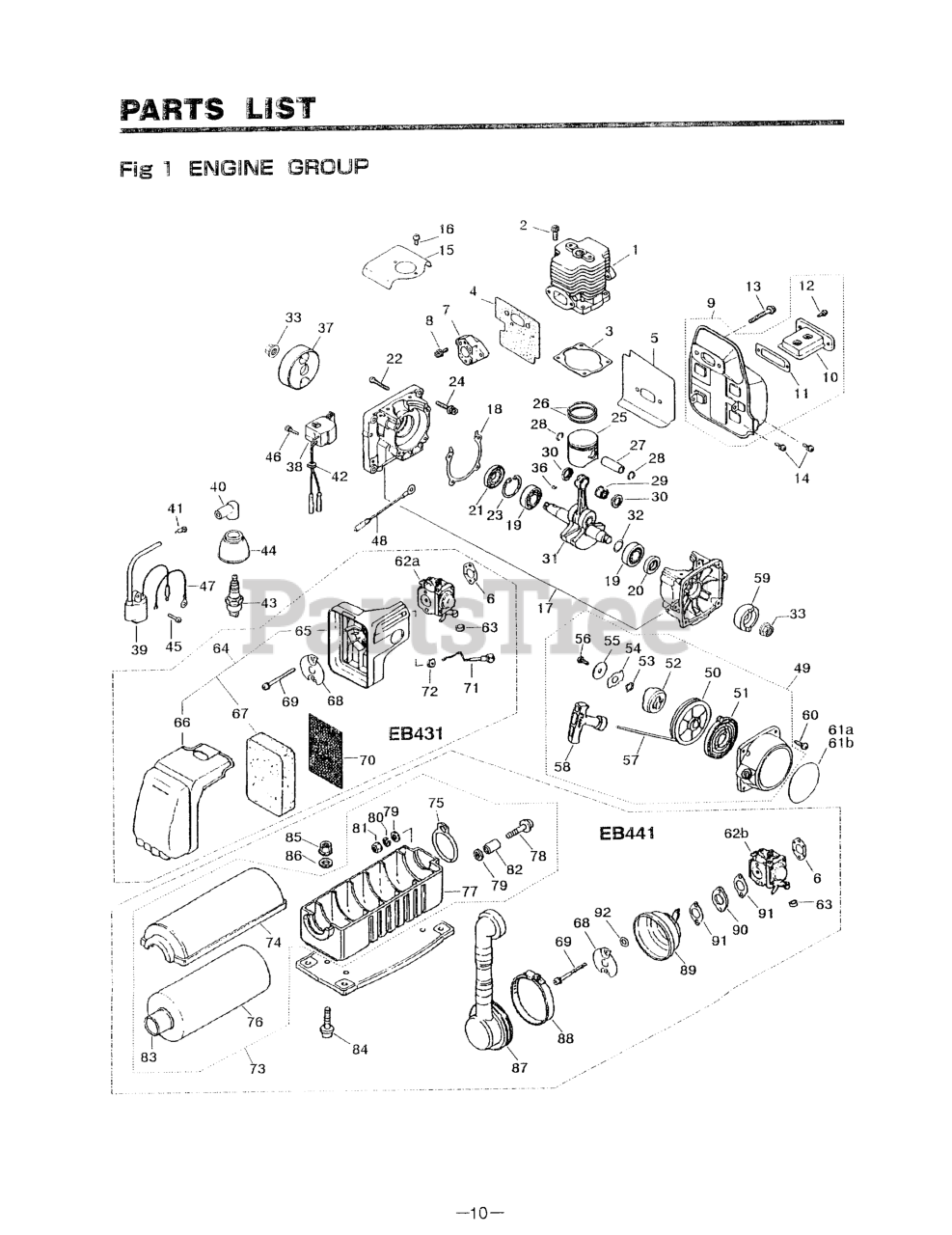

010 - ENGINE GROUP Parts Diagram

  • Title
1

RedMax 149012113

CYLINDER (RPLS -12111)
(Superseded to 513293101)

$39.99

$

Usually ships in 3-10 days

0

$

$

Not available

3

RedMax 140013121

1400-13122
(Superseded to 516310501)

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 149113132

1491-13133
(Superseded to 516353401)

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 148713140

1487-13141
(Superseded to 513287501)

$10.99

$

Usually ships in 3-10 days

0

6

RedMax 149113151

1491-13152
(Superseded to 513297501)

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 149114113

INSULATOR (RPLS-14112)
(Superseded to 516354201)

$

$

Not available

8

RedMax 149114120

0225-30525

$

$

Not available

9

RedMax 148715102

MUFFLER (RPLS -15101)
(Superseded to 574078501)

$

$

Not available

10

RedMax 149115521

ARRESTER

$

$

Not available

11

RedMax 149115530

1491-15531
(Superseded to 513298601)

$

$

Not available

12

RedMax 026330410

SCREW, M4 x 10

$0.17

$

Usually ships in 3-10 days

0

13

RedMax 149115210

1491-21511

$

$

Not available

14

$0.26

$

Usually ships in 3-10 days

0

15

$2.72

$

Usually ships in 3-10 days

0

16

$0.26

$

Usually ships in 3-10 days

0

17

RedMax 149721101

CRANKCASE

$73.95

$

Usually ships in 3-10 days

0

18

RedMax 140021140

1400-21141
(Superseded to 513238601)

$3.49

$

Usually ships in 3-10 days

0

19

RedMax 0603006202

T4012-21240
(Superseded to 502849101)

$24.99

$

In Stock, only 4 left!

0

20

RedMax 152021220

SEAL, OIL - STARTER SIDE
(Superseded to 513312501)

$7.49

$

Usually ships in 3-10 days

0

21

RedMax 140021220

T1108-21220
(Superseded to 502849001)

$9.49

$

In Stock, only 3 left!

0

22

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

23

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$2.49

$

Usually ships in 3-10 days

0

24

RedMax 214021510

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

25

RedMax 148341110

1483-41111
(Superseded to 513281501)

$31.99

$

Usually ships in 3-10 days

0

26

RedMax 140041220

RING, PISTON (RPLS -41210)
(Superseded to 510917901)

$9.99

$

In Stock, only 1 left!

0

27

RedMax 149041310

PIN, PISTON (RPLS. 1490-41316)
(Superseded to 513294601)

$

$

Not available

28

RedMax 335041320

RING, SNAP
(Superseded to 502849801)

$3.49

$

Usually ships in 3-10 days

0

29

RedMax 140041410

BEARING
(Superseded to 502849901)

$12.99

$

In Stock, only 1 left!

0

30

RedMax 261641510

WASHER (RPLS 1491-41510)
(Superseded to 502850001)

$5.99

$

In Stock, Qty 9

0

31

RedMax 140042002

SHAFT (RPLS -42001)

$85.48

$

Usually ships in 3-10 days

0

32

RedMax 130042410

SHIM (REPLACES 848-870-G000)
(Superseded to 516283101)

$3.99

$

Usually ships in 3-10 days

0

33

RedMax 140043230

NUT, M10
(Superseded to 513241901)

$6.49

$

In Stock, only 1 left!

0

36

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

37

$62.65

$

Usually ships in 3-10 days

0

38

RedMax 346871211

3468-71212
(Superseded to 514327001)

$91.99

$

Usually ships in 3-10 days

0

39

RedMax 149171310

COIL, IGNITION
(Superseded to 513299501)

$56.99

$

Usually ships in 3-10 days

0

40

RedMax 110072213

1900-72111
(Superseded to 513443401)

$6.49

$

Usually ships in 3-10 days

0

41

RedMax 190072120

SPRING
(Superseded to 505298901)

$4.99

$

Usually ships in 3-10 days

0

42

RedMax 113072120

GROMMET
(Superseded to 513183501)

$

$

Not available

43

RedMax 149773110

3699-90491-10

$

$

Not available

44

RedMax 133371220

CAP (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

45

RedMax 027710416

SCREW, M4 x 16

$0.39

$

Usually ships in 3-10 days

0

46

RedMax 156572211

BOLT, M4 X 16
(Superseded to 513323201)

$3.99

$

Usually ships in 3-10 days

0

47

RedMax 149171510

CABLE COMPLETE

$

$

Not available

$2.94

$

Usually ships in 3-10 days

0

49

RedMax 148775100

1487-75101
(Superseded to 502843101)

$43.99

$

Usually ships in 3-10 days

0

$

$

Not available

51

RedMax 118075221

SPRING (RPLS -75220)
(Superseded to 516231101)

$11.99

$

In Stock, only 2 left!

0

52

RedMax 148775140

DOG
(Superseded to 513288501)

$

$

Not available

53

RedMax 186175150

WASHER
(Superseded to 502843601)

$3.99

$

Usually ships in 3-10 days

0

54

RedMax 148775160

RETAINER (RPLS 1861-75161)
(Superseded to 516348601)

$

$

Not available

55

RedMax 148775170

WASHER
(Superseded to 516348701)

$

$

Not available

56

RedMax 148375270

SCREW
(Superseded to 513282901)

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 140075160

ROPE
(Superseded to 516316801)

$

$

Not available

58

RedMax 140075170

KNOB
(Superseded to 502843201)

$11.99

$

Usually ships in 3-10 days

0

59

RedMax 148775211

PULLEY (RPLS -75210)
(Superseded to 516348901)

$11.99

$

In Stock, only 2 left!

0

60

RedMax 346075510

BOLT, M5 x 20
(Superseded to 514320901)

$3.49

$

In Stock, only 4 left!

0

61A

RedMax 340775610

LABEL (EB431)

$1.42

$

Usually ships in 3-10 days

0

62A

RedMax 148781002

CARBURETOR (RPLS-81001)
(Superseded to 513288901)

$

$

Not available

63

RedMax 160181810

CAP, CABLE END
(Superseded to 513352401)

$3.49

$

In Stock, only 1 left!

0

64

RedMax 148782100

1487-06020

$

$

Not available

65

RedMax 148782111

1487-06020

$

$

Not available

66

RedMax 148782121

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

67

RedMax 149182311

ELEMENT (RPLS -82310)
(Superseded to 513303301)

$13.99

$

In Stock, only 2 left!

0

68

RedMax 148482510

PLATE (REPLACES -82511)
(Superseded to 513286401)

$13.99

$

Usually ships in 3-10 days

0

69

RedMax 026330555

SCREW, M5 X 55
(Superseded to 510479201)

$1.49

$

Usually ships in 3-10 days

0

70

RedMax 149182350

1491-82351
(Superseded to 513303501)

$7.99

$

Usually ships in 3-10 days

0

71

RedMax 149182811

ROD
(Superseded to 516362301)

$

$

Not available

72

RedMax 332033310

GROMMET
(Superseded to 514205201)

$

$

Not available

NI

RedMax 340506010

KIT, GASKET
(Superseded to 521113401)

$21.99

$

Usually ships in 3-10 days

0
