EB 431 - RedMax Backpack Blower (1998-03) 020 - CARBURETOR COMPONENTS Parts Diagram

Backpack Blower

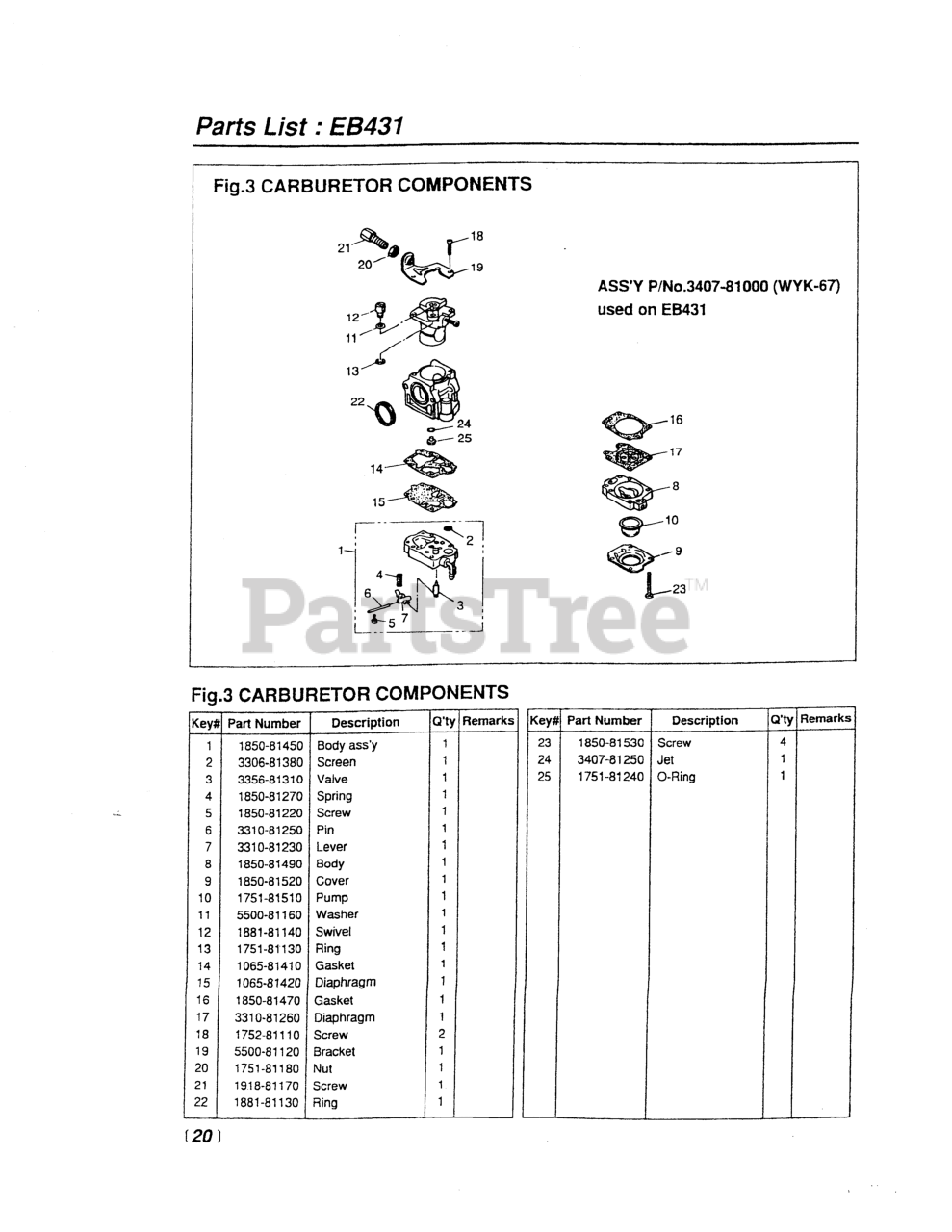

020 - CARBURETOR COMPONENTS Parts Diagram

  • Title
NI

RedMax 340781000

CARBURETOR ASSEMBLY
(Superseded to 514285601)

$113.99

$

Usually ships in 3-10 days

0

1

RedMax 185081450

BODY, PUMP
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

2

$1.22

$

Usually ships in 3-10 days

0

3

RedMax 335681310

VALVE, INLET
(Superseded to 574024901)

$

$

Not available

4

RedMax 185081270

SPRING, METERING LEVER

$2.54

$

Usually ships in 3-10 days

0

5

RedMax 185081220

SCREW, METERING LEVER PIN

$2.54

$

Usually ships in 3-10 days

0

6

RedMax 331081250

PIN, METERING LEVER
(Superseded to 520977401)

$6.49

$

Usually ships in 3-10 days

0

7

RedMax 331081230

LEVER
(Superseded to 574024401)

$7.49

$

Usually ships in 3-10 days

0

8

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

9

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

10

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

11

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

12

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

13

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 106581410

GASKET, PUMP
(Superseded to 516160601)

$

$

Not available

15

RedMax 106581420

DIAPHRAGM
(Superseded to 506689801)

$6.49

$

In Stock, Qty 5

0

16

RedMax 185081470

GASKET, DIAPHRAGM
(Superseded to 506740801)

$10.99

$

In Stock, only 3 left!

0

17

RedMax 331081260

DIAPHRAGM (USE 4810-81260)
(Superseded to 505056401)

$17.99

$

In Stock, only 1 left!

0

18

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

19

$7.42

$

Usually ships in 3-10 days

0

20

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 191881170

SCREW, CABLE ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 2 left!

0

22

RedMax 188181130

RING, PACKING
(Superseded to 505308401)

$4.99

$

Usually ships in 3-10 days

0

23

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0

$3.78

$

Usually ships in 3-10 days

0

25

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0
