EB 428 (41AY28AR903) - McCulloch Chainsaw General Assembly Parts Diagram

Chainsaw

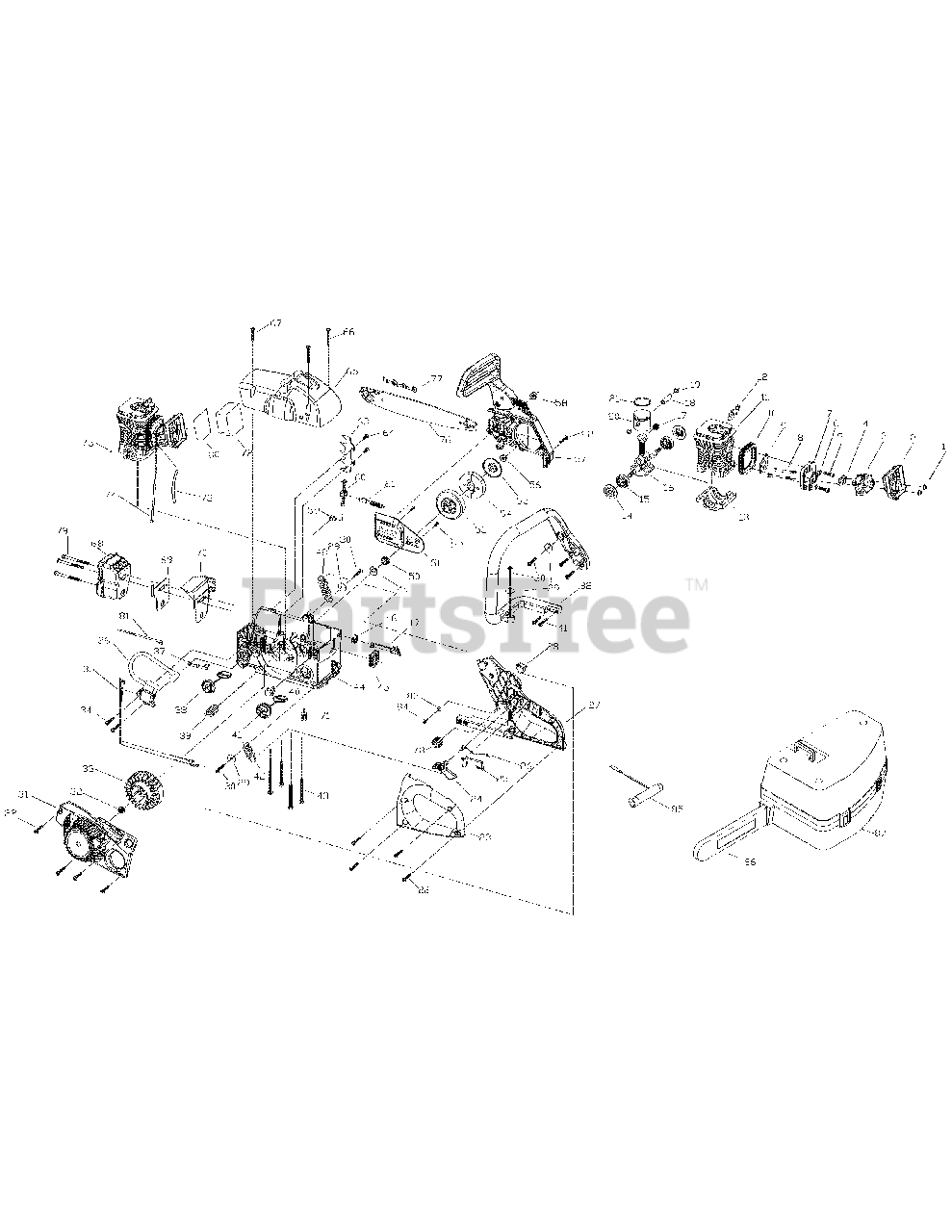

General Assembly Parts Diagram

  • Title

1

MTD 9NHZ-05

NUT
(Superseded to MC-9NHZ-05)

$

$

Not available

2

MTD 9228-310510

AIR FILTER ASS/Y

$

$

Not available

3

MTD 9287-310501

CARBURETOR

$

$

Not available

4

MTD 9082-310506

SPACER

$

$

Not available

5

MTD 9SACB-06-25

SCREW
(Superseded to MC-9SACB-06-25)

$

$

Not available

6

MTD 6WSB-06

SPRING WASHER

$

$

Not available

7

MTD 9082-310504

ISOLATOR, CARBURETOR

$

$

Not available

8

MTD 9STDB-05-60

SCREW
(Superseded to MC-9STDB-05-60)

$

$

Not available

9

MTD 9082-310505

SPACER

$

$

Not available

10

MTD 9012-310502

RUBBER, ISOLATOR

$

$

Not available

11

MTD 9292-310501F

CYLINDER

$

$

Not available

12

MTD 9295-310502

SPARK PLUG

$

$

Not available

13

MTD 9072-310501F

CASE, CRANK

$

$

Not available

14

MTD 9157-310502

CAP, BEARING

$

$

Not available

15

MTD 9DB-620101

BEARING

$

$

Not available

16

MTD 9228-310505

CRANK/ROD ASS'Y
(Superseded to MC-9228-310505)

$

$

Not available

17

MTD 9NB-K101410

ROLLER, PISTON

$

$

Not available

18

MTD 9PC-10-34.5

PIN, PISTON

$

$

Not available

19

MTD 9CA-10.3

RING

$

$

Not available

20

MTD 9290-310502

PISTON
(Superseded to MC-9290-310502)

$

$

Not available

21

MTD 9189-310501

RING, PISTON

$

$

Currently unavailable

22

MTD 9SGKBY10/14-0.625

SCREW

$

$

Currently unavailable

23

MTD 9068-310501

HANDLE, LEFT PART
(Superseded to MC-9068-310501)

$

$

Not available

24

MTD 9028-310502

TRIGGER, THROTTLE

$

$

Not available

25

MTD 9028-310501

TRIGGER, RELEASE

$

$

Not available

26

MTD 9024-310504

SPRING

$

$

Not available

27

MTD 9068-310502

HANDLE, REAR
(Superseded to MC-9068-310502)

$

$

Not available

28

MTD 9022-310501

SWITCH
(Superseded to MC-9022-310501)

$

$

Not available

29

MTD 9WFB-05-21

WASHER
(Superseded to MC-9WFB-05-21)

$

$

Not available

30

MTD 9SKKBY8/16-0.625

SCREW

$

$

Currently unavailable

31

MTD 9228-MD0708

STARTER HOUSING ASS'Y

$

$

Currently unavailable

32

MTD 9NAB-5/16-24

NUT
(Superseded to MC-9NAB-5/16-24)

$

$

Not available

33

MTD 9228-MD0704

FLYWHEEL

$

$

Currently unavailable

34

MTD 9SGEB-05-20

SCREW
(Superseded to MC-9SGEB-05-20)

$

$

Not available

35

MTD 9010-310503

WIRE ASS'Y
(Superseded to MC-9010-310503)

$

$

Not available

36

MTD 9288-310501-CH

IGNITION ASS'Y

$

$

Currently unavailable

37

MTD 9051-310501

CONDUCTIVE PLATE
(Superseded to MC-9051-310501)

$

$

Not available

38

MTD 9228-310207

OIL CAP ASS'Y
(Superseded to MC-9228-310207)

$

$

Not available

39

MTD 9228-310566

SPRING ASS'Y

$

$

Currently unavailable

40

MTD 9142-310002

PRIMER

$

$

Not available

41

MTD 9228-310206

FUEL CAP ASS'Y
(Superseded to MC-9228-310206)

$

$

Not available

42

MTD 9024-310506

SPRING
(Superseded to MC-9024-310506)

$

$

Not available

43

MTD 9SFAB-06-55

SCREW
(Superseded to MC-9SFAB-06-55)

$

$

Not available

44

MTD 9228-310565

HOUSING ASS'Y

$

$

Currently unavailable

45

MTD 9012-310503

HOLDER, CABLE

$

$

Not available

46

MTD 9012-310504

HOLDER, CHOKE LEVEL

$

$

Not available

47

MTD 9114-310510

LEVER, CHOKE

$

$

Not available

48

MTD 9024-310507

SPRING

$

$

Not available

49

MTD 9157-310501

FELT

$

$

Not available

50

MTD 9073-310503

WORM

$

$

Not available

51

MTD 9017-310508

CAP, ANTI-DUST

$

$

Not available

52

MTD 6SDABB04-08

SCREW

$

$

Not available

53

MTD 9228-310515

DRUM ASS'Y

$

$

Not available

54

MTD 9228-310528

CLUTCH ASS'Y

$

$

Not available

55

MTD 9077-310501

CAP, ANTI-DUST

$

$

Not available

56

MTD 9NHC-09

NUT
(Superseded to MC-9NHC-09)

$

$

Not available

57

MTD 9228-MD0709

BRAKE KIT ASS'Y

$

$

Currently unavailable

58

MTD 9NAZ-5/16-18

NUT
(Superseded to MC-9NAZ-5/16-18)

$

$

Not available

59

MTD 9124-310102

CONNECTOR

$

$

Not available

60

MTD 9013-310501

OIL PIPE

$

$

Not available

61

MTD 9228-310526

PUMP ASS'Y

$

$

Not available

62

MTD 9SKKBY10/14-0.68

SCREW

$

$

Currently unavailable

63

MTD 9227-310501

SPIKED BUMPER

$

$

Currently unavailable

64

MTD 9SKKBY8/16-0.5

SCREW
(Superseded to 710-04493)

$

$

Not available

65

MTD 9017-310509

SHROUD

$

$

Not available

66

MTD 9SKKBY8/16-1.4

SCREW
(Superseded to 710-04499)

$

$

Not available

67

MTD 9SKKBY-8/16-1

SCREW
(Superseded to 710-04495)

$

$

Not available

68

MTD 9228-310547

MUFFLER ASS'Y

$

$

Currently unavailable

69

MTD 9082-310501

BAFFLE

$

$

Not available

70

MTD 9082-310502

BAFFLE

$

$

Not available

71

MTD 9182-310503

FILTER

$

$

Not available

72

MTD 9252-310501

FILTER, AIR

$

$

Not available

73

MTD 9129-310504

FUEL PIPE
(Superseded to MC-9129-310504)

$

$

Not available

74

MTD 9010-310502

CABLE, THROTTLE

$

$

Not available

75

MTD 9221-310001

WOODRUFF KEY

$

$

Not available

76

MTD 9040-310539

BAR

$

$

Currently unavailable

77

MTD 9220-310101

CHAIN

$

$

Currently unavailable

78

MTD 9027-310101

RUBBER
(Superseded to MC-9027-310101)

$

$

Not available

79

MTD 9SXDB-06-70

SCREW

$

$

Currently unavailable

80

MTD 9183-310502

MESH

$

$

Not available

81

MTD 9032-330401

BIND BAND

$

$

Currently unavailable

82

MTD 9068-MD0701

HANDLE, FRONT
(Superseded to MC-9068-MD0701)

$

$

Not available

83

MTD 9WFB-4.5-13

WASHER

$

$

Currently unavailable

84

MTD 9SKKBB-04-10

SCREW

$

$

Currently unavailable

85

MTD 9042-310201

WRENCH
(Superseded to MC-9042-310201)

$

$

Not available

86

MTD 9017-310214

SCABBARD

$

$

Not available

87

MTD 9120-MD0701

CARRY CASE
(Superseded to MC-9120-MD0701)

$

$

Not available
