EB 344 - Shindaiwa Handheld Blower (SN: T15711001001 - T15711999999) CAM GEAR, REED VALVE Parts Diagram

Handheld Blower

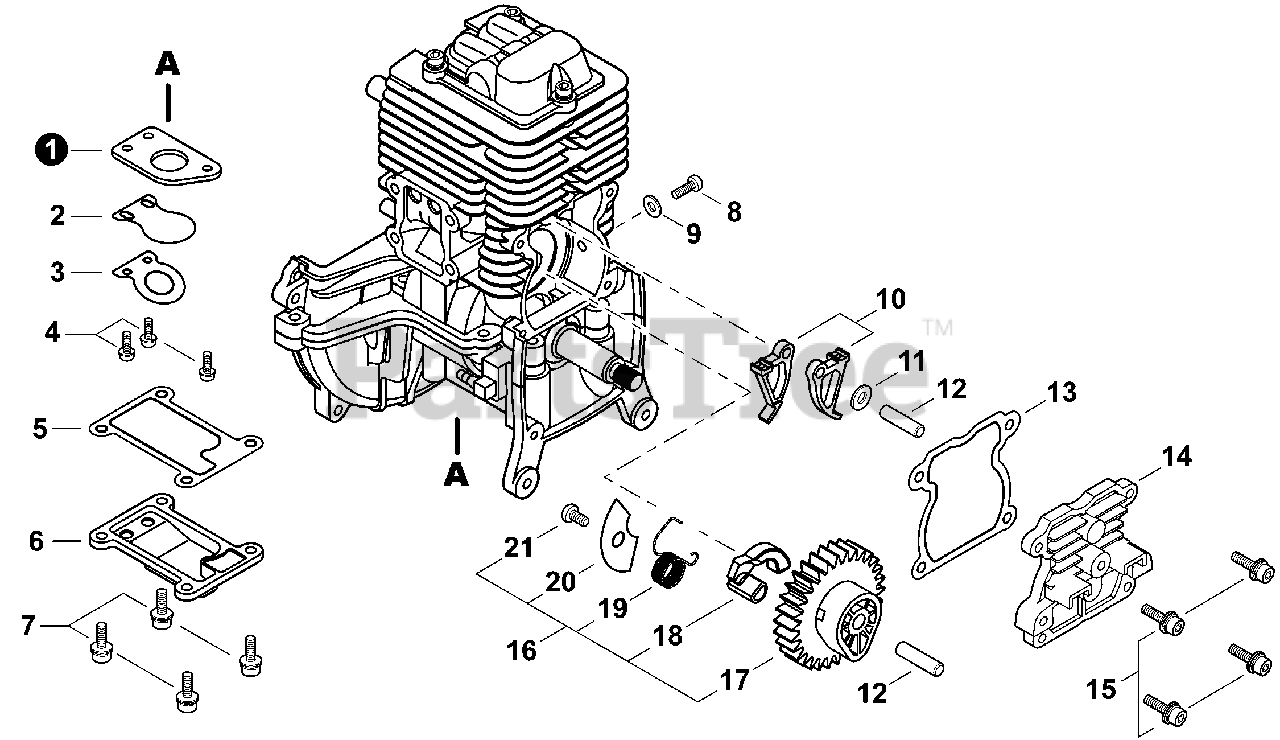

CAM GEAR, REED VALVE Parts Diagram

  • Title
1

Echo A200000750

PLATE, REED BACKING

$11.99

$

Usually ships in 2-4 days

0

2

Echo A211000030

VALVE, REED

$5.49

$

Usually ships in 2-4 days

0

3

Echo A212000040

STOP, REED VALVE

$3.49

$

Usually ships in 2-4 days

0

4

Echo 9134103010

SCREW M3×10

$0.99

$

Usually ships in 2-4 days

0

5

Echo V109000100

GASKET, REED VALVE

$1.99

$

In Stock, Qty 6

0

6

Echo A123000000

COVER, REED VALVE

$5.99

$

Usually ships in 2-4 days

0

7

Echo V202000350

BOLT M4×14

$0.99

$

In Stock, Qty 10

0

8

Echo V253000540

SCREW M5

$0.99

$

Usually ships in 2-4 days

0

9

Echo V303000120

WASHER 10×5.5×2

$0.99

$

Usually ships in 2-4 days

0

10

Echo A600000001

FOLLOWER, CAM

$12.99

$

In Stock, only 4 left!

0

11

Echo V303000220

WASHER 5MM

$0.99

$

In Stock, only 3 left!

0

12

Echo V623000030

PIN, LOCATING 5×29.8mm

$1.99

$

Usually ships in 2-4 days

0

13

Echo V109000040

GASKET, CAM GEAR

$1.99

$

Usually ships in 2-4 days

0

14

Echo A136000000

COVER, CAM GEAR

$9.99

$

Usually ships in 2-4 days

0

15

Echo V202000350

BOLT M4×14

$0.99

$

In Stock, Qty 10

0

16

Echo A063000000

CAM GEAR ASSY

Note: Includes Items 17-21

$17.99

$

In Stock, only 1 left!

0

17

Echo A622000000

GEAR, CAM

$9.99

$

In Stock, only 1 left!

0

18

$1.99

$

Usually ships in 2-4 days

0

19

Echo V452000610

SPRING, COIL

$1.99

$

Usually ships in 2-4 days

0

20

Echo C603000240

PLATE, COVER

$0.99

$

In Stock, only 1 left!

0

21

Echo 9144904006

SCREW, TAPPING 4×6

$0.99

$

Usually ships in 2-4 days

0
