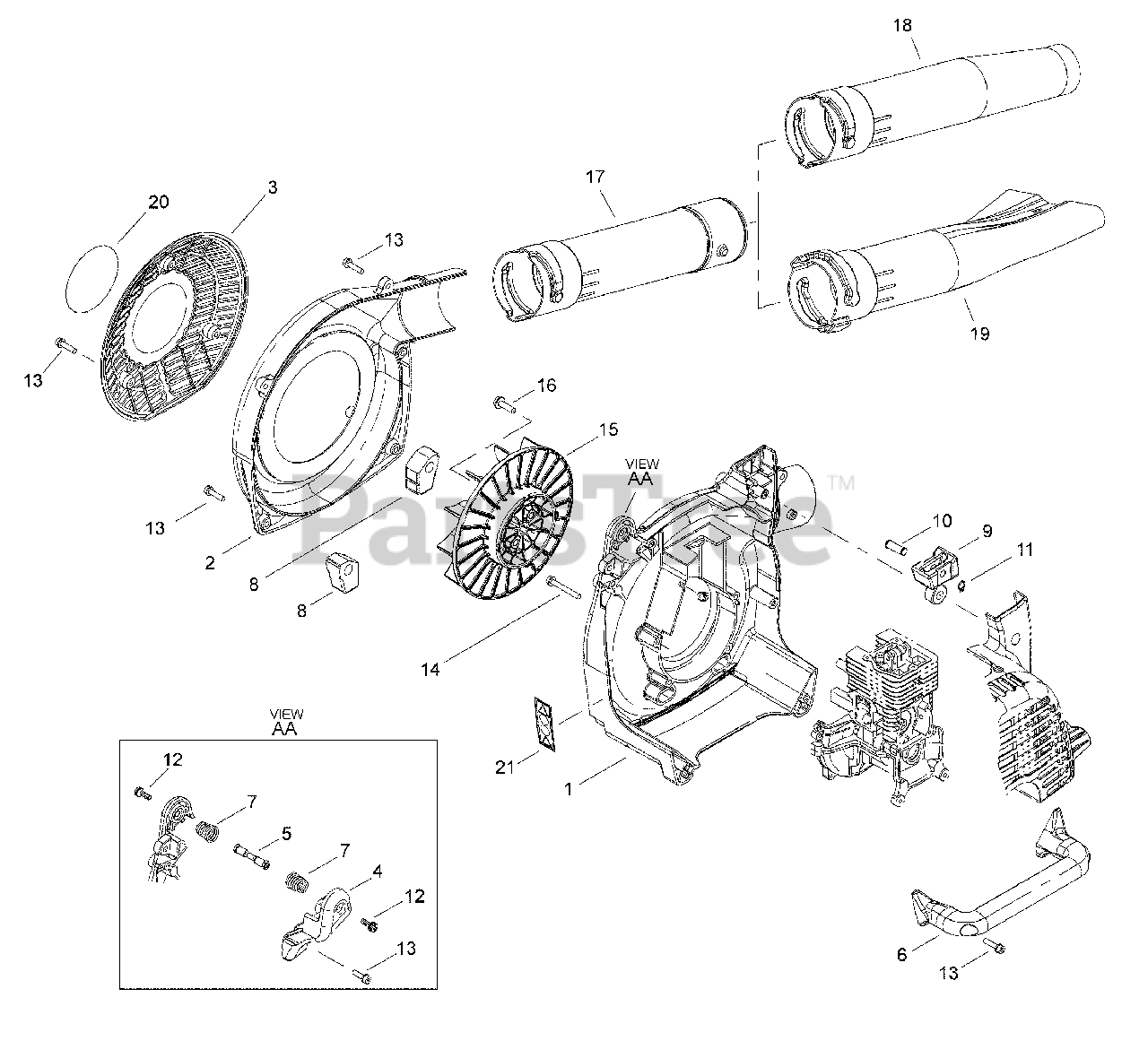

EB 3410 - Shindaiwa Handheld Blower Volute Parts Diagram

Handheld Blower

Volute Parts Diagram

  • Title
1

Echo 68906-61110

COVER, FAN - RIGHT
(Superseded to E103000810)

$74.99

$

Usually ships in 2-4 days

0

2

Echo 68902-61120

COVER, FAN - LEFT
(Superseded to E103000780)

$30.99

$

Usually ships in 2-4 days

0

3

Echo 68902-61130

COVER, INTAKE
(Superseded to E104000140)

$10.99

$

Usually ships in 2-4 days

0

4

Echo 68902-61310

COVER, HANDLE

$9.49

$

Usually ships in 2-4 days

0

5

Echo 68902-61322

NUT
(Superseded to V263000100)

$10.99

$

Usually ships in 2-4 days

0

6

Echo 68902-61330

HANDLE - LOWER
(Superseded to C410000620)

$19.99

$

Usually ships in 2-4 days

0

7

Echo 17503-18000

SPRING
(Superseded to V450000820)

$2.49

$

Usually ships in 2-4 days

0

8

Echo 72933-61320

CUSHION - REAR
(Superseded to V420002140)

$2.49

$

Usually ships in 2-4 days

0

9

Echo 68902-61343

CUSHION - REAR
(Superseded to V420002150)

$4.49

$

Usually ships in 2-4 days

0

10

Echo 68902-61351

PIN - LOCKING
(Superseded to C226000050)

$3.49

$

Usually ships in 2-4 days

0

11

Echo 02430-08080

RING, RETAINING - 8
(Superseded to 9242308000)

$0.99

$

In Stock, only 1 left!

0

12

Echo 11260-05163

SCREW - 5X16
(Superseded to V253000250)

$1.99

$

Usually ships in 2-4 days

0

13

Echo 70140-31480

BOLT - 5X20
(Superseded to V203000450)

$1.99

$

In Stock, Qty 5

0

14

Echo 11022-05400

SCREW - 5X40
(Superseded to 11024-05400)

$1.99

$

In Stock, only 1 left!

0

15

Echo 1734306001

FAN
(Superseded to E100000130)

$40.99

$

Usually ships in 2-4 days

0

16

Echo 11022-06200

SCREW - 6X20
(Superseded to V204000270)

$1.99

$

Usually ships in 2-4 days

0

17

Echo 72933-63111

TUBE, BLOWER
(Superseded to E165000420)

$8.99

$

Usually ships in 2-4 days

0

18

Echo 72933-63123

NOZZLE
(Superseded to E165000430)

$9.49

$

Usually ships in 2-4 days

0

19

Echo 68906-63120

FAN TIP NOZZLE

$19.99

$

Usually ships in 2-4 days

0

20

Echo 68902-91320

LABEL - MODEL EB2510
(Superseded to X543001170)

$

$

Not available

21

Echo 19402-00299

LABEL - CAUTION
(Superseded to X505002730)

$1.99

$

Usually ships in 2-4 days

0
