EB 254 - Shindaiwa Handheld Blower (SN: T11013001001 - T11013999999) Engine, Reed Valve, Valve Train Parts Diagram

Handheld Blower

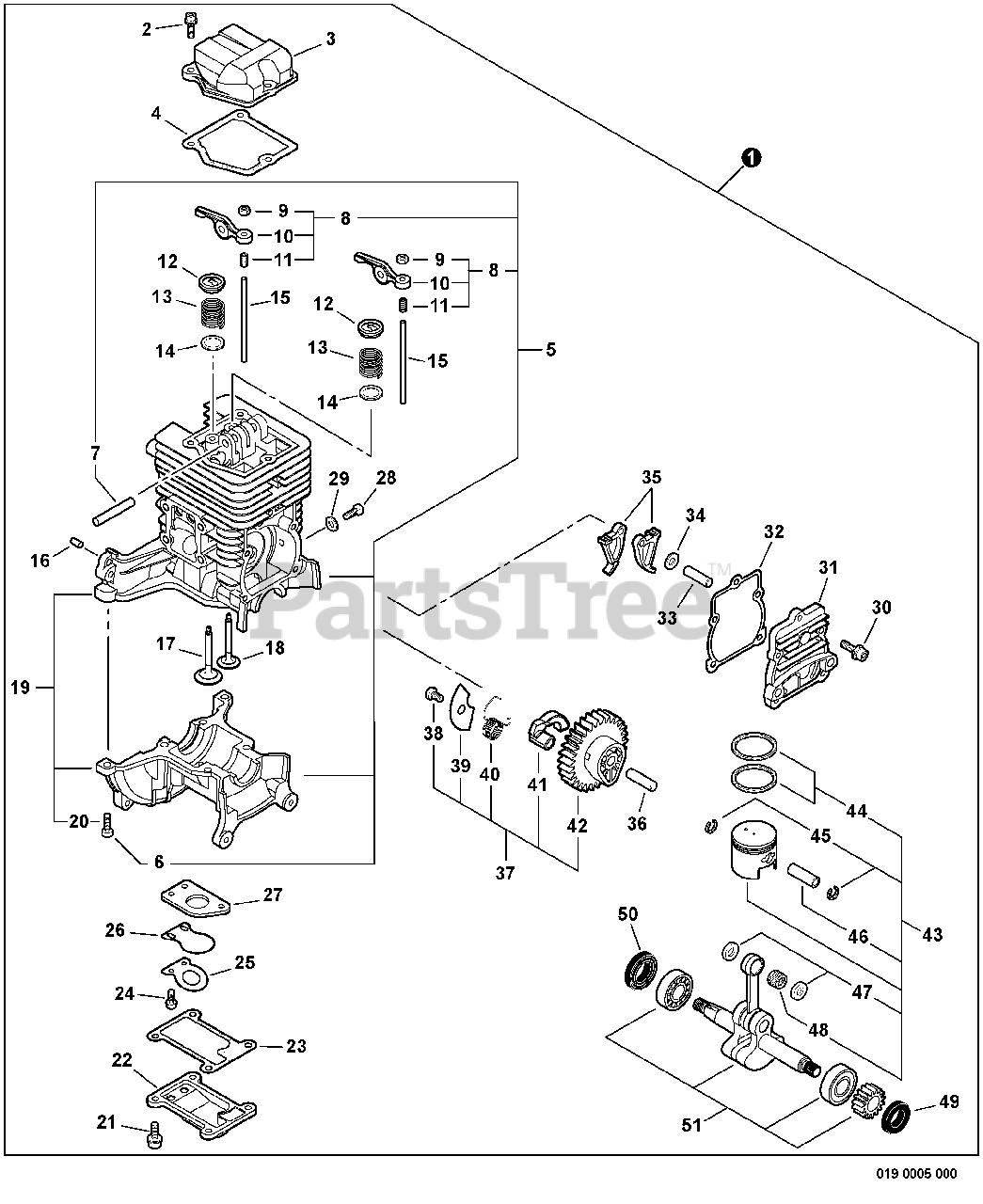

Engine, Reed Valve, Valve Train Parts Diagram

  • Title

1

Echo P021027600

SHORT BLOCK

Note: Includes ITEMS 2-51

$460.99

$

Usually ships in 2-4 days

0

2

Echo V202000350

SCREW - 4X14

$0.99

$

In Stock, Qty 7

0

3

Echo A137000020

COVER, ROCKER ARM

$9.99

$

Usually ships in 2-4 days

0

4

Echo V109000120

GASKET

$1.99

$

In Stock, only 2 left!

0

5

Echo P021034040

CYLINDER KIT

Note: Includes ITEMS 6-11

$259.99

$

Usually ships in 2-4 days

0

6

Echo 90010505016

SCREW - 5X16

$1.49

$

In Stock, Qty 6

0

7

Echo V623000040

SHAFT, ROCKER ARM

$1.99

$

Usually ships in 2-4 days

0

8

Echo A610000050

ROCKER ARM ASSY

$30.99

$

Usually ships in 2-4 days

0

9

Echo V263000230

LOCKNUT - 5

$0.99

$

Usually ships in 2-4 days

0

10

Echo A610000060

ARM, ROCKER

$27.99

$

Usually ships in 2-4 days

0

11

Echo A613000010

SCREW, ADJUST

$2.99

$

Usually ships in 2-4 days

0

12

Echo A606000040

RETAINER, VALVE

$7.99

$

Usually ships in 2-4 days

0

13

Echo A604000010

SPRING, VALVE

$1.99

$

In Stock, only 1 left!

0

14

Echo V392000030

WASHER, VALVE - 9

$0.99

$

In Stock, only 4 left!

0

15

Echo A607000010

PUSHROD
(Superseded to A607000011)

$1.99

$

In Stock, only 4 left!

0

16

Echo V622000040

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

17

Echo A603000040

VALVE, INTAKE

$15.99

$

Usually ships in 2-4 days

0

18

Echo A603000050

VALVE, EXHAUST

$19.99

$

Usually ships in 2-4 days

0

19

Echo P021027580

CRANKCASE ASSY

Note: Includes ITEM 20

$124.99

$

In Stock, only 1 left!

0

20

Echo 90010505016

SCREW - 5X16

$1.49

$

In Stock, Qty 6

0

21

Echo V202000340

SCREW - 4X12

$0.99

$

Usually ships in 2-4 days

0

22

Echo A123000000

COVER, REED VALVE

$5.99

$

Usually ships in 2-4 days

0

23

Echo V109000100

GASKET, REED VALVE

$1.99

$

In Stock, Qty 6

0

24

Echo 9134103010

SCREW - 3X10

$0.99

$

Usually ships in 2-4 days

0

25

Echo A212000040

STOP, REED VALVE

$3.49

$

Usually ships in 2-4 days

0

26

Echo A211000030

VALVE, REED

$5.49

$

Usually ships in 2-4 days

0

27

Echo A200000750

PLATE, REED BACKING

$11.99

$

Usually ships in 2-4 days

0

28

Echo V253000540

SCREW - 5

$0.99

$

Usually ships in 2-4 days

0

29

Echo V303000120

WASHER - 10

$0.99

$

Usually ships in 2-4 days

0

30

Echo V202000350

SCREW - 4X14

$0.99

$

In Stock, Qty 7

0

31

Echo A136000010

COVER, CAM GEAR
(Superseded to A136000030)

$20.99

$

Usually ships in 2-4 days

0

32

Echo V109000110

GASKET

$1.99

$

In Stock, Qty 5

0

33

Echo V623000030

SHAFT

$1.99

$

Usually ships in 2-4 days

0

34

Echo V303000220

WASHER - 5

$0.99

$

In Stock, only 3 left!

0

35

Echo A600000001

FOLLOWER, CAM

$12.99

$

In Stock, only 4 left!

0

36

Echo V623000030

SHAFT

$1.99

$

Usually ships in 2-4 days

0

37

Echo A063000000

CAM GEAR ASSY

Note: Includes ITEMS 38-42

$17.99

$

In Stock, only 1 left!

0

38

Echo 9144904006

SCREW - 4X6 -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

39

Echo C603000240

PLATE, COVER

$0.99

$

In Stock, only 1 left!

0

40

Echo V452000610

SPRING

$1.99

$

Usually ships in 2-4 days

0

41

Echo A146000000

WEIGHT

$1.99

$

Usually ships in 2-4 days

0

42

Echo A622000000

GEAR, CAM

$9.99

$

In Stock, only 2 left!

0

43

Echo P021033930

PISTON KIT

Note: Includes ITEMS 44-48

$61.99

$

In Stock, only 1 left!

0

44

Echo A101000390

RING, PISTON

$4.49

$

Usually ships in 2-4 days

0

45

Echo V580000090

RING, RETAINING

$5.49

$

In Stock, only 2 left!

0

46

Echo V607000040

PIN, PISTON

$4.49

$

Usually ships in 2-4 days

0

47

Echo V392000020

SPACER - 9

$2.49

$

In Stock, Qty 10

0

48

Echo V554000010

BEARING, NEEDLE

$6.49

$

In Stock, only 2 left!

0

49

Echo V505000110

SEAL, OIL - 12
(Superseded to V505000020)

$6.49

$

Usually ships in 2-4 days

0

50

Echo V505000120

SEAL, OIL

$26.99

$

In Stock, only 1 left!

0

51

Echo A011000630

CRANKSHAFT ASSY

$119.99

$

Usually ships in 2-4 days

0
