EB 252 - Shindaiwa Handheld Blower (SN: P47915001001 - P47915999999) FUEL SYSTEM Parts Diagram

Handheld Blower

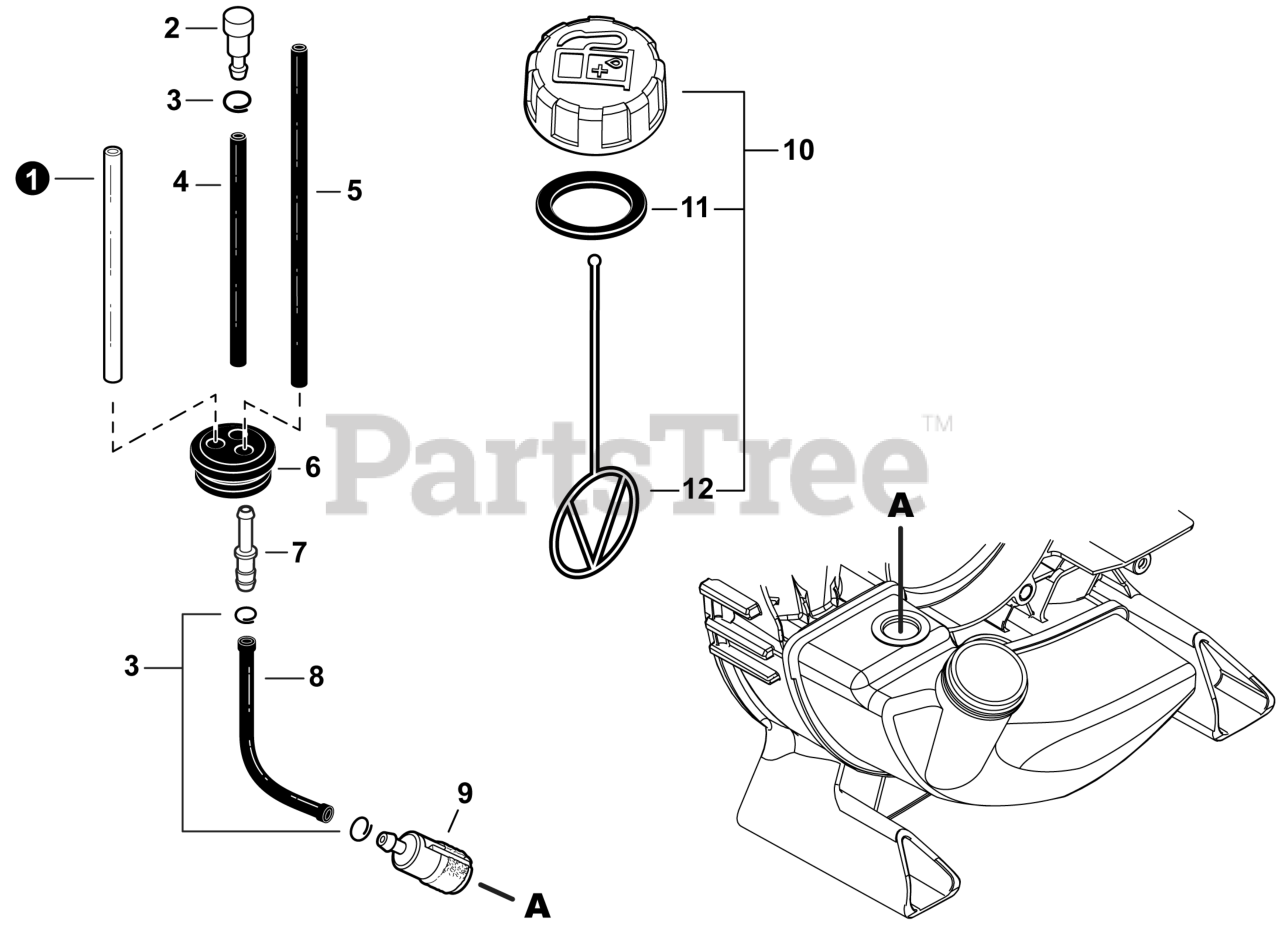

FUEL SYSTEM Parts Diagram

  • Title
1

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

$2.49

$

In Stock, only 3 left!

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 18

0

4

Echo V471005251

PIPE, FUEL 3×5×60 BLACK

$1.49

$

Usually ships in 2-4 days

0

5

Echo V471005640

PIPE, FUEL 3×5.5×80 BLACK

$3.49

$

Usually ships in 2-4 days

0

6

Echo 13211546730

GROMMET, FUEL Ø5

$1.99

$

In Stock, Qty 20+

0

7

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V471003731

PIPE, FUEL 3×5×140 BLACK

$1.49

$

In Stock, only 3 left!

0

9

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

10

Echo P021013971

CAP ASSY, FUEL

Note: Includes items 11-12

$6.49

$

Usually ships in 2-4 days

0

11

Echo V107000190

GASKET, FUEL CAP

$1.49

$

In Stock, Qty 20+

0

12

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0
