EB 252 - Shindaiwa Handheld Blower (SN: P47915001001 - P47915999999) CARBURETOR Parts Diagram

Handheld Blower

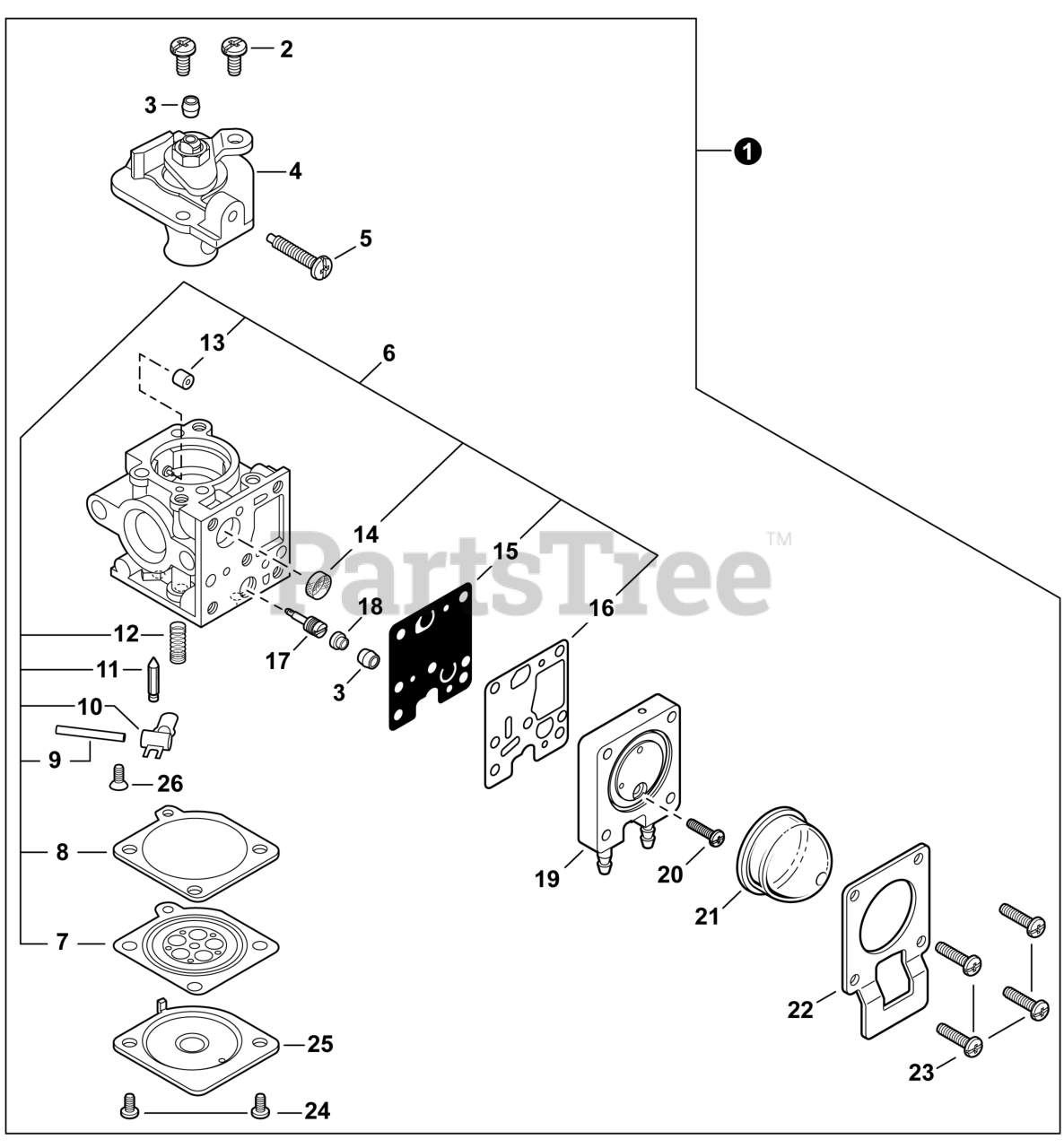

CARBURETOR Parts Diagram

  • Title

1

Echo A021004700

CARBURETOR RE-110147B

Note: Includes items 2-26

$43.99

$

In Stock, Qty 5

0

2

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

3

Echo P005001270

PLUG

$1.49

$

In Stock, Qty 20+

0

4

Echo P005004040

COVER ASSY, ROTOR

$

$

Not available

5

Echo P005000100

SCREW, IDLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

6

Echo P005003750

REPAIR KIT, CARBURETOR

Note: Includes items 7-16

$16.99

$

In Stock, only 4 left!

0

7

DIAPHRAGM, METERING

$

$

Not available

8

GASKET, METERING DIAPHRAGM

$

$

Not available

9

PIN, METERING LEVER

$

$

Not available

10

LEVER, METERING

$

$

Not available

11

VALVE, INLET NEEDLE

$

$

Not available

12

SPRING, METERING LEVER

$

$

Not available

13

GUIDE, ROLLER

$

$

Not available

14

SCREEN, FUEL INLET

$

$

Not available

15

DIAPHRAGM, PUMP

$

$

Not available

16

GASKET, PUMP

$

$

Not available

17

Echo P005004050

NEEDLE, MIXTURE

$9.49

$

Usually ships in 2-4 days

0

18

Echo P005001250

CAP, LIMITER

$1.49

$

Usually ships in 2-4 days

0

19

Echo P005004240

BODY ASSY, PURGE

$29.99

$

Usually ships in 2-4 days

0

20

Echo P005000270

SCREW

$1.49

$

In Stock, Qty 20+

0

21

Echo P005003110

BULB, PURGE

$6.99

$

In Stock, Qty 14

0

22

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

23

Echo P005001900

SCREW

$0.99

$

In Stock, Qty 20+

0

24

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

25

Echo 12534252130

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

26

Echo 12533942030

SCREW

$0.99

$

In Stock, Qty 12

0
