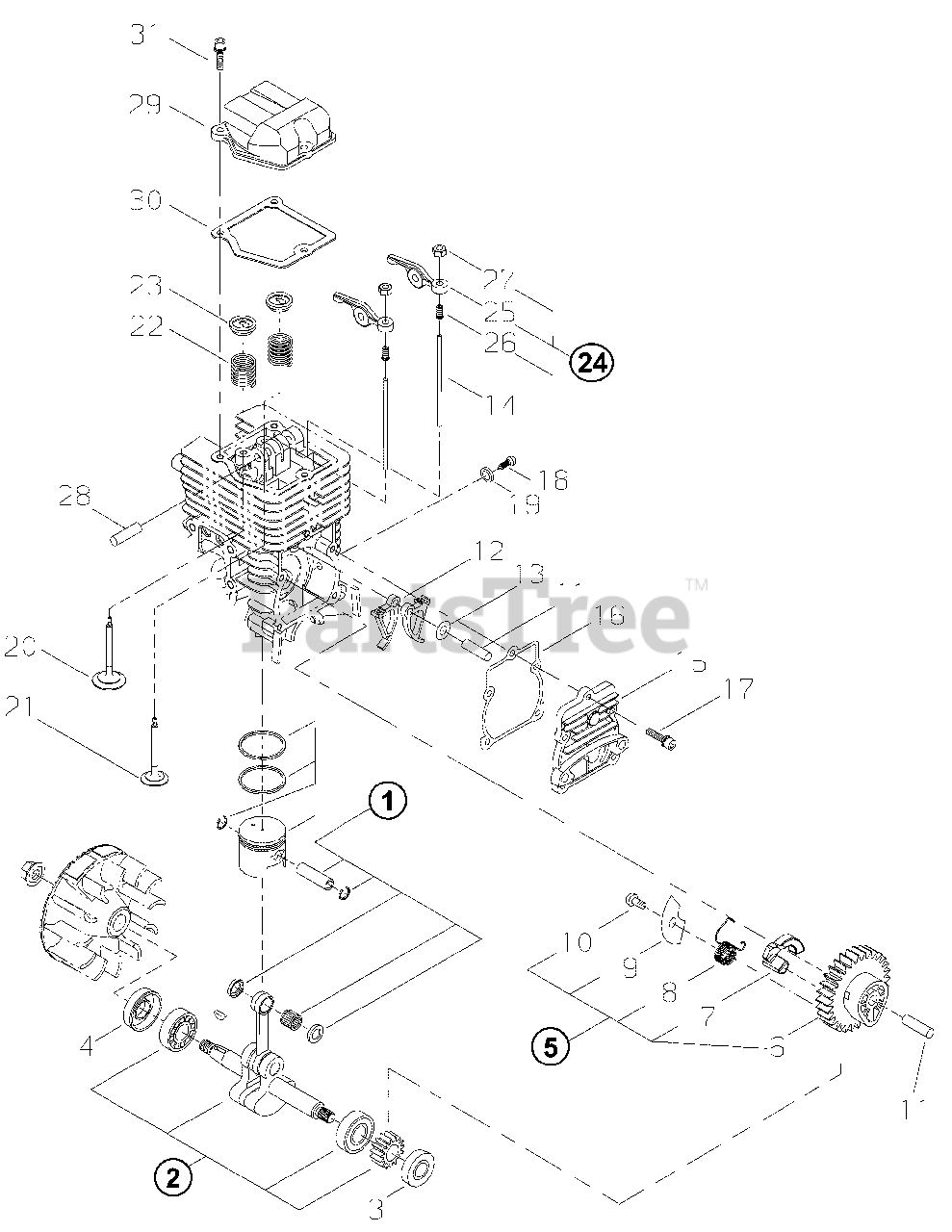

EB 2510 - Shindaiwa Handheld Blower Cam Gear, Crankshaft, Piston Parts Diagram

Handheld Blower

Cam Gear, Crankshaft, Piston Parts Diagram

  • Title

1

Echo 62902-41310

PISTON KIT
(Superseded to P021033930)

$61.99

$

In Stock, only 1 left!

0

2

Echo 62902-42020

CRANKSHAFT ASSY
(Superseded to A011000630)

$119.99

$

Usually ships in 2-4 days

0

3

Echo 62901-42260

SEAL, OIL - 12
(Superseded to V505000020)

$6.49

$

In Stock, only 1 left!

0

4

Echo 62901-42270

SEAL, OIL - 12
(Superseded to V505000120)

$26.99

$

In Stock, only 1 left!

0

5

Echo 62905-43010

CAM GEAR ASSY
(Superseded to 62905-43011)

$17.99

$

In Stock, only 1 left!

0

6

Echo 62902-43310

GEAR, CAM
(Superseded to A622000000)

$9.99

$

In Stock, only 2 left!

0

7

Echo 62907-43120

WEIGHT
(Superseded to A146000000)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 1752008900

SPRING
(Superseded to V452000610)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 62905-43130

PLATE
(Superseded to 62905-43131)

$0.99

$

In Stock, only 1 left!

0

10

Echo 01280-04062

SCREW - 4X6 -- TAPPING
(Superseded to 9144904006)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 12492-50290

PIN - LOCATING
(Superseded to V623000030)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 62907-43210

FOLLOWER, CAM
(Superseded to A600000000)

$12.99

$

In Stock, only 4 left!

0

13

Echo 11620-10000

WASHER - 5
(Superseded to V303000220)

$0.99

$

In Stock, only 3 left!

0

14

Echo 62908-43220

PUSHROD
(Superseded to A607000010)

$1.99

$

In Stock, only 4 left!

0

15

Echo 62901-43330

COVER, CAM GEAR
(Superseded to A136000010)

$20.99

$

Usually ships in 2-4 days

0

16

Echo 62901-43240

GASKET
(Superseded to V109000110)

$1.99

$

In Stock, Qty 5

0

17

Echo 11022-04140

SCREW - 4X14
(Superseded to V202000350)

$0.99

$

In Stock, Qty 7

0

18

Echo 62901-43310

SCREW - 5
(Superseded to V253000540)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 15401-10028

WASHER
(Superseded to V303000120)

$0.99

$

Usually ships in 2-4 days

0

20

Echo 62902-44110

VALVE, INTAKE
(Superseded to 62902-44111)

$15.99

$

Usually ships in 2-4 days

0

21

Echo 62902-44120

VALVE, EXHAUST
(Superseded to 62902-44121)

$19.99

$

Usually ships in 2-4 days

0

22

Echo 62901-44130

SPRING, VALVE
(Superseded to A604000010)

$1.99

$

In Stock, only 1 left!

0

23

Echo 62901-44140

VALVE RETAINER ASSY
(Superseded to 62908-44140)

$7.99

$

Usually ships in 2-4 days

0

24

Echo 62907-44010

ROCKER ARM ASSY
(Superseded to A610000050)

$30.99

$

Usually ships in 2-4 days

0

25

Echo 62901-44210

ARM, ROCKER
(Superseded to A610000060)

$27.99

$

Usually ships in 2-4 days

0

26

Echo 62907-44220

SCREW, ADJUST
(Superseded to A613000010)

$2.99

$

Usually ships in 2-4 days

0

27

Echo 62901-44231

LOCKNUT, ADJUSTER
(Superseded to V263000230)

$0.99

$

Usually ships in 2-4 days

0

28

Echo 12492-50310

SHAFT, ROCKER ARM - 5X31.8
(Superseded to V623000040)

$1.99

$

Usually ships in 2-4 days

0

29

Echo 62901-44241

COVER, ROCKER ARM
(Superseded to A137000020)

$9.99

$

Usually ships in 2-4 days

0

30

Echo 62901-44250

GASKET
(Superseded to V109000120)

$1.99

$

In Stock, only 2 left!

0

31

Echo 11022-04120

SCREW - 4X12
(Superseded to V202000340)

$0.99

$

Usually ships in 2-4 days

0
